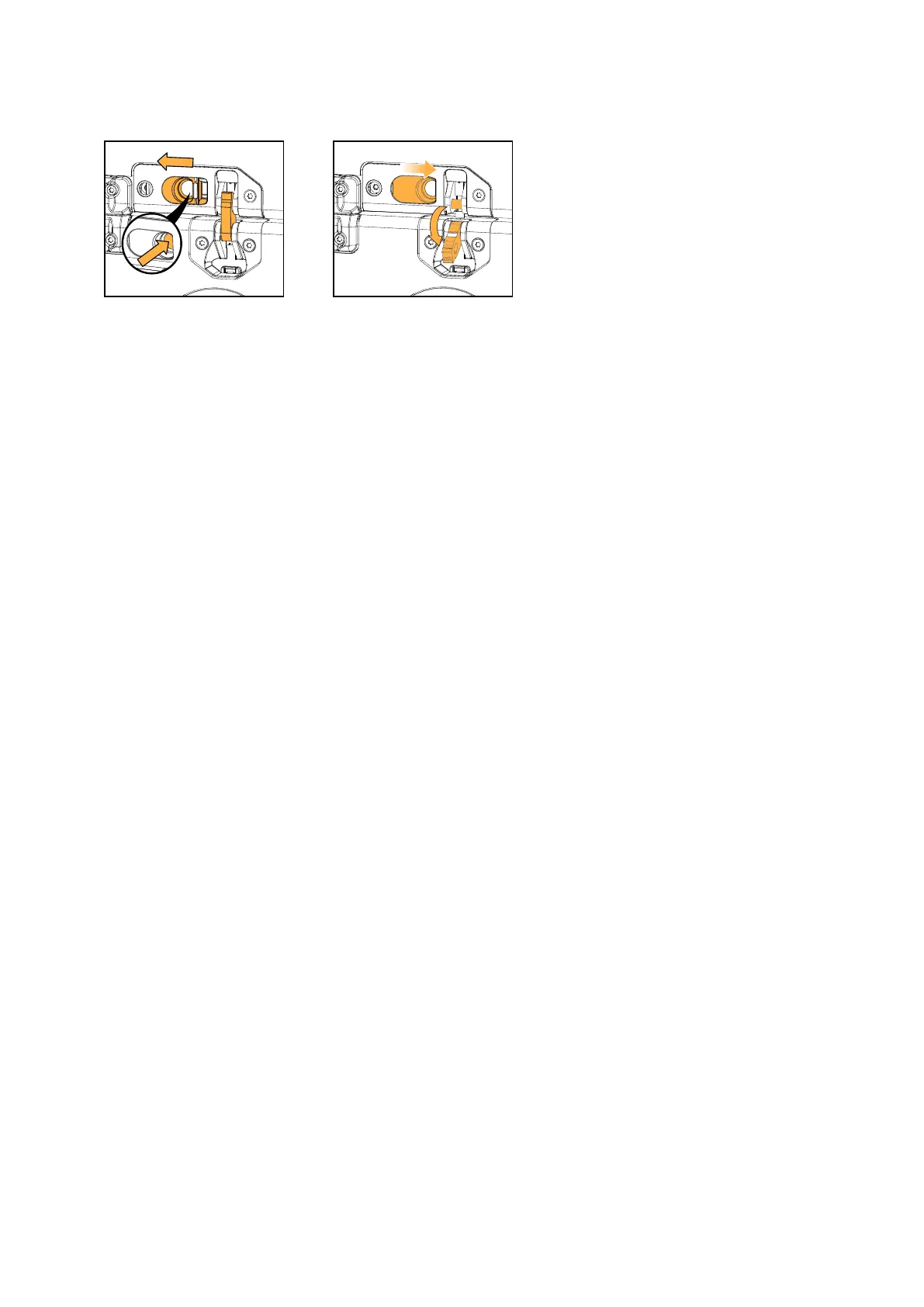

Inspection and preventive maintenance
2.
Hold the top enclosure by the handles and shake the assembly
.
The two enclosures remain attached.
3.
Unlock the rigging system on both sides.
SHLAK!
4.
Switch the enclosures and repeat the procedure.
A10
owner's
manual
(EN)
version
1.1
65
64
66
