Rigging procedures

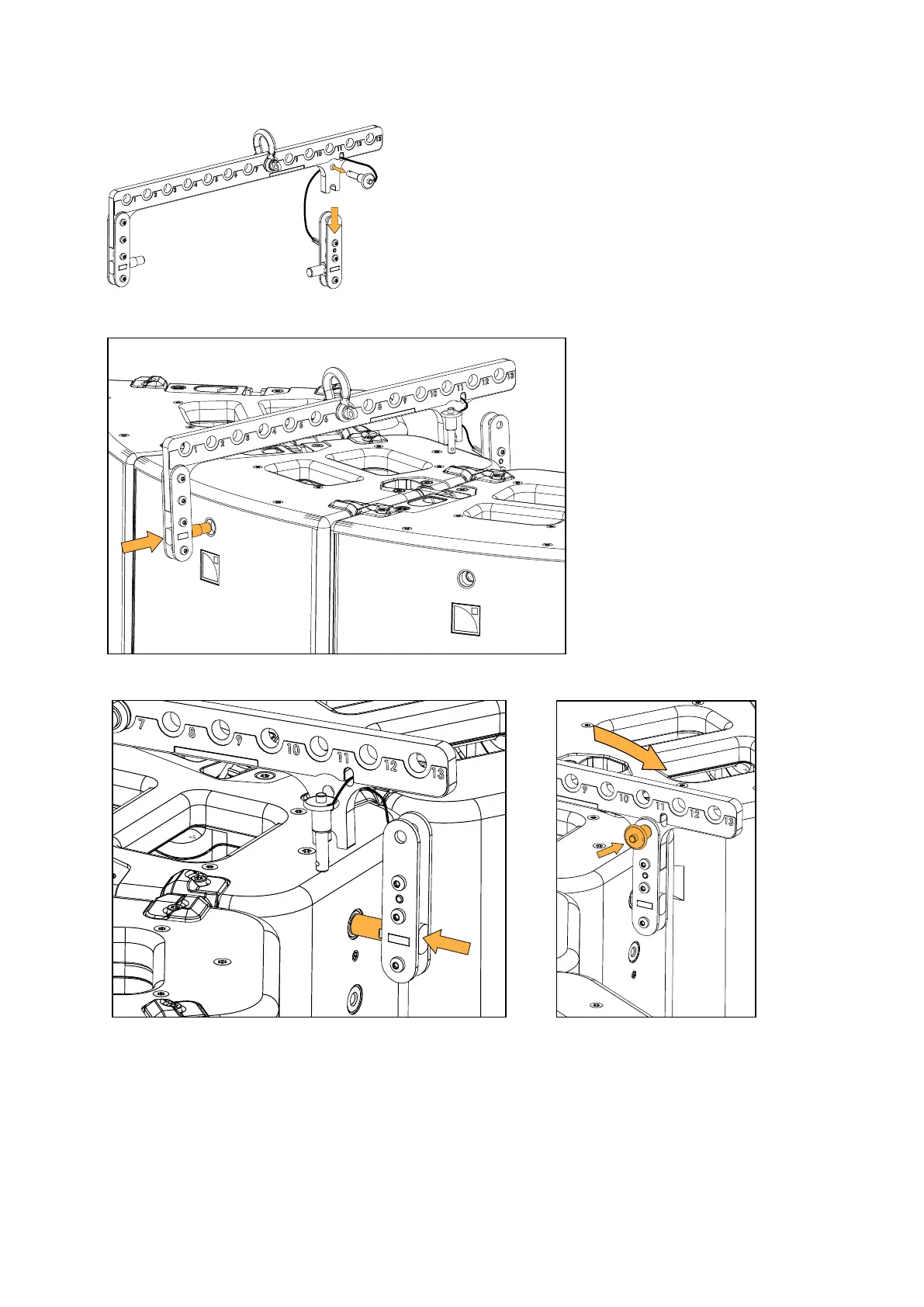

3. Secure the A10-LIFT bars on the array.
a) Disconnect the ball-locking pin at the rear of A10-LIFT.
b) Insert the stub at the front of the enclosure.
c) Insert the stub at the rear and secure the ball-locking pin.
CLICK!
