39

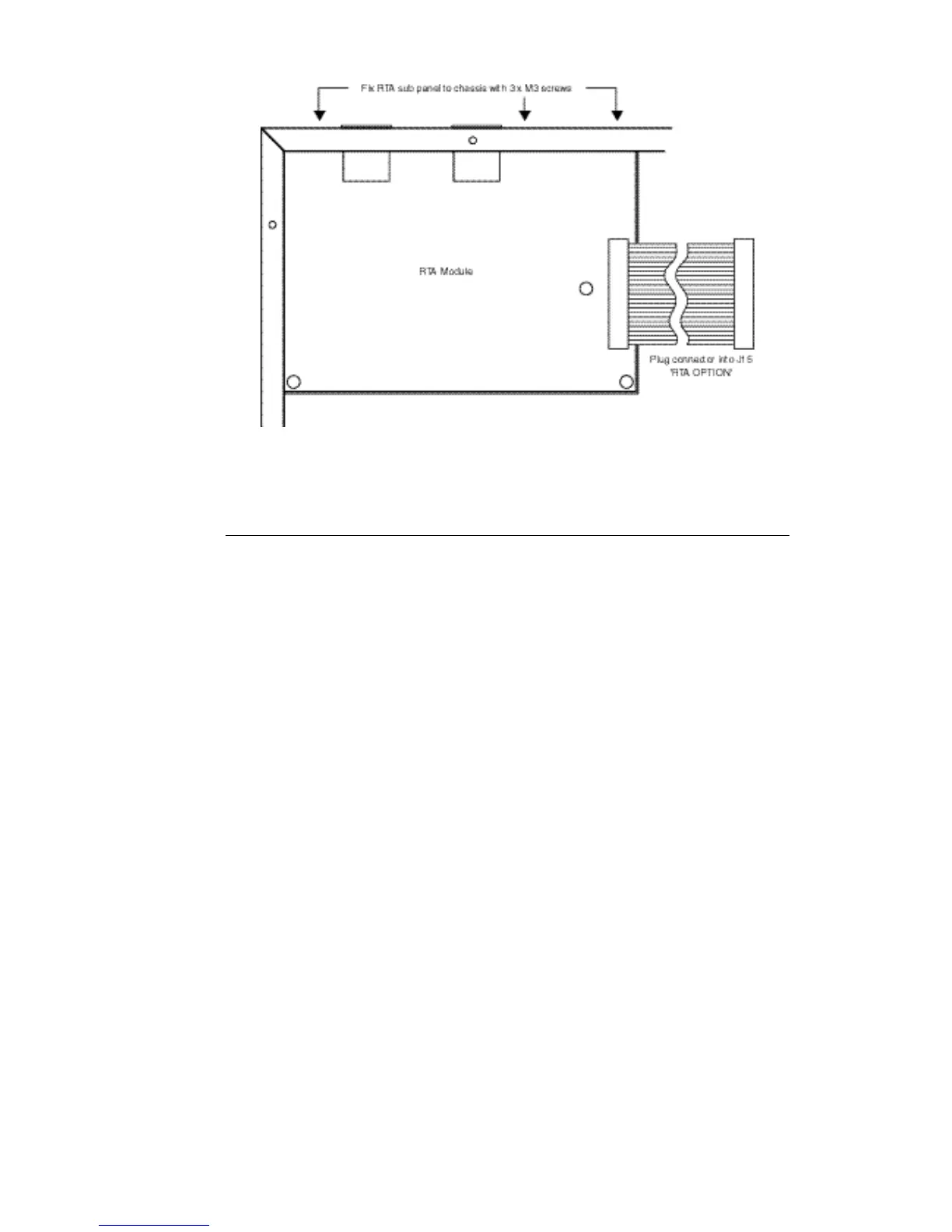

Fixings for the RTA module.
10.0 DIGITAL I/O OPTION
The Digital I/O module provides the DPF3103 with 24 bit AES/EBU and S/P DIF
format digital inputs and outputs. With this module fitted the DPF3103 can have either
analogue or digital inputs, however both analogue and digital outputs are available.
Output sample rate can be set at 44.1kHz, 48kHz or 96kHz, or Synchronised to an
external Word Clock or the Digital Input.
