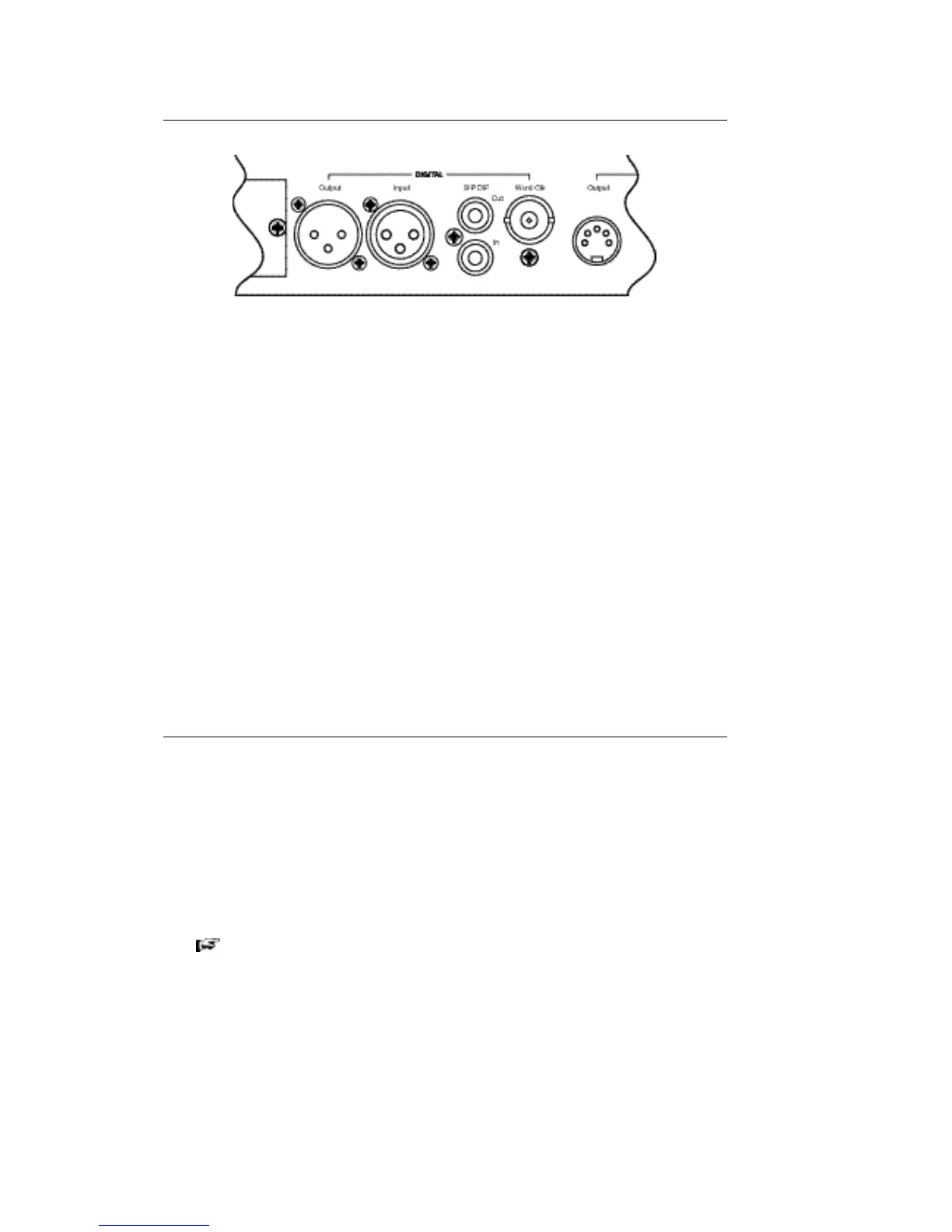

10.1 EXTERNAL CONNECTIONS
OUTPUT
AES/EBU format balanced digital output on 3 pin XLR (male).
INPUT
AES/EBU standard format balanced digital input on 3 pin XLR (female).
S/P DIF In
Sony/Phillips format digital input on RCA Phono connector.
S/P DIF Out
Sony/Phillips format digital output on RCA Phono connector.
WORD CLK
Word clock input on BNC connector.
10.2 OPERATION
Settings for the Digital I/O option are accessed through the UTILITY menu. With the
module fitted there are two additional items on the UTILITY menu.
SELECTING AND ADJUSTING PARAMETERS
Select the parameter with the
 buttons and adjust each in turn with the
DATA WHEEL. Alternatively you can use the DATA WHEEL to both select
parameters and adjust values.
Please note that adjusting any of the Parameters affect both channels
