2. Description of the machine
/PUF5IFUFSNTVTFEJOUIJTEFTDSJQUJPOXJMMDPNNPOMZCFVTFEUISPVHIPVUUIFGPMMPXJOHQBHFT
(100 E)

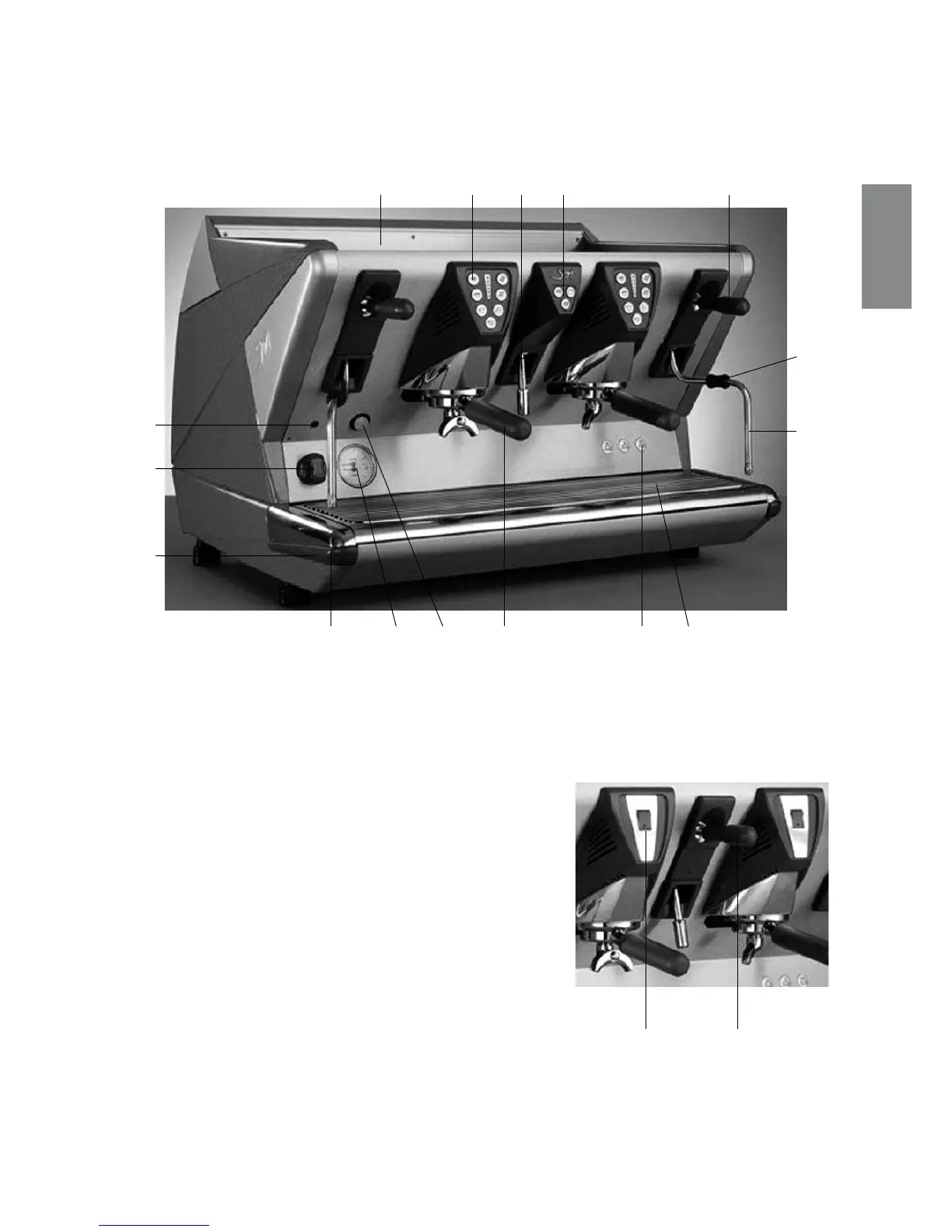

LEGENDA:
1) Main switch
2) Main switch indicator light
3) Double-scale pressure gauge
4) Cup heater switch (optional)
5) Espresso coffee serving unit
6) Filter cup with handle
7) Serving unit push button panel (100 E)
8) Push button panel for hot water serving valve (100 E)
9) Hot water spout
10) Lever of tap for drawing steam
11) Steam spout
12) Burn protection sheath
13) Foot
14) Coffee serving button (100 S)
15) Lever of tap for drawing hot water (100 S)
16) Tray and cup support grill
17) Electronic level
18) Upper cup support tray
19) Rubber bumper
18 798 10
12
11
19 3 6
14
17 164
2
1
13
15
