Laars FTCF140 - Page 11

The FT Series Floor Standing, Combination Boiler
Page 11

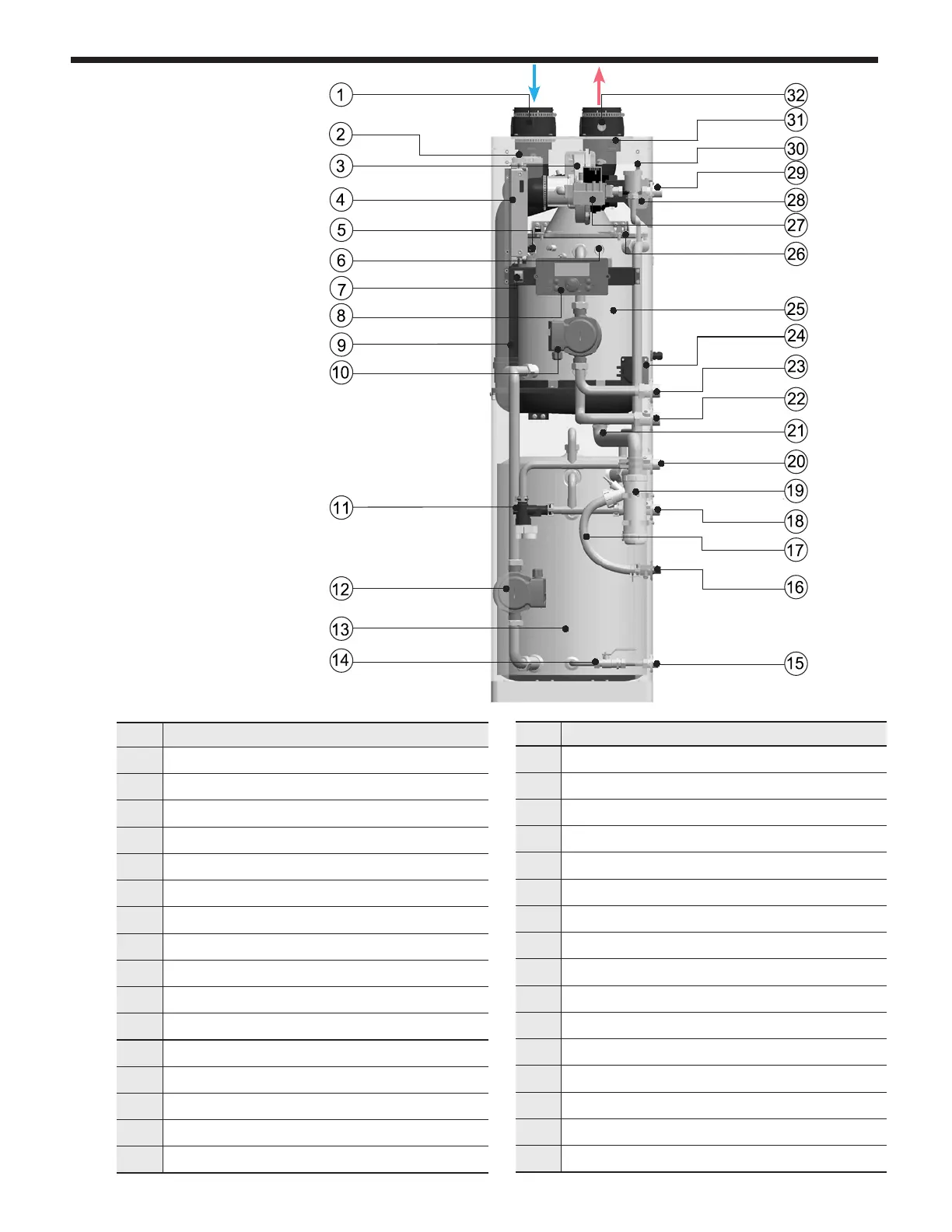

NO Name of Component
1
Air Inlet
2
Air Pressure Sensor
3
Blower
4
PCB Bracket
5
Sight Glass
6
Flame Detection Window
7
Manual Switch
8
Display Control
9
Air Intake Pipe
10
Recirculation Pump (CH)
11
Mixing Valve
12
Recirculation Pump (DHW)
13
DHW Tank Assembly
14
Water Discharge Valve
15
Water Discharge Adapter
16
Condensate Trap Adapter
NO Name of Component
17
Condensate Drain Hose
18
DHW Inlet Adapter
19
Condensate Trap
20
DHW Outlet Adapter
21
Condensate Heat Exchanger Hose
22
CH Return Connection
23
CH Supply Connection
24
Air Pressure Switch
25
Heat Exchanger
26
Igniter
27
Gas Valve
28
Ignition Transformer
29
Gas Inlet Connection
30
Air Vent (air eliminator)
31
Exhaust Pipe
32
Exhaust Vent
FTCF199
Note: The greatest installation
di󰀨erence between the
FTCF140 and FTCF199,
other than general output
capability (BTU’s), is that the
air inlet and exhaust vent are
opposite.
