Laars FTCF140 - Dimensions

Page 8

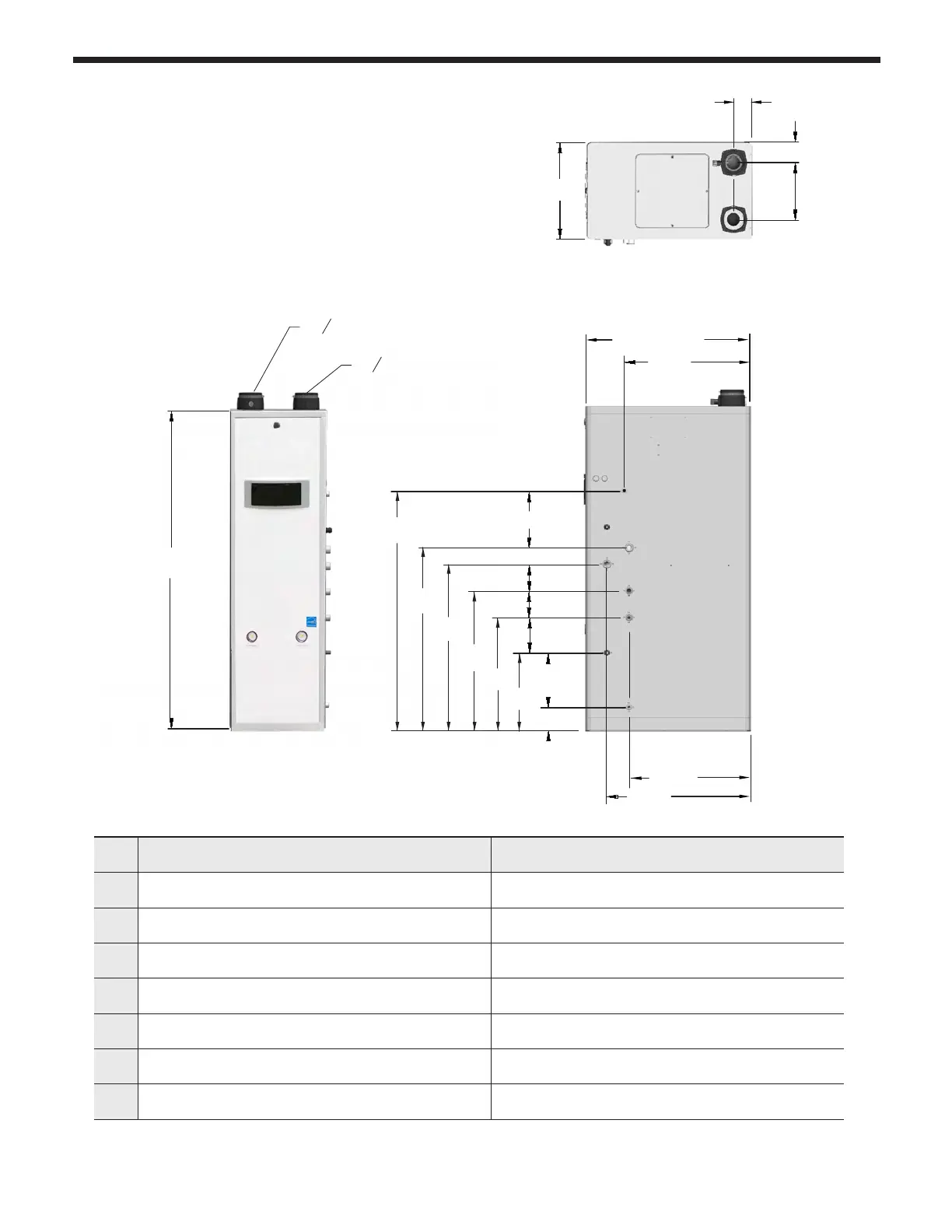

2.3 Dimensions
Description Diameter
A Gas Connection 3/4" NPT
B ‘CH supply’ Connection 1" NPT
C ‘CH return’ Connection 1" NPT
D ‘DHW outlet’ Connection 3/4" NPT
E ‘DHW inlet’ Connection 3/4" NPT
F Condensate 1/2" NPT
G Drain 1/2" NPT
52.4" 133 cm
15.7" 40 cm
3.3" 8 cm
9.2" 23 cm
68 cm
9.3"
2.7"
4.3"
4.3"
5.8"
9.2"
3.7"
12.9"
18.7"
23"
27.3"
30"
39.3"
3.0" 7.6 cm
20.5"
23.3"
26.7"
19.7"
A
B
C
D
E
F
G
TOP
SIDE
FRONT
3” O EXHAUST VENT
GAS CONNECTION
HYDRONIC SUPPLY
HYDRONIC RETURN
DHW
CONDENSATE
DRAIN ADAPTER
OUTLET
INLET
DHW
3” O AIR INLET
FTCF140
