The FT Series Floor Standing, Combination Boiler
Page 33
Combination boiler must be installed downstream of the gas meter for adequate gas supply.
Combination boiler gas connection pipe not less than a 1/2” (FTCF140) or 3/4” (FTCF199).

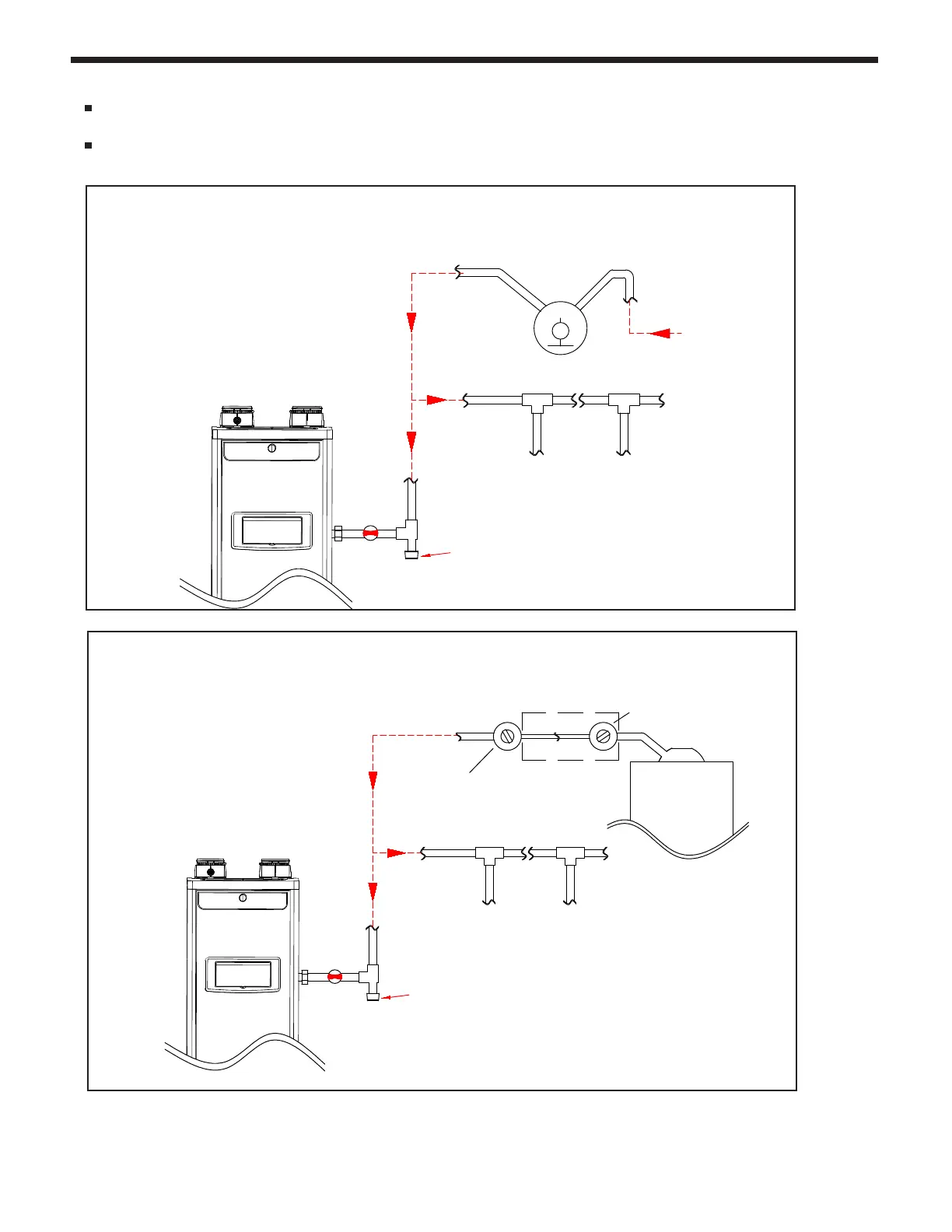

Suggested Propane Gas (LP) Layout
Suggested Natural Gas (NG) Layout
Sediment Trap
Other appliance
Gas meter
G
Capacity : Not less than 'total capacity of connected appliances'
AUTODESK � � � � � � � � � �
AUTODESK � � � � � � � � � �
AUTODESK � � � � � � � � � �
AUTODESK � � � � � � � � � �
Gas Regulator (21bar)
Gas Regulator (supply press 12")
Sediment Trap
Other appliance
Capacity : not less than 'total capacity of connected appliances'
LP GAS TANK
1/2" pipe
AUTODESK � � � � � � � � � �
AUTODESK � � � � � � � � � �
AUTODESK � � � � � � � � � �
AUTODESK � � � � � � � � � �
3/4"
