16
D
E
F

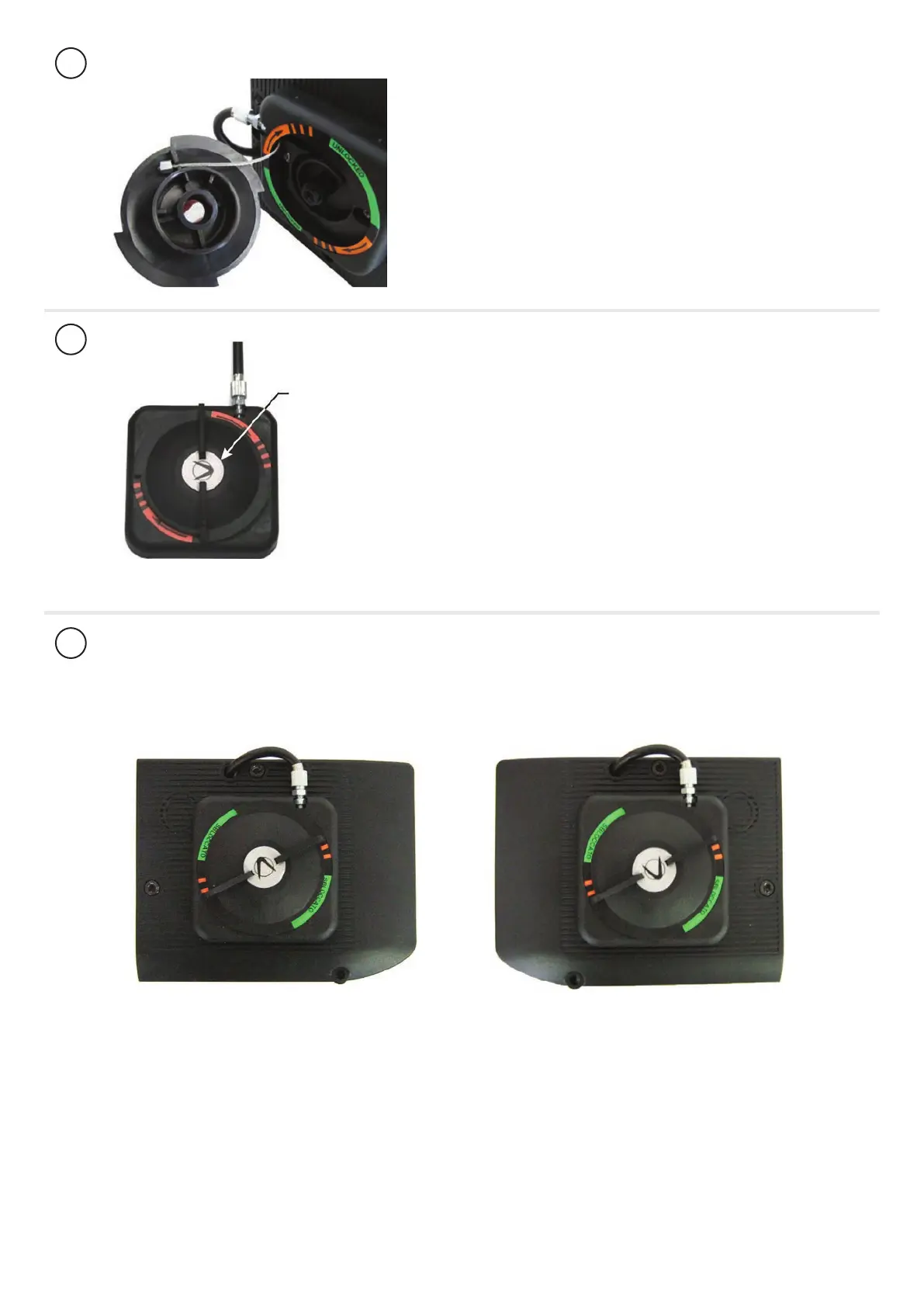

Apply the adhesive label as shown in the gure, taking as a
reference the four black bands on the label that must be positioned
in correspondence of the 4 cardinal points.
Insert the steel cable end into the release handle as shown in the
gure and fasten the handle to the bottom with the special screw.
Apply the screw cover label on the setscrew.
By moving the release handle to UNRELEASED position, only the
orange part of the label with the black arrows must be visible.
Insert the exible sheath into the special hole on the side panel.
Use the hole which is furthest from the register, to ensure that the sheath retains a wide enough bending radius.
LEFT SIDE PANEL RIGHT SIDE PANEL
SCREW COVER
LABELS
