PL1220 Owner’s Manual
40

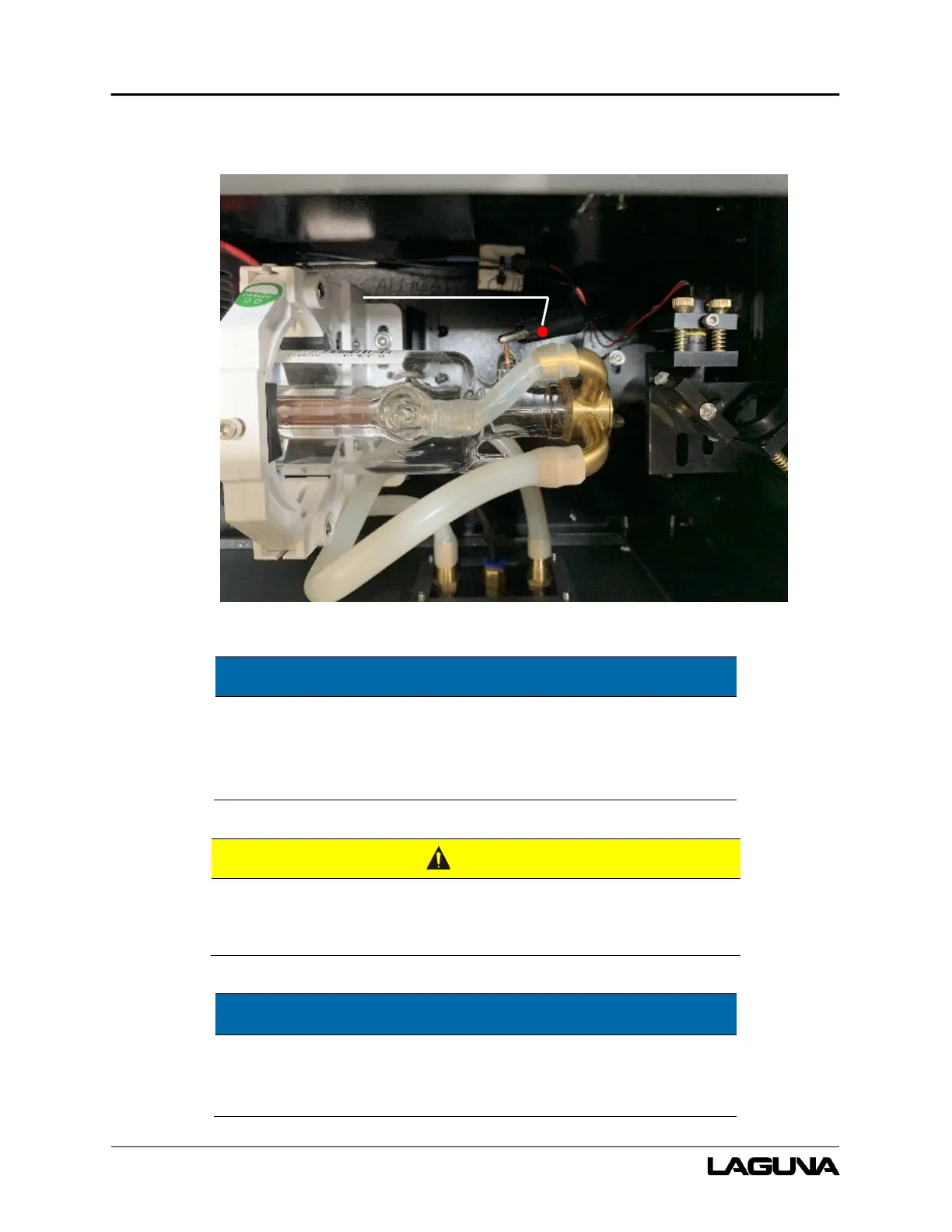

Figure 7-4 depicts the water tubes connected to the outlet water port. The anode wire connects to
the pin with the alligator clamp.
The chiller, air pump, exhaust blower, and software need to
be properly installed prior to running and testing the function
of the laser tube.
DO NOT test the laser tube or pulse the laser machine until the
setup indicates this action.
NOTE
The water should be flowing in the tube in the same direction
that the laser is firing (i.e., towards the first mirror).
Figure 7-4: Anode Side (Right)
