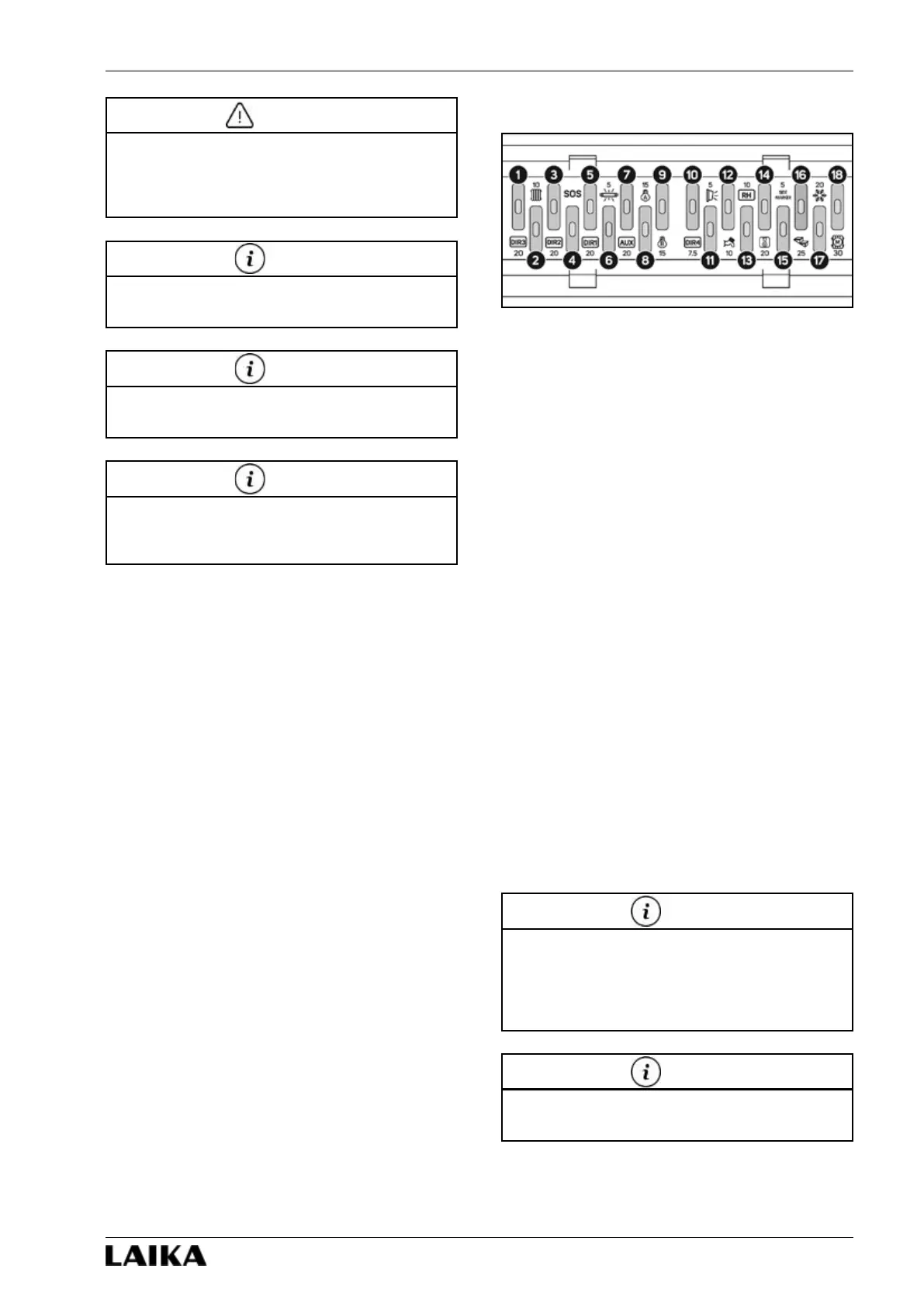

10.1 Ecovip and Kreos series
1) 20 A fuse - DIR3 - Rear electric bed.
2) 10 A fuse - Heating.
3) 20 A fuse - DIR2 - Front electric bed.
4) SOS - Insert a fuse – of any amperage – to power
the main appliances directly from the auxiliary
battery and disabling the electronic controls. The
yellow LED indicates that the SOS function is
activated.
5) 20 A fuse - DIR1 - Satellite antenna.
6) 5 A fuse - Night lights (Ecovip) / Garage lights
(Kreos).
7) 20 A fuse - AUX output.
8) 15 A fuse - Lights group A.
9) 15 A fuse - Lights group B.
10) 7.5 A fuse - DIR4.
11) 5 A fuse - Awning light.
12) 10 A fuse - Water pump.
13) 10 A fuse - RH output.
14) 20 A fuse - 12 V sockets.
15) 5 A fuse - Side-marker lights.
16) 25 A fuse - Electric entrance step.
17) 20 A fuse - Fridge 12 V power supply, it turns off
automatically when engine is off.
18) 30 A fuse - Heating motor.
For information on the connections of the control
unit, refer to the manufacturer’s manual.
NOTE
Some fuses are related to optional devices, or are
not available on some models.
NOTE
Quantify the loads with skilled personnel before
installing electric optional equipment other
than those of the standard outfit and carefully
determine the type of connection to be made.
WARNING
On the Ecovip series – except for DS models – the
control unit is reached from the outside through a
door located on the left side wall, front area. On
the Ecovip DS models the control unit is installed
inside the settee behind the right cabin seat.
NOTE
On the Kreos series the control unit is reached
from the garage, through a door.
NOTE
If the vehicle is equipped with a diesel fuelled
Truma heating (optional), its fuse will be 20 A
instead of 10 A.
