USER GUIDE
76
WASHROOM

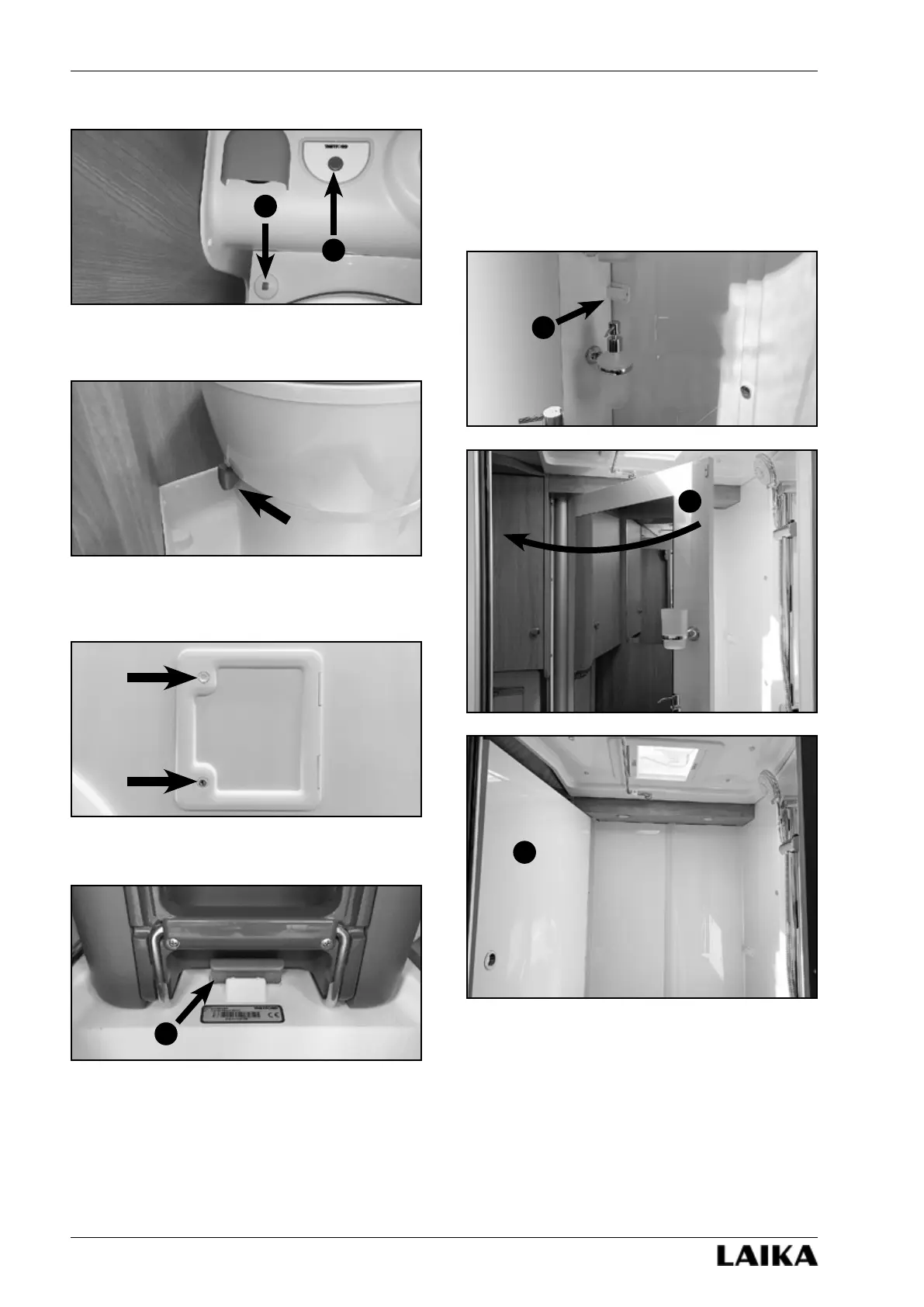

B type toilet
a) Button for flushing and draining into the tank.
b) Full tank warning light.
Blade opening and closing handle. To extract the
tank first close the blade, pushing the handle in the
direction indicated by the arrow.
Outside lid which allows access to the tank. To open,
press the two buttons simultaneously.
Removable tank (cassette). To remove the tank, pull
up the handle (c).
16.2 Shower cab (Ecovip L 3010,
L 3019, H 3110, H 3119)
The Ecovip L 3010, L 3019, H 3110, H 3119 models
have been provided with a system that allows them
to have a separated shower cabin according to the
following instructions: release the catch (a) (press to
unlock) and rotate the panel (b).
a
b
c
a
b
b
