Lamtec F200K User Manual

45
9 Appendix
9.2.2 F200K2 ... Ex Compact Flame Detector (Hazardous Area 1, 21)
Ex db IIC T6, T5 Gb, Ex tb IIIC T80°C Db (IECEx EPS 14.0042X)

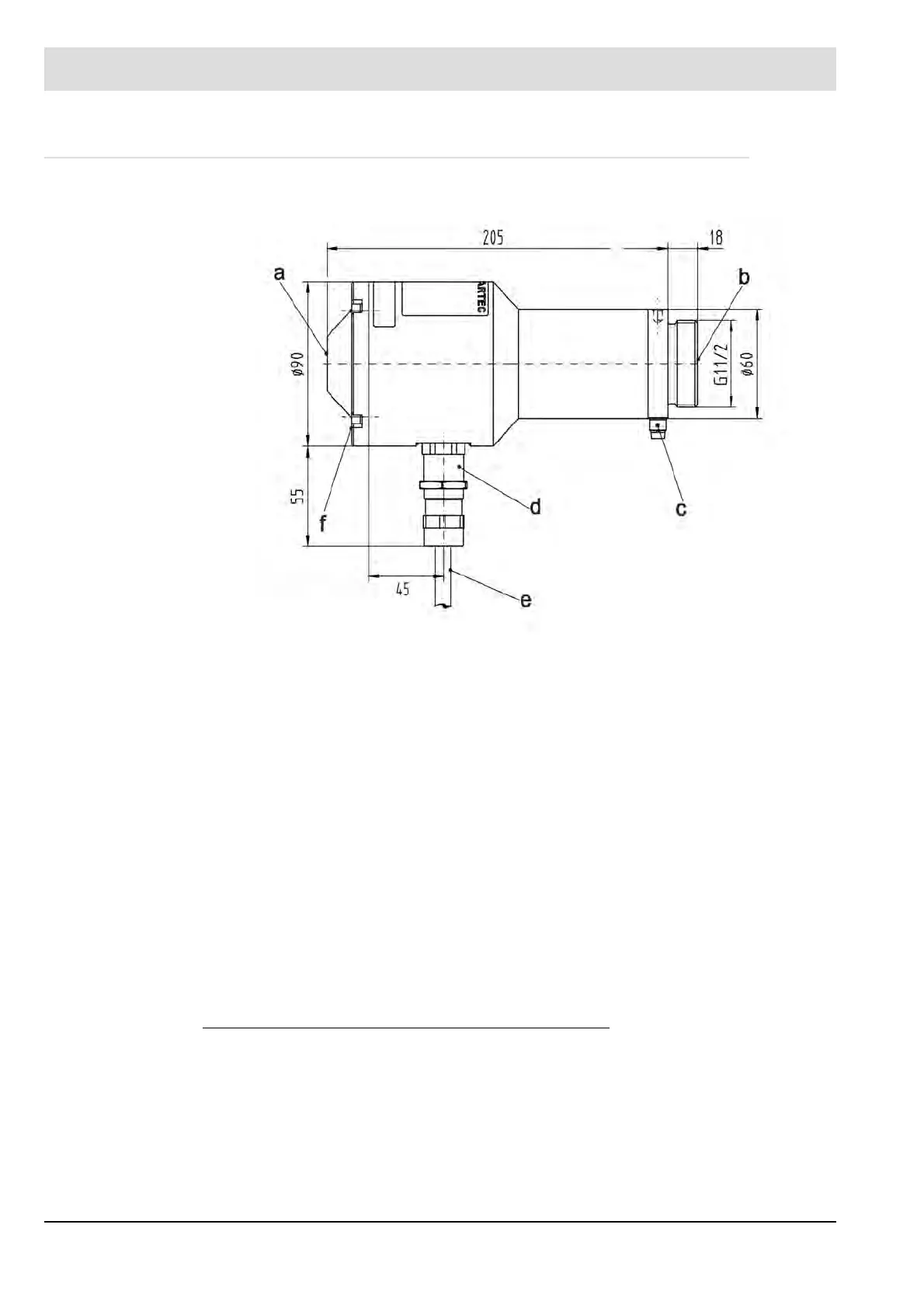

Fig. 9-6 Compact flame detector F200K2 Ex, IP 66
Material: Corrosion-resistant aluminium EN AW 6082 (seawater 2*; atmospheric condition 1*),
anodised or stainless steel
weight approx. 1,8 kg/3,96 lb
* Comparative evaluation from 1 (very good) to 6 (unsuitable)
a Indication of operating state
b Light entry port
Coupling fixation: Cylindrical pipe Thread DIN ISO 228/1
c Cylindrical bolt DIN 84, cable cross section 2.5 ... 6 mm
2
/14 AWG ... 11 AWG
d Cable entry (not detachable!), with or without conduit connection 1/2" BSPP
e Connection cable 3 m long/9,84 ft, Assignment same as F200K
f 4x cylindrical bolts M5 - ISO 4762 (DIN 912)
Order no. F200K ... Ex:
F200K2 IR-1 Ex
F200K2 UV-2 Ex
F200K2 UV-3 Ex
659R6102
659R6106
659R6105
