10 Accessories
10.2 Weather Shield
The weather shield is intended to protect the electronic parts in outdoor installations. Should
the cover be removed for the purposes of commissioning or service in inclement weather con-
ditions, precautions should be taken to provide additional protection from the elements to en-
sure personal and equipment safety are maintained. The weather shield also provides sun
shade protection and improves the visibility of the indicators.

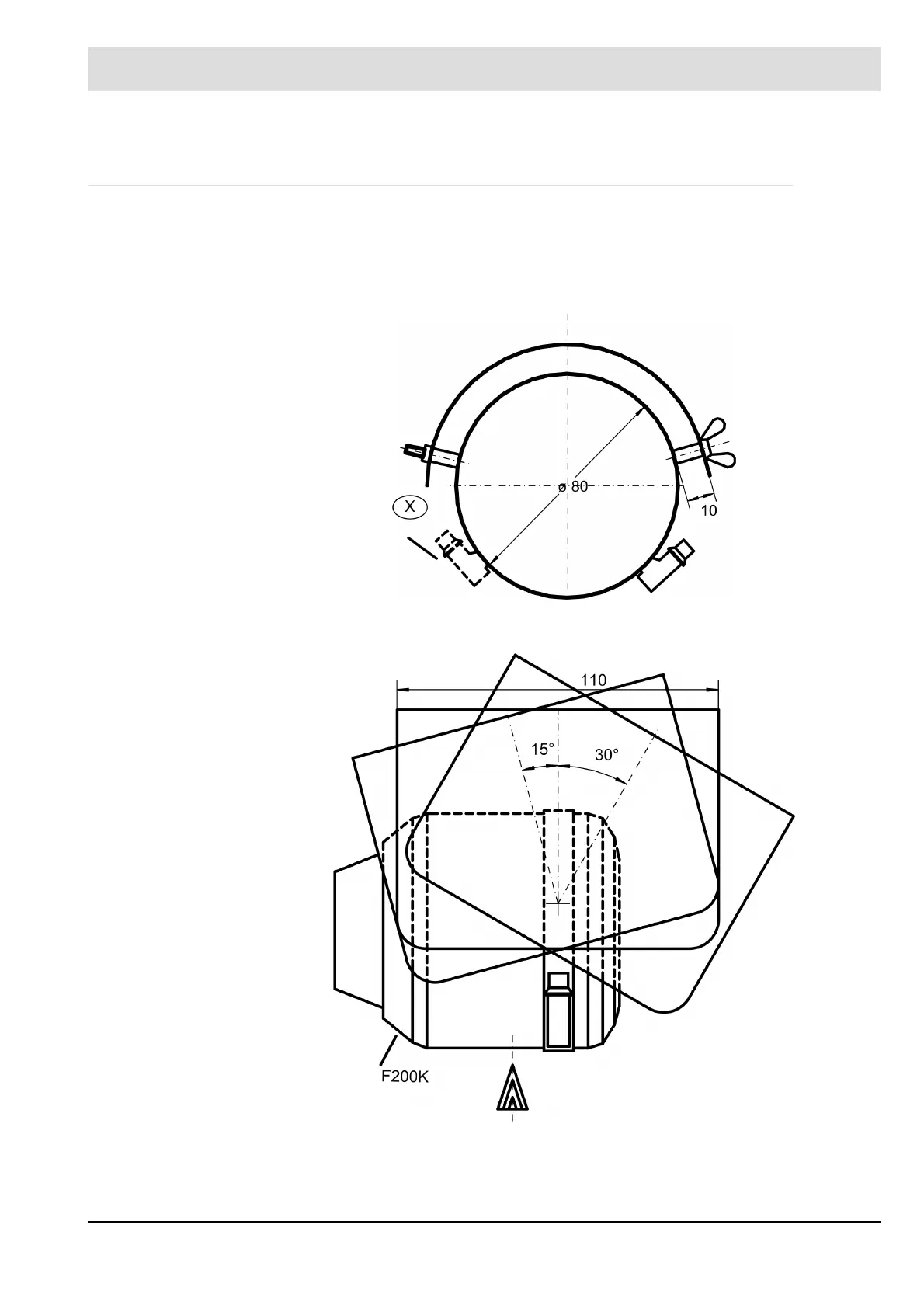

Fig. 10-4 Mounting of weather shield type 659R6030 (rear view)
X - reverse installation in F200K possible
Fig. 10-5 Mounting variation of weather shields type 659R6030 (side view)
