10 Accessories
10.6 Connection Cable AK01
10.6.1 Purpose
DANGER!
The Connection Cable are approved for use with SELV or PELV only.
NOTICE
For special requirements it may be necessary to protect cable additionally.
The specific installation rules are to be observed.
NOTICE
Only the cable AK01-51 is UL Listed approofed.
For the use of the Flame scanner as UL Recognized approofed, the other cable types can‘t
be used.
Devices shall be wired in accordance with NEC field wiring requirements for the location.

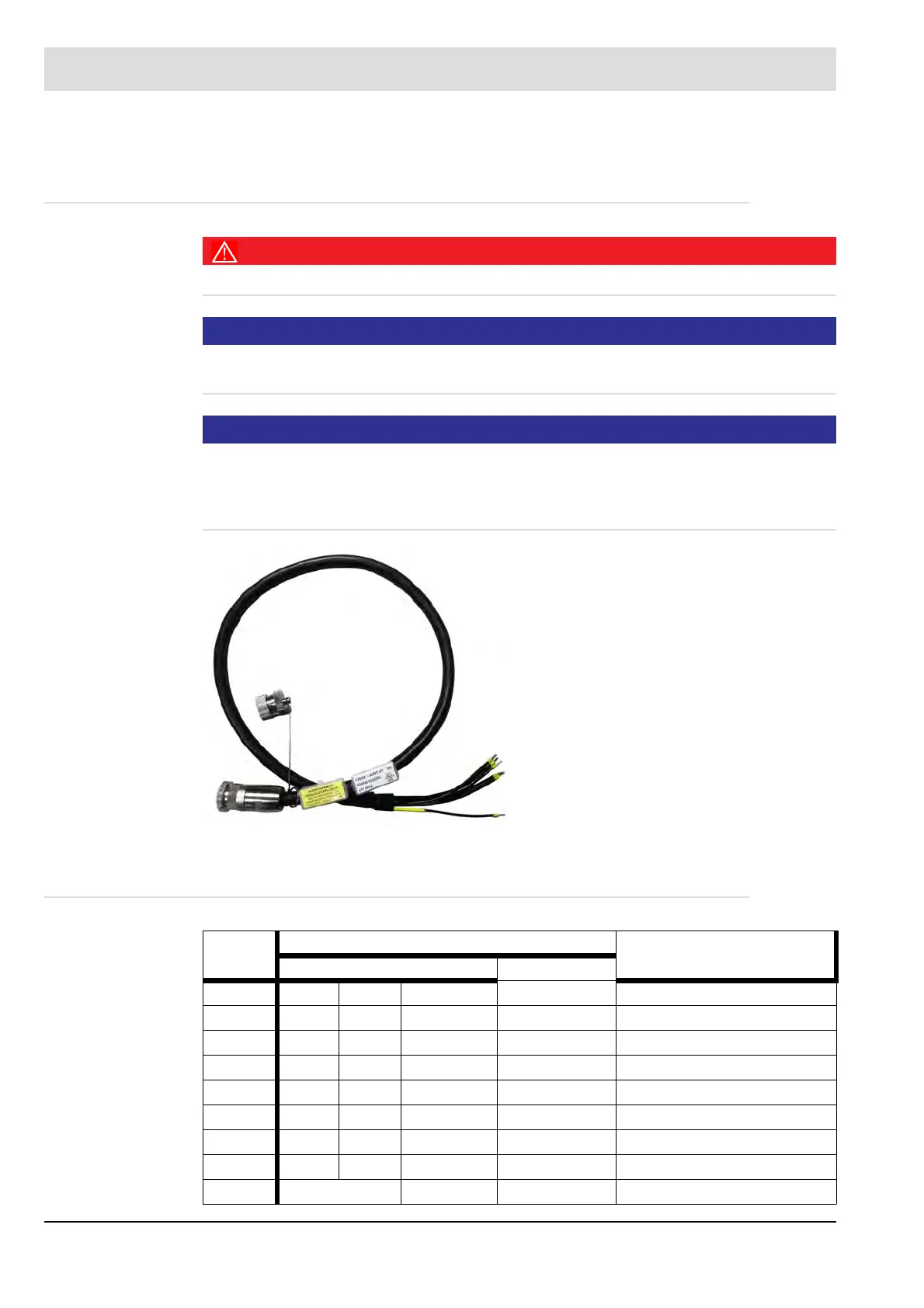

Fig. 10-27 F200K Connection cable AK01-51
10.6.2 Technical Data
Plug
PIN
Cable - Core - Code Function
Colours Numbers
1 WH ws white 1 ONE Contact switch NC
9 BN br brown 2 TWO Contact COM-midpoint
8 GN gn green 3 THREE Contact switch NO
11 YE ge yellow 4 FOURE Area BI/II-Relay
6 GY gr grey 5 FIVE FPE/Shield
5 PK rs pink 6 SIX Intensity 0/4 ... 20 mA
4 BU bl blue 7 SEVEN Supply 0
3 RD rt red 8 EIGHT Supply +
Housing Shield braiding black yellow+ black Shield
