Lamtec F200K User Manual

59
10 Accessories
10.3.3 FV30-10 (for IR and UV, without Ball-and-socket-joint with Purge Air Connection)
10.3.4 FV40-10 (for IR and UV, with Ball-and-socket-joint and Purge Air Connection)

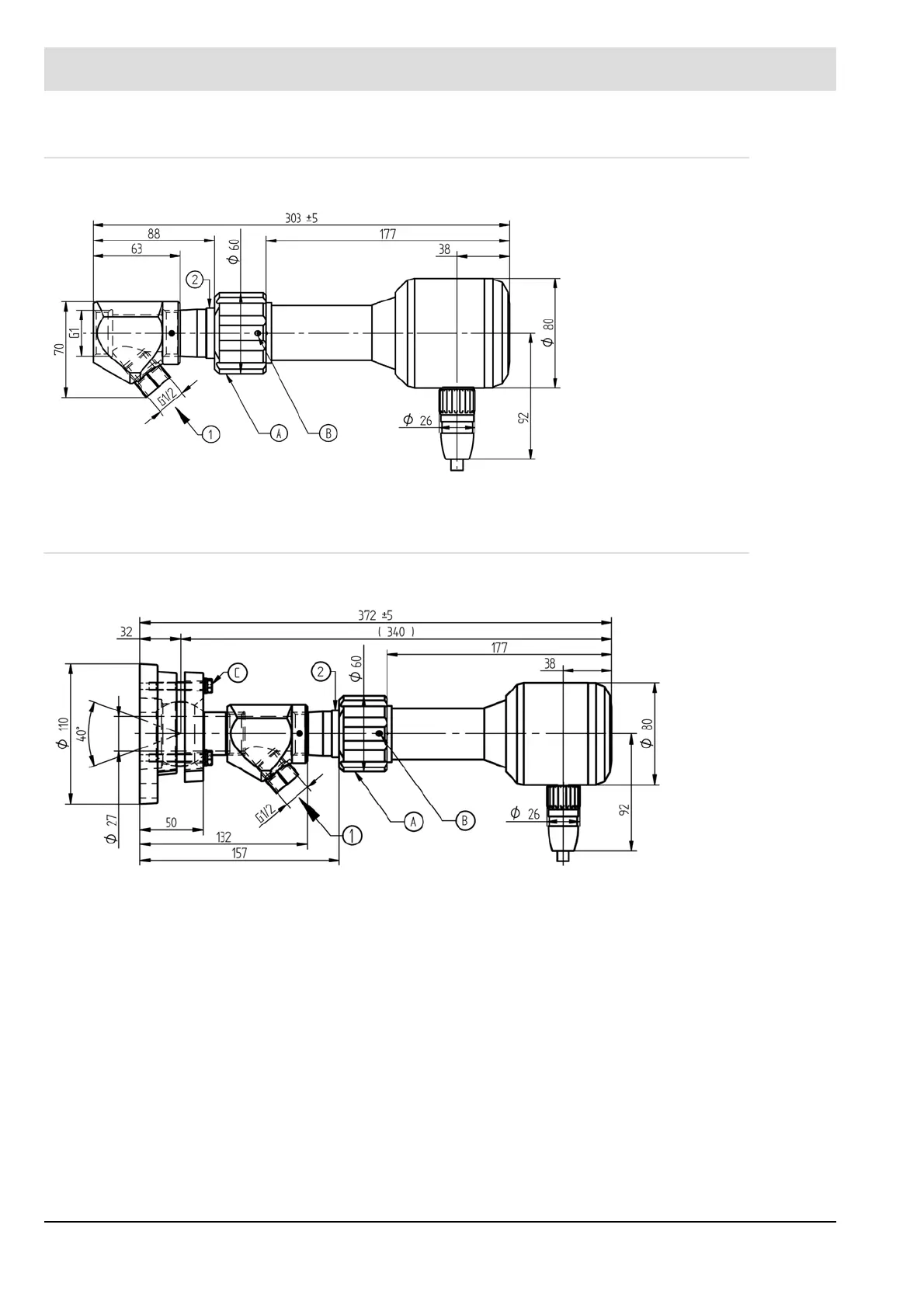

Fig. 10-10 Dimensional drawing FV30-10 Type 659S1200 with flame scanner F200K
1 Purging air
2 Insulation part
A Coupling nut tightened either by
hand torque approx. 5 Nm or by
using SW 46
B Securing device tightened by
Allen key for M3
Fig. 10-11 Dimensional drawing FV40-10 type 659S1300 with compact flame scanner F200K
1 Purging air
2 Insulation part
A Coupling nut tightened either by hand torque approx. 5 Nm or by using SW 46
B Securing device tightened by Allen key for M3
C Clamping of the ball-and-socket joint by using SW 10
