Lamtec F200K - Installation in the Cooling Air Housing

63
10 Accessories
10.3.7 FS56 (Adjustable, Demountable, with Cooling Air Housing)

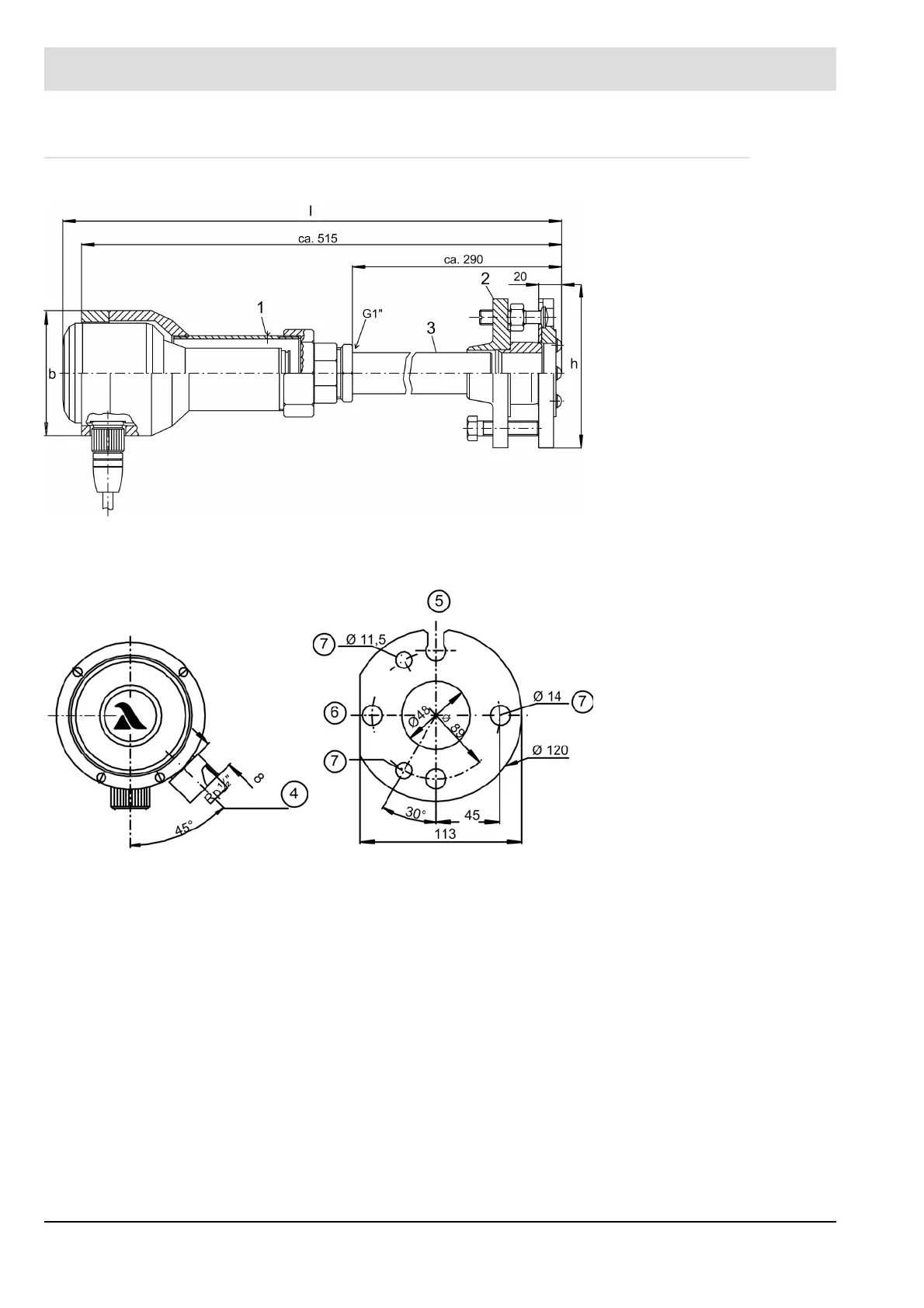

Fig. 10-21 Adjustable holding device FS56 with cooling air housing F200K
1 3x Retaining screw M6 -
Nylon
2 Distance sleeve
3 Flange demountable and
adjustable
4 Cooling air connection
5Top
6 Flange outlines and bore
sketch fixing X
2 x  11,5;
1 x  14
7 Mounting bores
A View A
B View B
Fig. 10-22 View B
Fig. 10-23 View A
