10 Accessories
10.1.3 Pin Assignment

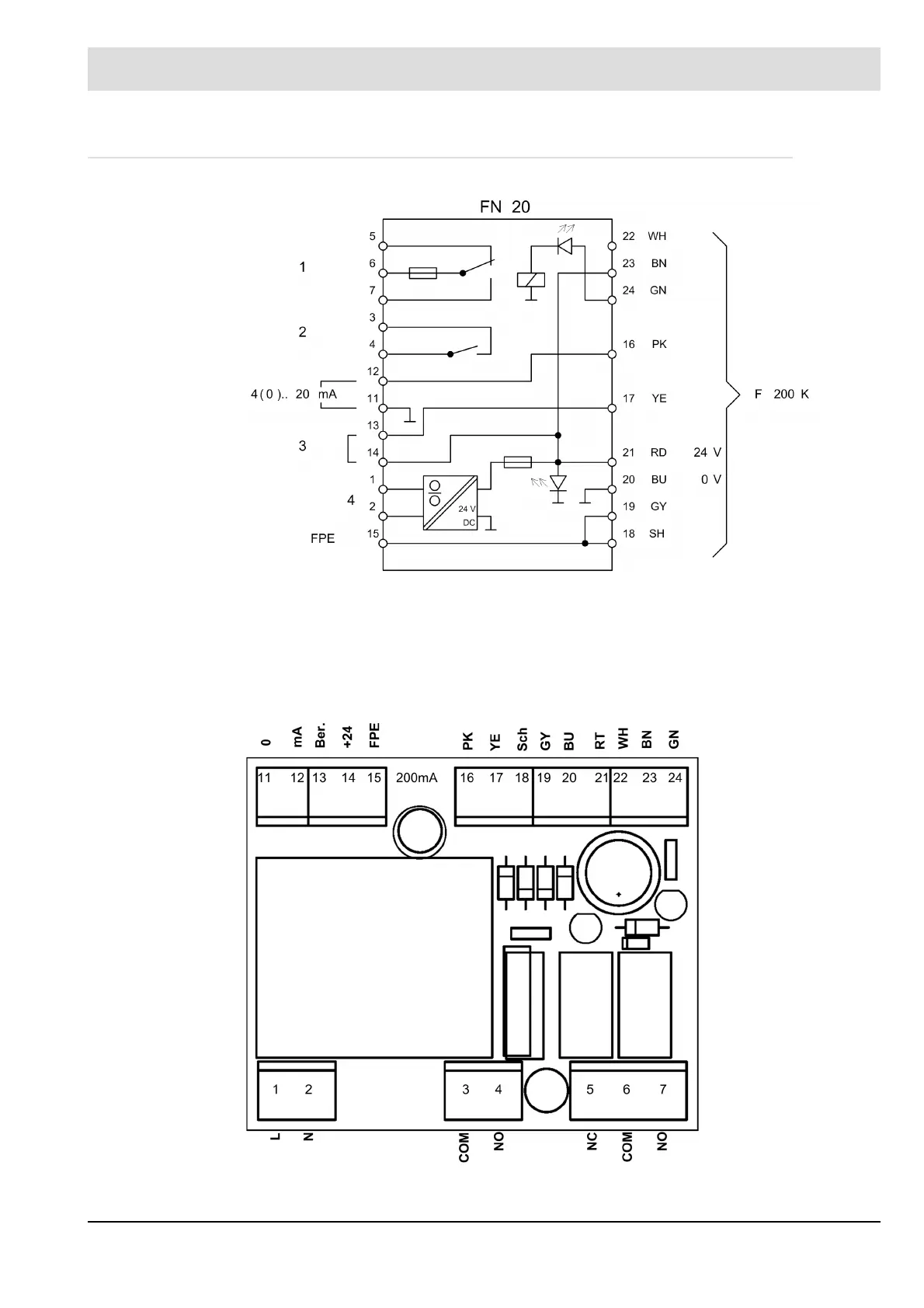

Fig. 10-1 Pin configuration FN20
1 - Flame contact WH - white PK - pink BU - blue
2 - Signalling contact BN - brown YE - yellow GY - grey
3 - Sensitivity selector GN - green RT - red Sch - shield
4 - Mains/FPE
Fig. 10-2 Dimensional drawing IP20 - housing Type 659R6010, FN20
Width 77 mm/3.03 in
Length 90 mm/3,54 in
Height 46 mm/1,81
from upper edge
for hat top rail
Weight 0,35 kg/0,77 lb
