9 Appendix

9.4 Examples of Application

9.4.1 Interfacing with ETAMATIC

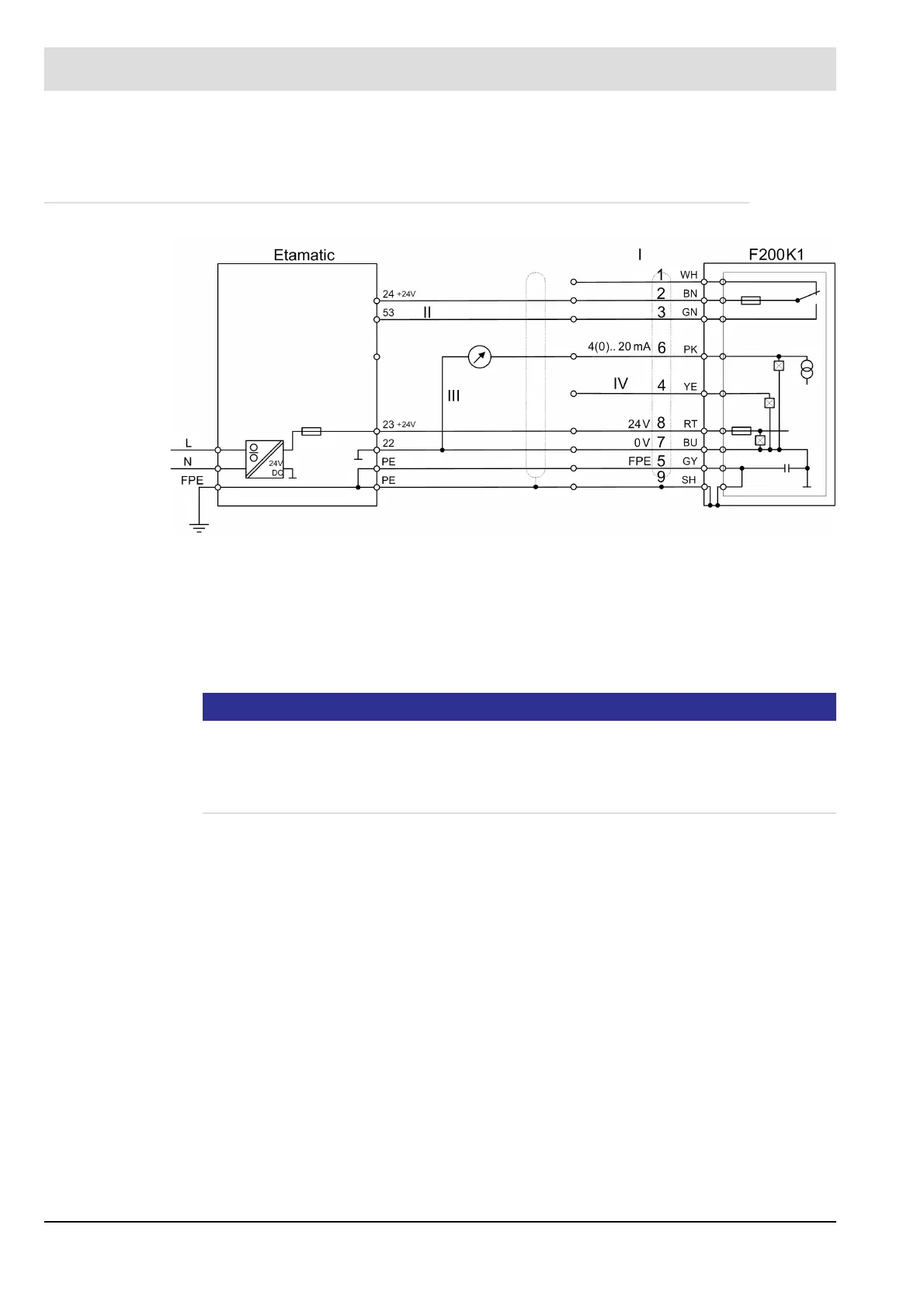

Fig. 9-12 Interconnection F200K1 with ETAMATIC

NOTICE

If a F200K is connected to a FMS or ETAMATIC no other device may be connected to the 24

V power supply of the FMS or ETAMATIC.

If the F200K shall be connected while power is supplied a RESET of the controls (FMS or ET-

AMATIC) may occur.

I - Connection cable WH - white PK - pink BU - blue

II - Flame signal BN - brown YE - yellow GY - grey

III - Flame intensity GN - green RT - red Sch - shield

IV - Range without any function (F200K1)
