10.3.6 Cooling Air Housing with Ball-and-Socket Joint FS51

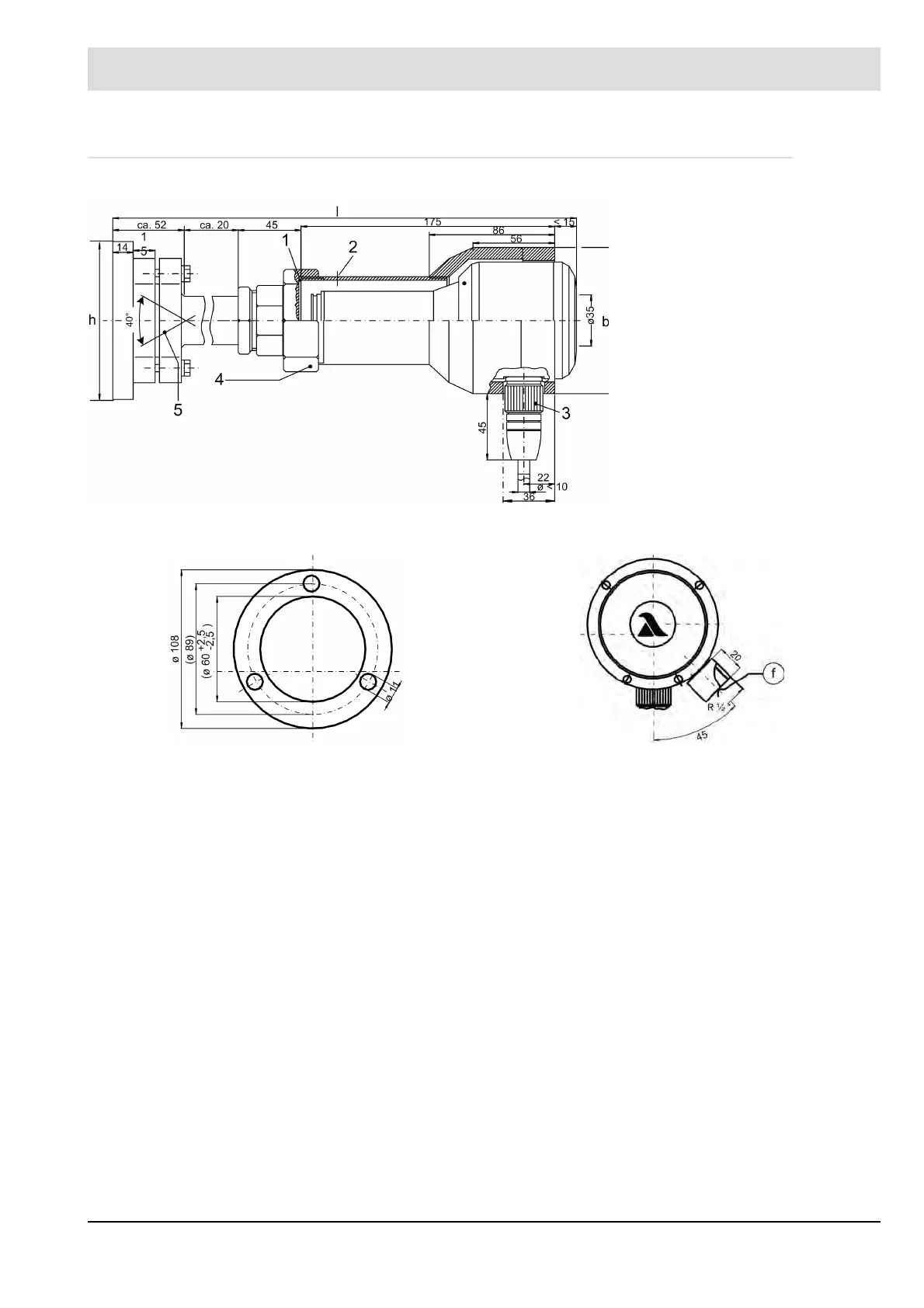

Fig. 10-18 Adjustable holding device FS 51 type 659R6107
1 Sealing ring 56x42x2
2 3x setting screws M6
plastic material, isolated build in
3 Cable connector with screwed
connection
4 Detachable connection
8 Kt SW 66 (lens cleaning)
5 Globe joint
f Cooling air connections
A View A
B View B
Fig. 10-19 FS 51 View A Fig. 10-20 FS 51 View B
