10 Accessories
10.3 Adjustable Holding Devices
10.3.1 FH30-10 (for IR and UV, without Ball-and-socket-joint with Purge Air Connection)
Special attention when mounting the F200K with the holder FH30....
In order to avoid soiling of the view opening during operation, the assembly steps shown in
the following illustration must be carefully observed.
NOTICE
In particular, it is important to ensure that the flame monitor F200K snaps tightly into the plastic
sleeve of the holder before the clamping devices are tightened.

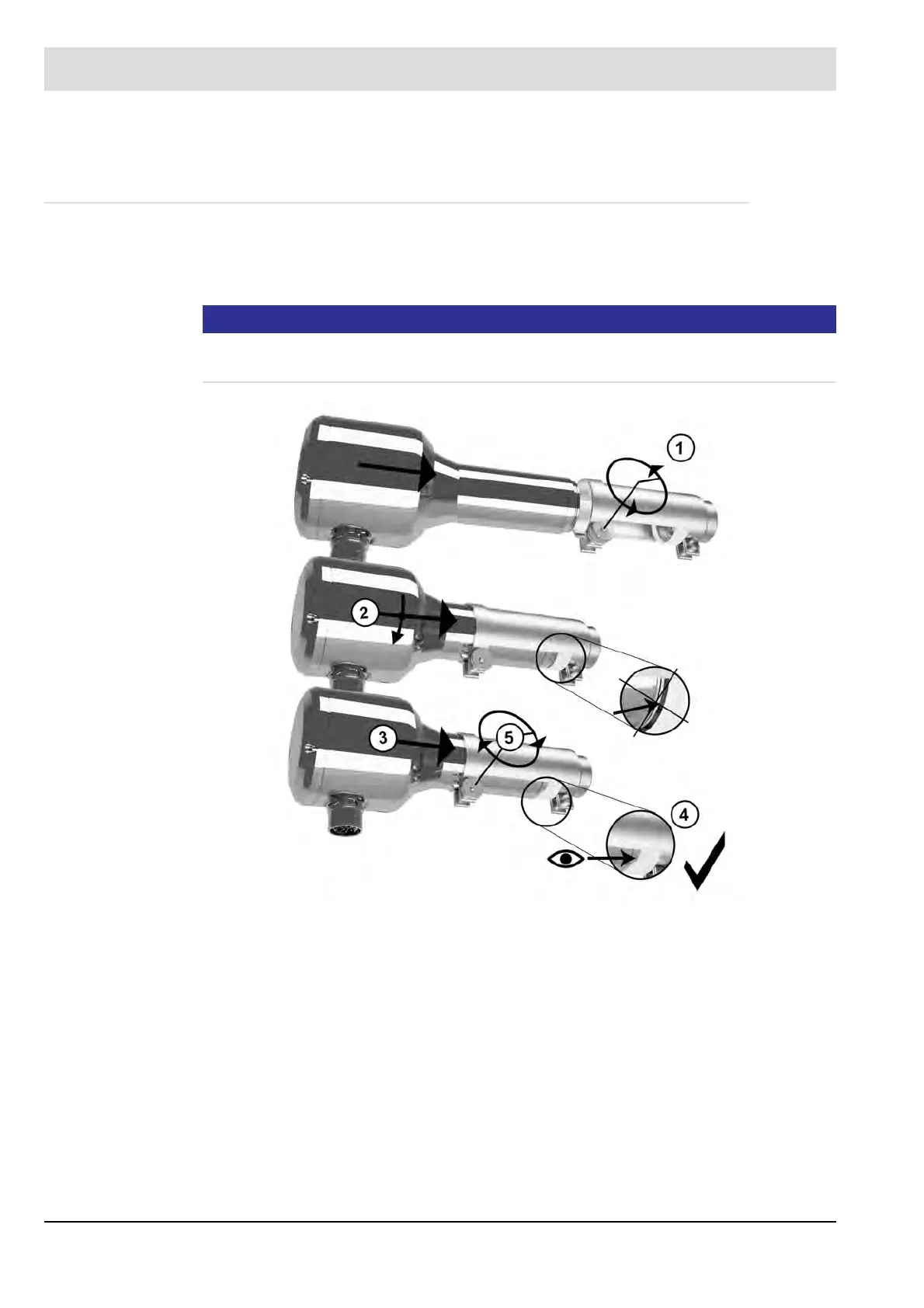

Fig. 10-6 Mounting F200K to FH30-00
