10 Accessories
10.7 Fiber Optic
The LAMTEC Fiber Optic System is available with 2 spectral sensitivities and 2 basic
mechanical constructions.The spectral sensitivity is matched to the LAMTEC flame detector.
WARNING!
F200K IR-x FO
The flame detector F200K FO in the IR version (IR-1..4) may only be used with the
LAMTEC Fiber Optic in the IR version. The Fiber Optic IR version includes the required
spectral sensitivity limitation.
Visible is the Fiber Optic IR version on the process optics (see Fig. below).
The viewing port to the flame is not a lens, but covered with a black filter.

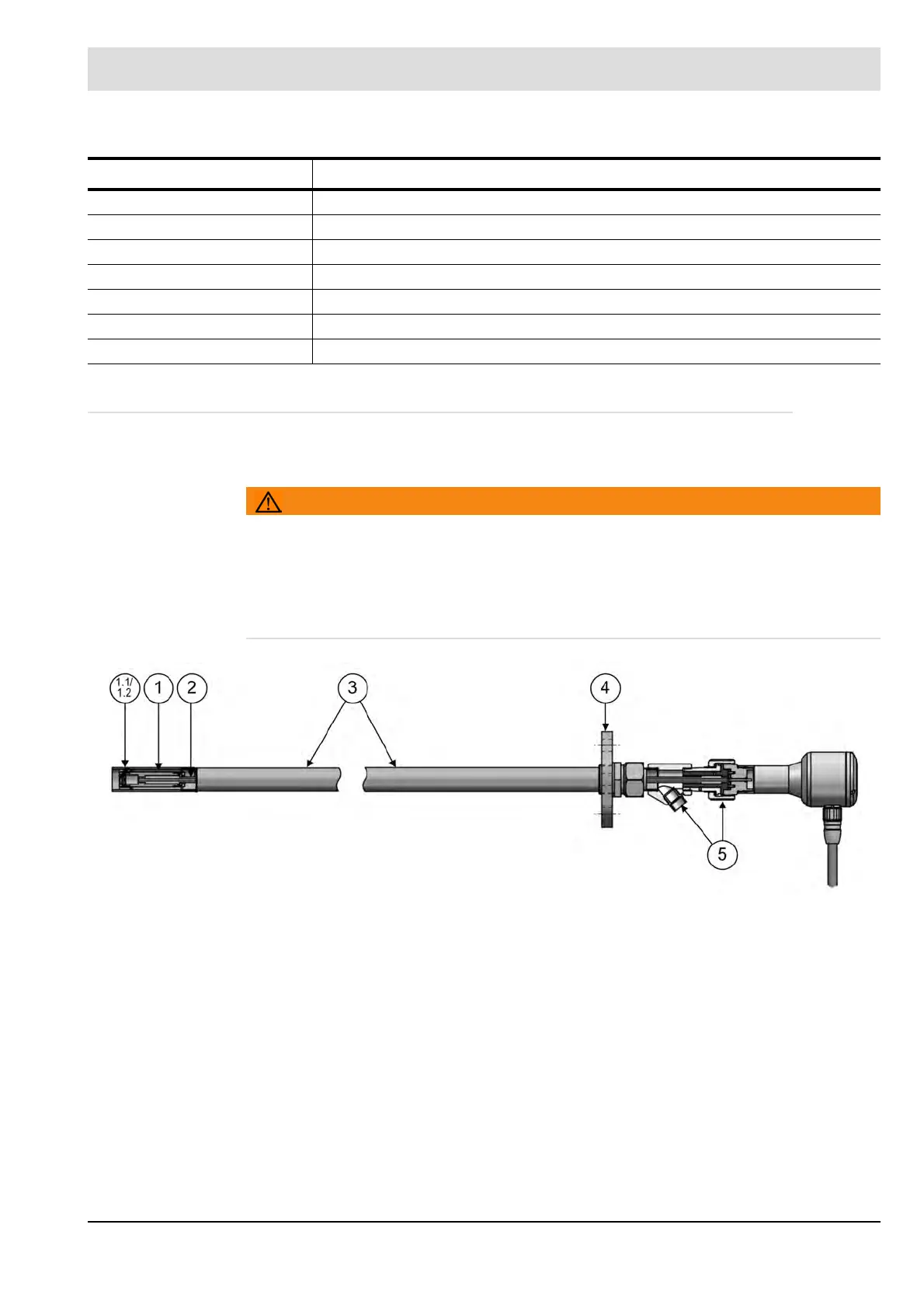

Fig. 10-28 Fiber optic rigid with Flame scanner
Fiber Optic with enclosure - Type key: FOabb-cc-dd
a - enclosure type: R - rigid, F - flexible
b - enclosure series: e.g. 10
c - lenght: e.g. 25 - (2,5 m)
d - optic: UV - uv/vis/nir, IR - nir
Technical Data AK01-51 Used for UL Listed Section and hazardous area Class I Division 2
Protection class TC-ER (Tray Cable Exposed Run), outdoor
Housing material Outer sheath of special PVC
Minimum bending radius Static/Occ. moved: 6/20 x OD (Outer diameter)
Temperature range Static/Occ. moved: -40/-10 °C ... +90 °C / -40/+14 °F ... +194 °F
Cross-section 8 × 0,9 mm
2
/ 18 AWG
Shild copper braiding
Core identification black cores with continuous white numbering
1 Component Group Process Optics 3 Component Group housing
1.1 Optic UV 4 Component Group burner mounting assembly
1.2 Optic IR 5 Component Group Flamescanner
holder assembly FV30-FO
2 Fiber bundle (customer-specific length)
