Lamtec F200K - Page 61

60
10 Accessories

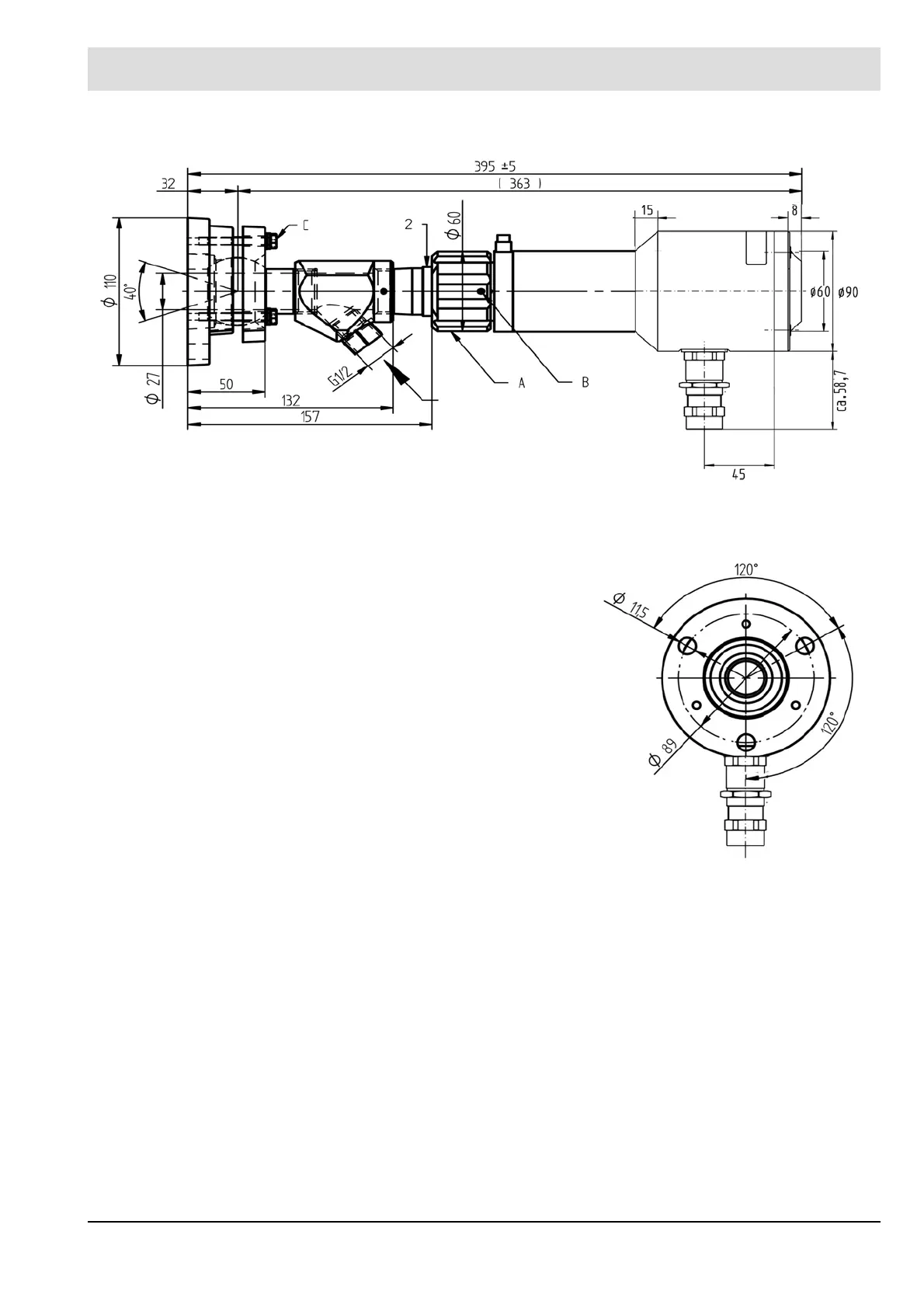

Fig. 10-12 Dimensional drawing with bracket FV40-10 with F200K Ex type 659S1300
1 Purging air
Fig. 10-13 View A
2 Insulation part
A Coupling nut tightened either by hand torque approx. 5 Nm or by
using SW 46
B Securing device tightened by allen key for M3
C Clamping of the ball-and-socket joint by using SW 10
