LaserMech FiberMINI 2.0 - Introduction; Key Features

PLMNL0286 REV. B, Effective Date: 06/06/19 1 FiberMINI
®
with Auto Focus (AF) Operation Manual
1 Introduction
FiberMINI
®
2.0 with Auto Focus (AF) is shown
in a straight configuration. See Figure 1. Other
configurations are available upon request. See
your Laser Mechanisms’ Sales Engineer for
more information.
FiberMINI
®
AF is simple, yet flexible to optimize
the processing head and the end user’s fiber
laser. The head is capable of cutting a wide
range of materials.
Key Features
 Compatible with all leading fiber-delivered
laser systems up to 4kW
 Flexible design to optimize spot size
 Capacitive height sensing
 Up to14 mm automated focus lens
adjustment
 Quick and easy access to the cover slide
 Water and air cooling
 Smooth assist gas flow
 Quick and easy to service the focus lens
 Thermal monitoring for the optics
 Internal wiring and plumbing for gasses and
coolants
 Compact, lightweight design
 Fully sealed optical path
This manual explains the steps of installation,
setup, operation and service of the FiberMINI
®
AF.

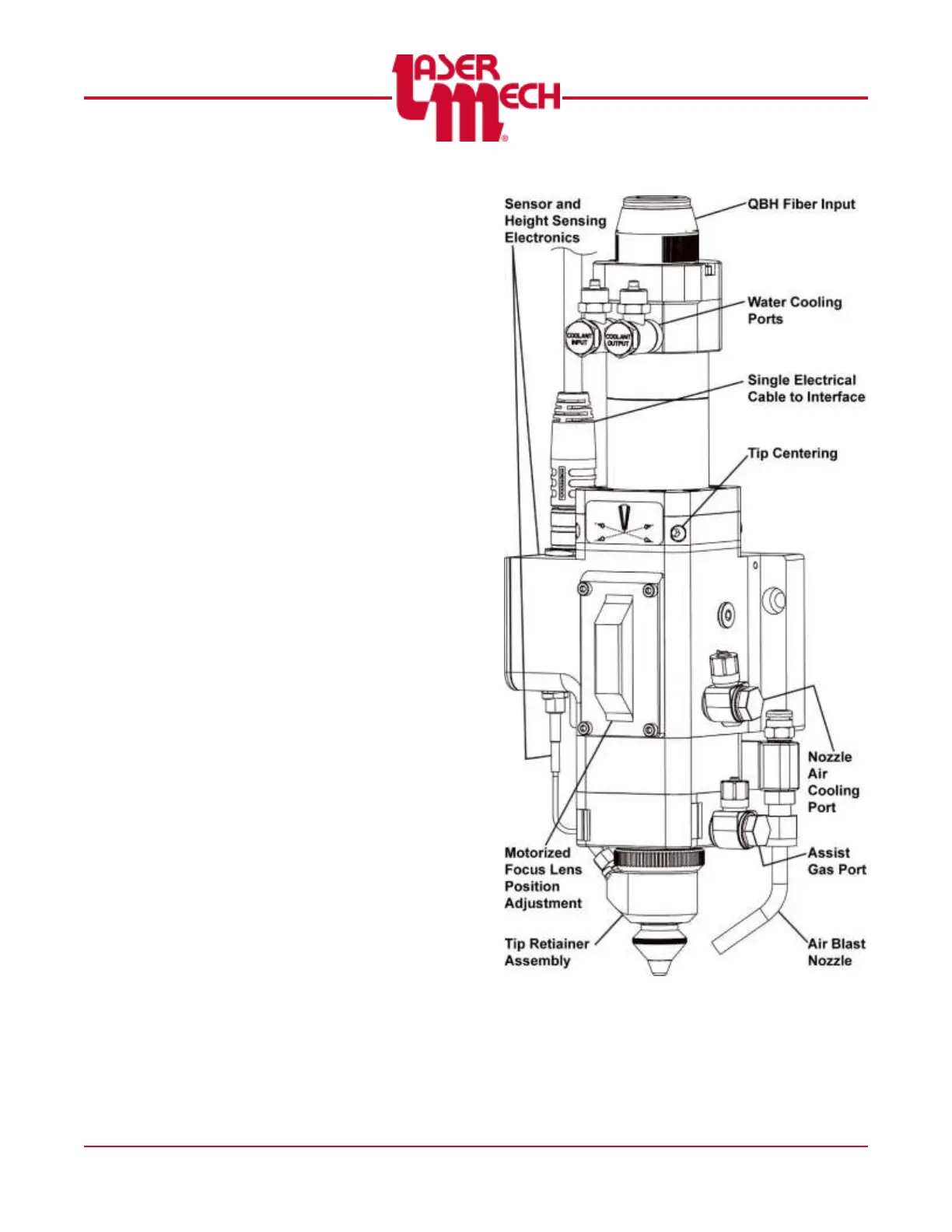

Figure 1
