X-431 PRO5 User Manual
4
1

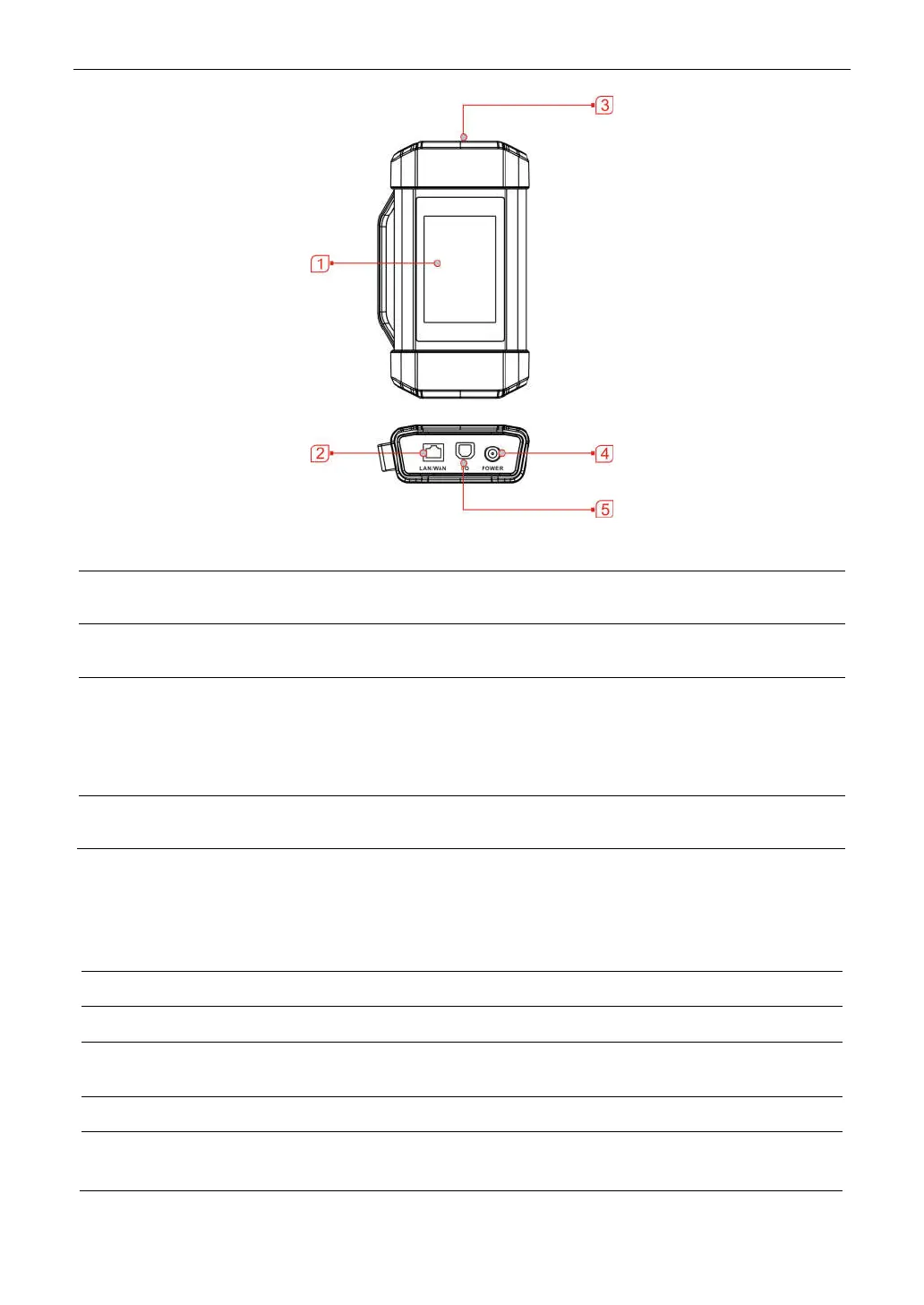

Touch Screen
2 LAN/WAN Port
Connects the SmartLink C device to the Internet via the
crossover cable.
3 OBD-16 Diagnostic Connector
Connects the SmartLink C device to the vehicle’s DLC (Data Link
Connector) port via the OBD II extension cable.
4 DC-IN Port
Currently disabled and for manufacturer use only.
*Warning: The SmartLink C device obtains power through the
vehicle's DLC, and it is prohibited to connect to an external DC
power supply. No responsibility can be assumed for any damage or
loss caused as a result of not strictly following the above method.
5 Data I/O Port
Connects the SmartLink C device to the PC via the data cable
when as a J2534 PassThru device.
1.4 Technical Parameters
1.4.1 Display tablet
Operating system Android
Memory 3GB
Storage 32GB
Screen
10.1 inch FHD IPS capacitive touch screen with a resolution of
1920 x 1200 pixels
Camera Front-facing 5.0MP + Rear-facing 8.0MP camera
Connectivity
Wi-Fi (802.11a/b/g/n/ac)
Bluetooth
To Next Page
