LAUNCH X-431 PRO5 User Manual
3
5 Front Camera
6
Charging / Data I/O
Port
• Connects to AC outlet for charging.
• Connects to PC for data exchange.
7 Microphone
8 Rear Camera
9 Adjustable stand
Flip it out to any angle and work comfortable at your desk, or hang it on
steering wheel.
1.3.2 SmartLink C Device
The SmartLink C device features powerful functions and it can be applied in the following situations:

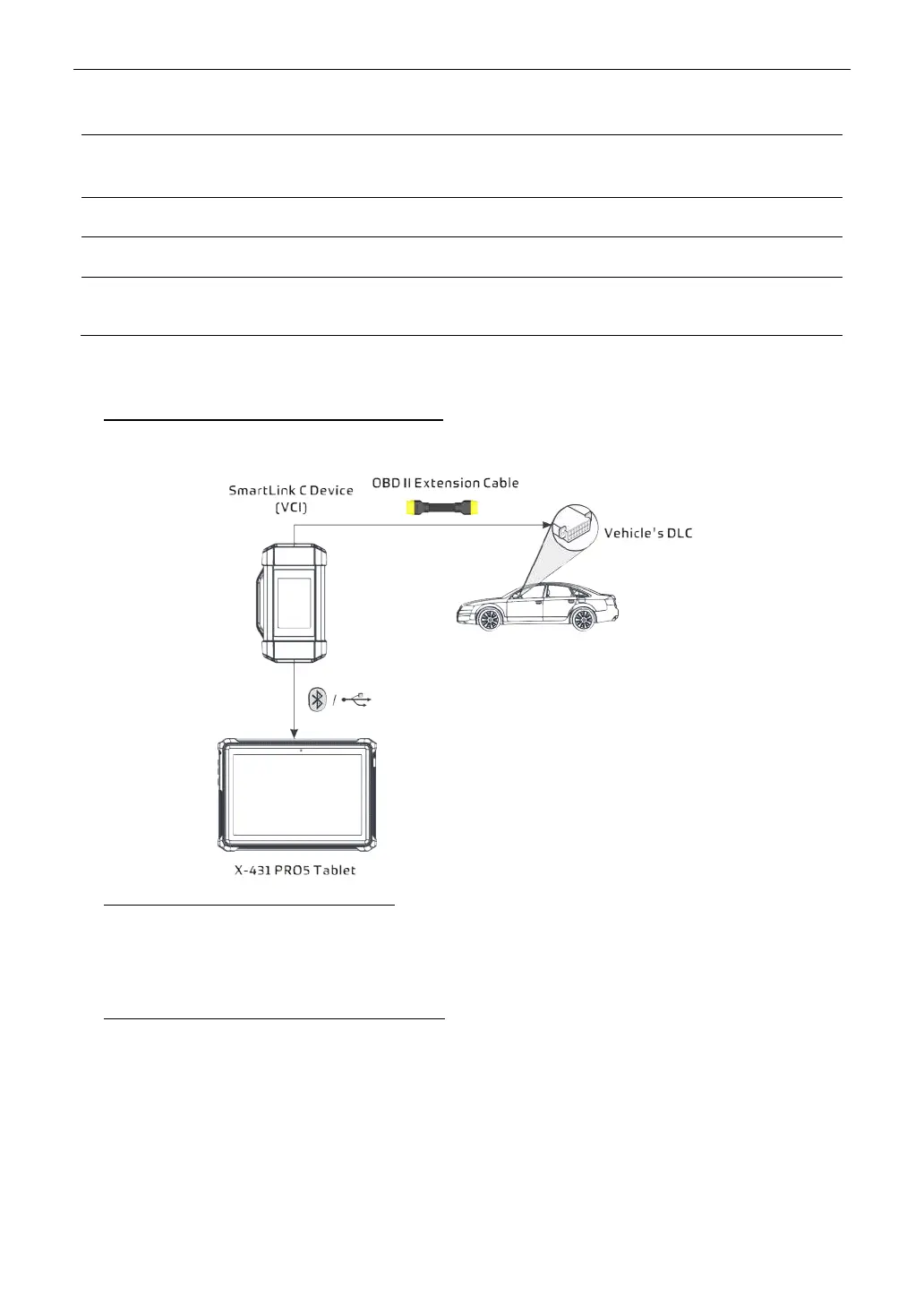

1). When as a VCI (Vehicle Communication Interface), it needs to work in conjunction with the Diagnose module
of the tablet, which is used to obtain vehicle data, and then send it to the tablet for analysis via Bluetooth / data
cable.
2). When as a SmartLink C (Customer) dongle, it does not communicate with the tablet, but it needs to work
together with the SmartLink module of the tablet. The tablet is mainly used to issue remote diagnostic requests,
and the SmartLink C dongle is networked to receive and execute commands from the remote SmartLink B
(Business).
*Note: For detailed operations, please refer to Chapter 7.
3). When as a local or remote J2534 PassThru device, it can be used in conjunction with the PC installed with
OEM diagnostic software.
*Note: For detailed operations, please refer to Chapter 12.
