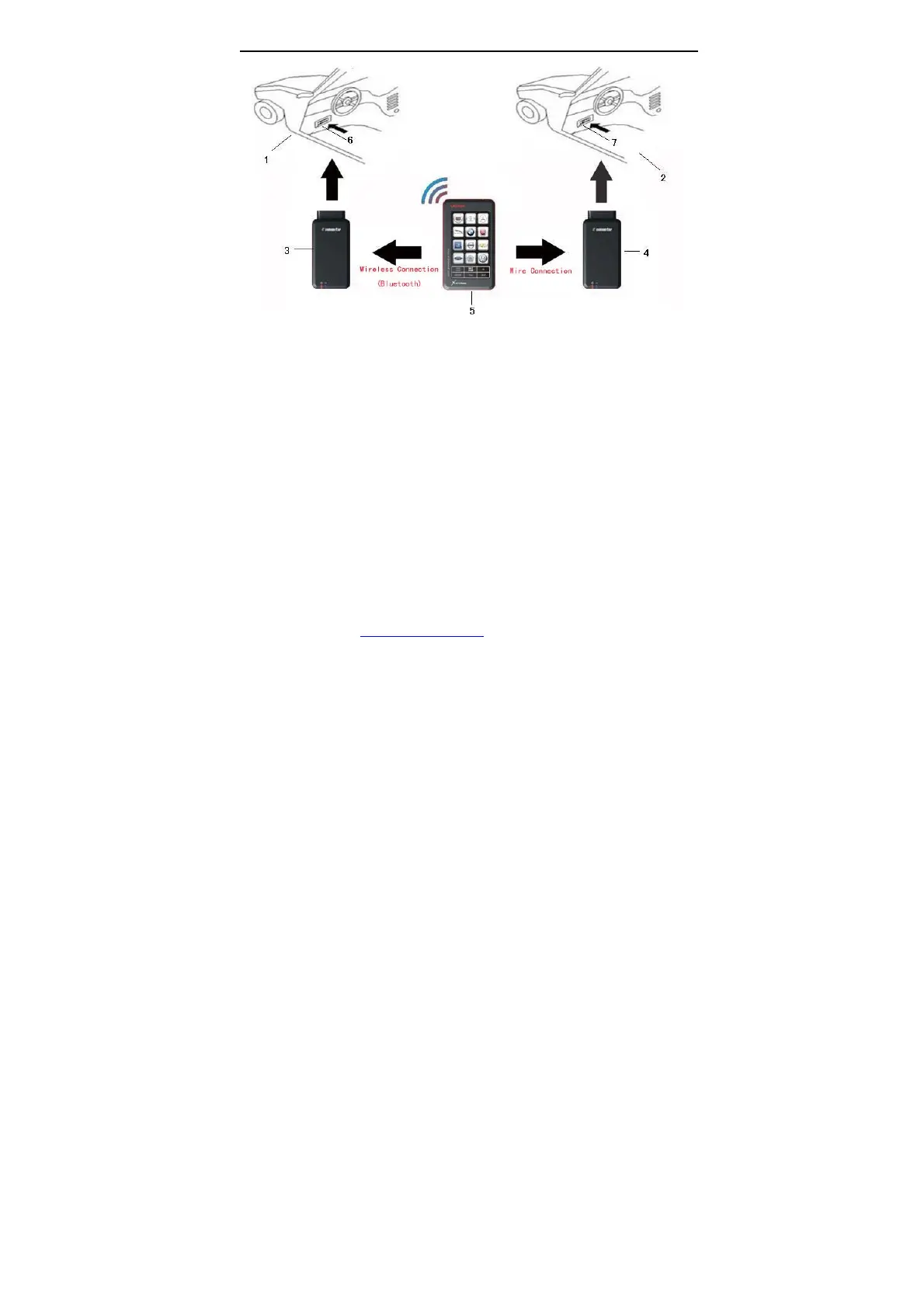

Figure 3-2 cable (wire connection)/ blue tooth (wireless)
1 – 2. Diagnose Target 3 – 4. X-431Diagun Diagnostic connector 5.
X-431Diagun main unit 6-7. DLC
Note: If battery power of X-431Diagun main unit is running low, follow
the below methods for power supply:
1. Supply power via DLC: connect the main unit to the diagnosis
connector by cable ( wire connection).
2. Supply power via the charger: insert one end (20PIN Male) of the
charger into the diagnostic port of X-431Diagun main unit and
plug the other end in AC 100-240V power socket.
3.2 Begin to Diagnose Vehicle
Vehicle makes, models and systems tested by X-431Diagun update every
day. Please visit http://www.x431.com
for the updates and download
diagnose program of the latest version.

Launch X-431 Diagun Specifications

General

Operating System	Android
RAM	2GB
Connectivity	Wi-Fi, Bluetooth
Ports	USB
Processor	Quad-core
Storage	16GB
Supported Protocols	CAN
Languages	Multiple languages
Battery	Rechargeable lithium-ion battery
Diagnostic Functions	Full system diagnosis, reading and clearing DTCs, data stream, actuation test, special functions (e.g., oil reset, EPB reset, SAS reset, TPMS reset, BMS reset, ABS bleeding, DPF regeneration, IMMO)
