LAUNCH X-431Diagun User's Manual
18

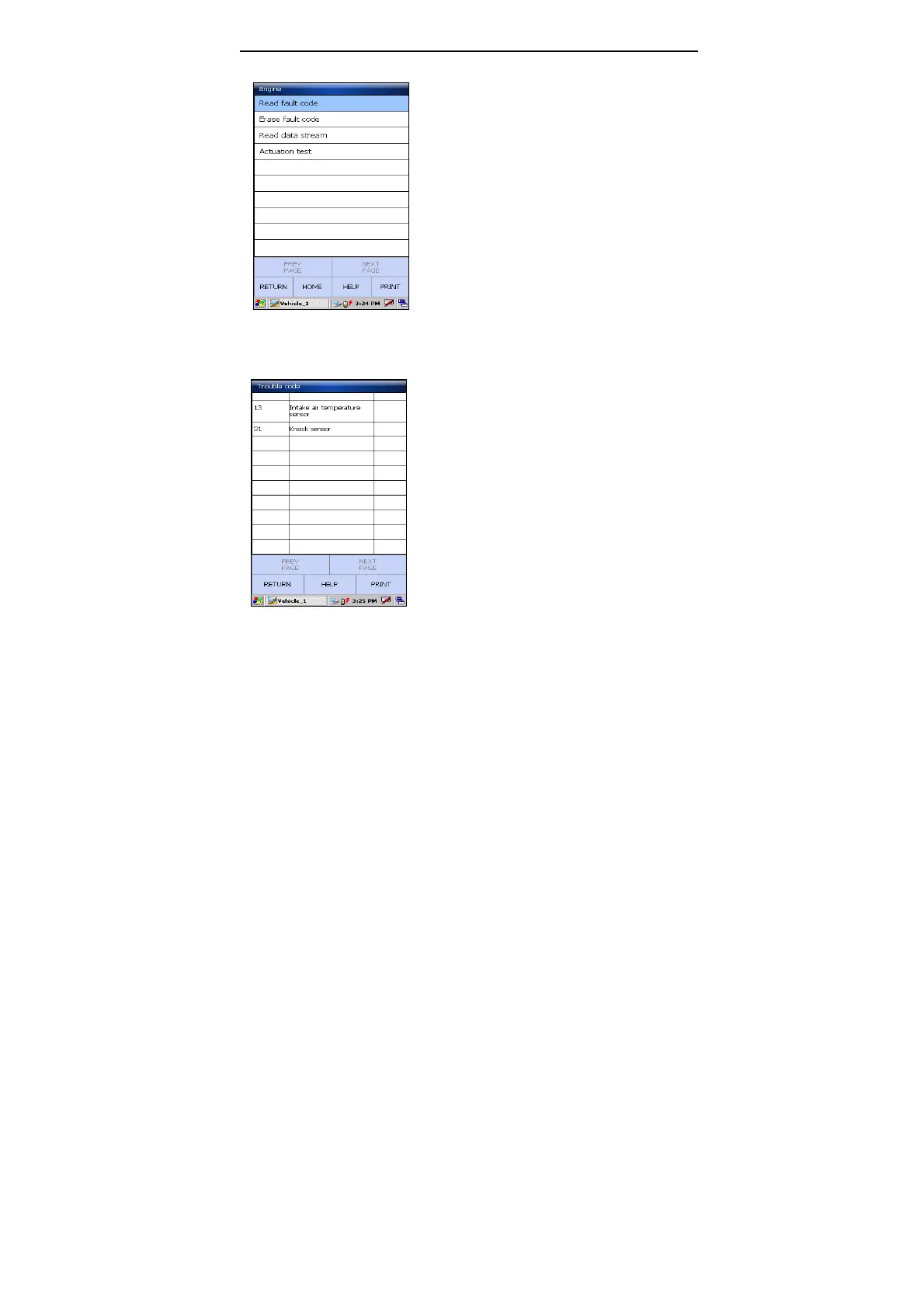

After successful communication, the
screen enter the function menu of the
diagnostic system automatically, as shown
on the left:
1) Read fault code
2) Erase fault code
3) Read data stream
4) Actuation test
3.3.1 Read Fault Code
Click [Read fault code] to perform this
function. The test result will be displayed
on the screen, as shown on the left.
Button Description:
[PRINT]: prints the test result. (should be
connected to an external printer with USB
port)

Launch X-431 Diagun Specifications

General

Operating System	Android
RAM	2GB
Connectivity	Wi-Fi, Bluetooth
Ports	USB
Processor	Quad-core
Storage	16GB
Supported Protocols	CAN
Languages	Multiple languages
Battery	Rechargeable lithium-ion battery
Diagnostic Functions	Full system diagnosis, reading and clearing DTCs, data stream, actuation test, special functions (e.g., oil reset, EPB reset, SAS reset, TPMS reset, BMS reset, ABS bleeding, DPF regeneration, IMMO)
