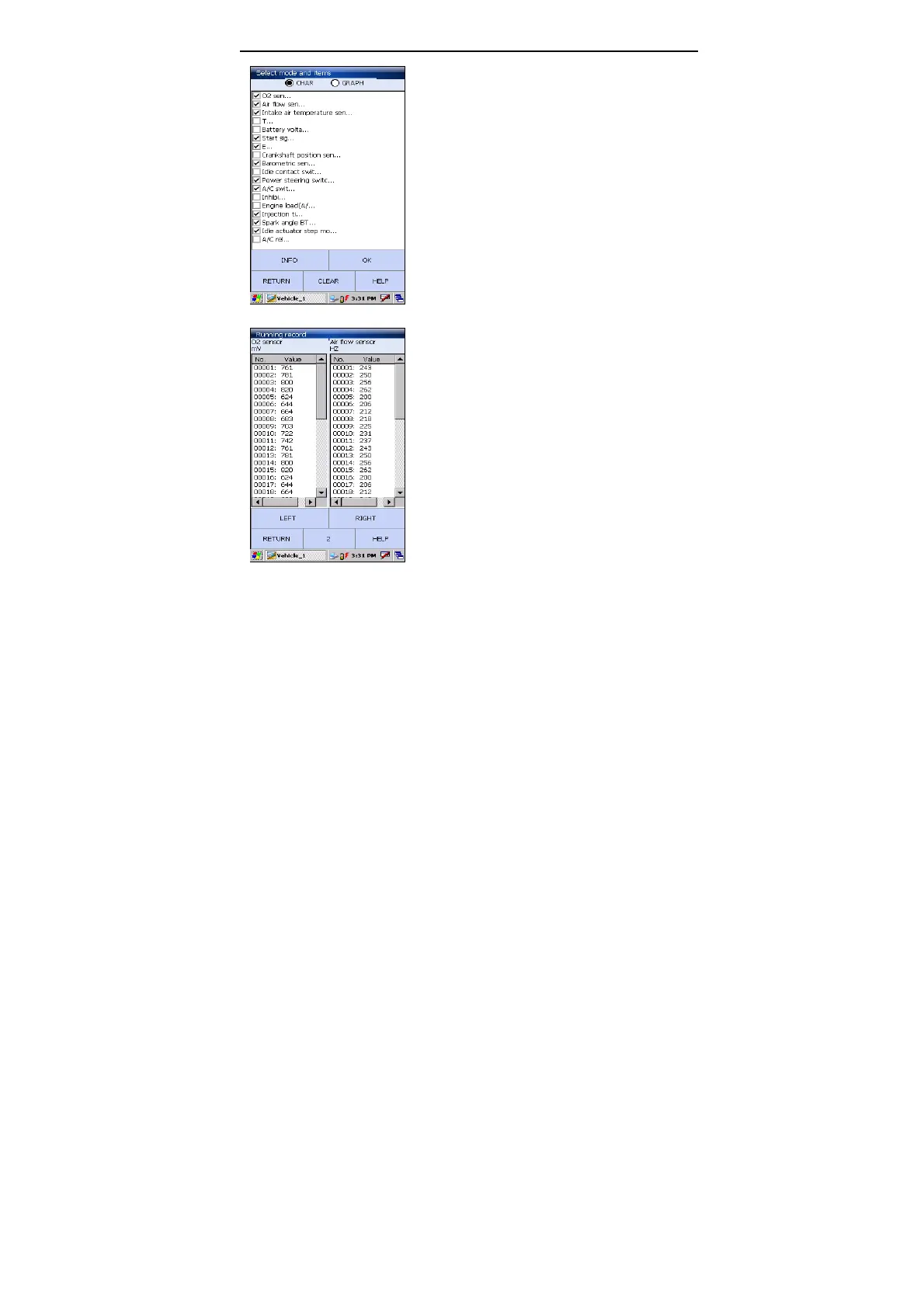

Click in the box to select parameters in
which you want to view the datastream,
the selected items will be marked with
‘ √ ’. You could select "CHAR" or
"GRAPH" to view datastream in different
form as you want, as shown on the left.
After selecting, click [OK], the recorded
dynamic data will appear again, as shown
on the left
Button Descriptions:
[Left]: show the hidden datastream on the
left.
[Right]: show the hidden datastream on
the right.
3.4 Flow chart for diagnose procedure

Launch X-431 Diagun Specifications

General

Operating System	Android
RAM	2GB
Connectivity	Wi-Fi, Bluetooth
Ports	USB
Processor	Quad-core
Storage	16GB
Supported Protocols	CAN
Languages	Multiple languages
Battery	Rechargeable lithium-ion battery
Diagnostic Functions	Full system diagnosis, reading and clearing DTCs, data stream, actuation test, special functions (e.g., oil reset, EPB reset, SAS reset, TPMS reset, BMS reset, ABS bleeding, DPF regeneration, IMMO)
