LAUNCH X-431Diagun User's Manual
17
3.3 How to Diagnose
Select version "V10.01", and click
[Download] to enter the diagnosis screen,
as shown on the left.
Note: The diagnosis screen of different
makes contains the tested models,
systems, diagnosis connector and DLC
location. The operations are similar.
Button Descriptions:
[RETURN]: return back to the previous
interface.
[HOME]: Exit and return back to the
homepage（ Vehicle Make interface）
when program abnormality occurs.
[HELP]: show the help information.
[PRINT]: print the test result (should be
connected to an external printer with USB
port).

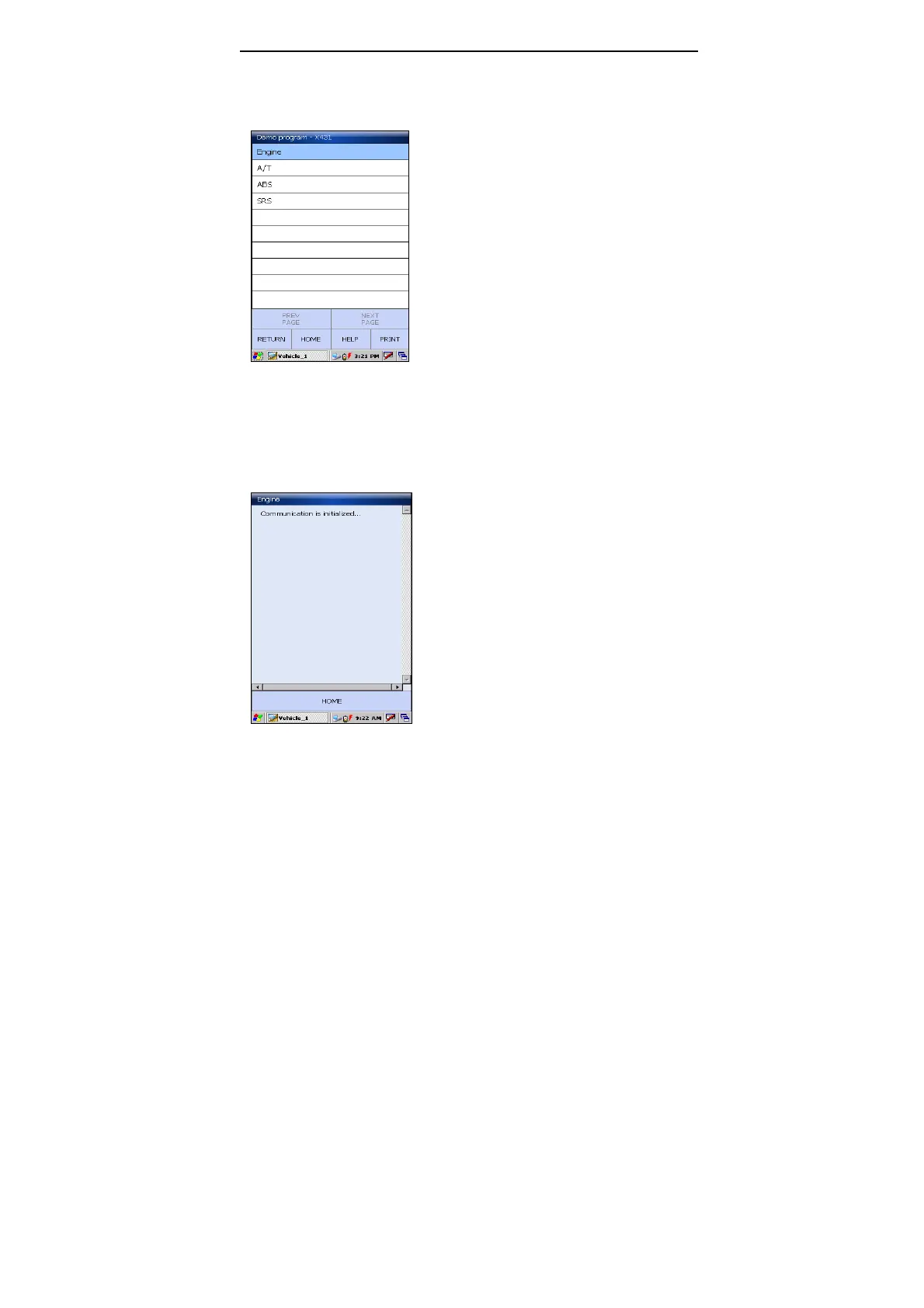

Click [Engine] on the tested system menu.
Note: The test method for different
systems is similar. Here we take
[Engine] for example.
After clicking, "Communication is
Initialized" screen will appear as shown
on the left.

Launch X-431 Diagun Specifications

General

Operating System	Android
RAM	2GB
Connectivity	Wi-Fi, Bluetooth
Ports	USB
Processor	Quad-core
Storage	16GB
Supported Protocols	CAN
Languages	Multiple languages
Battery	Rechargeable lithium-ion battery
Diagnostic Functions	Full system diagnosis, reading and clearing DTCs, data stream, actuation test, special functions (e.g., oil reset, EPB reset, SAS reset, TPMS reset, BMS reset, ABS bleeding, DPF regeneration, IMMO)
