LAUNCH X-431Diagun User's Manual
23

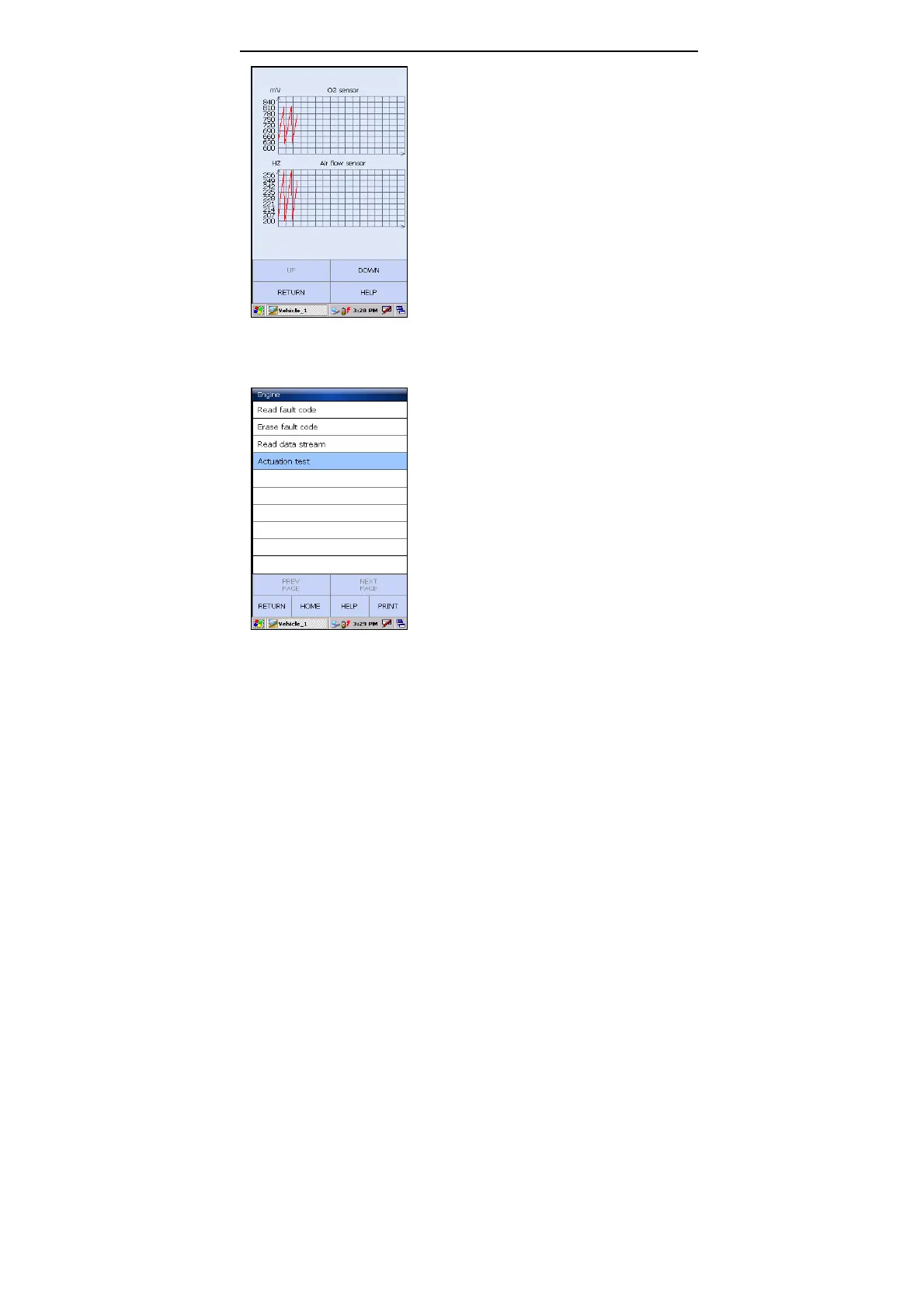

With the datastream screen displayed,
click to select the datastream, and click
[GRAPH] to view the datastream
waveform (not more than two in a screen)
as shown on the left.
3.3.4 Actuation Test
The purpose of this function is to control
the operation of an on-board system, test
or component.
Click [Actuation test] on the function
menu, as shown on the left.
Note: Here take [Cylinder 1# injector]
for example.

Launch X-431 Diagun Specifications

General

Operating System	Android
RAM	2GB
Connectivity	Wi-Fi, Bluetooth
Ports	USB
Processor	Quad-core
Storage	16GB
Supported Protocols	CAN
Languages	Multiple languages
Battery	Rechargeable lithium-ion battery
Diagnostic Functions	Full system diagnosis, reading and clearing DTCs, data stream, actuation test, special functions (e.g., oil reset, EPB reset, SAS reset, TPMS reset, BMS reset, ABS bleeding, DPF regeneration, IMMO)
