LAVAZZA LB 2302 - Page 33

LINE 2
1) Microswitch of the brew unit in working position (up)
2) Microswitch of the brew unit in resting position
(down)
3) Microswitch of the brew unit presence
4) Microswitch of the used capsule drawer
5) Microswitch of the capsule presence
6) Microswitch of the capsule loading tray
7) Sensor of the water level
8) Magnet of flowmeter turbine
9) Microswitch of the front panel
LINE 3
1) Language button
2) ENTER button
3) Manual dispensing (ESC) button
4) Long coffee (UP) button
5) Espresso coffee (DOWN) button
6) Stop button
7) Rinse button
8) Menu button
LB 2301 - LB 2311 Single cup with steam
WITH STEAM
LB 2300 Cap.01
WITH STEAM
LB 2300 Cap.01
LINE 2
1) Microswitch of the brew unit in working position (up)
2) Microswitch of the brew unit in resting position
(down)
3) Microswitch of the brew unit presence
4) Microswitch of the used capsule drawer
5) Microswitch of the capsule presence
6) Microswitch of the capsule loading tray
7) Sensor of the water level
8) Magnet of flowmeter turbine
9) Microswitch of the front panel
LINE 3
1) Hot water button
2) Steam (ENTER) button
3) Manual dispensing (ESC) button
4) Long coffee (UP) button
5) Espresso coffee (DOWN) button
6) Double dose button
7) Rinse button
8) Menu button
LB 2302 - LB 2312 Double cup with steam
WITH STEAM
LB 2300 Cap.01
WITH STEAM
LB 2300 Cap.01
*
*
1
4
3
2

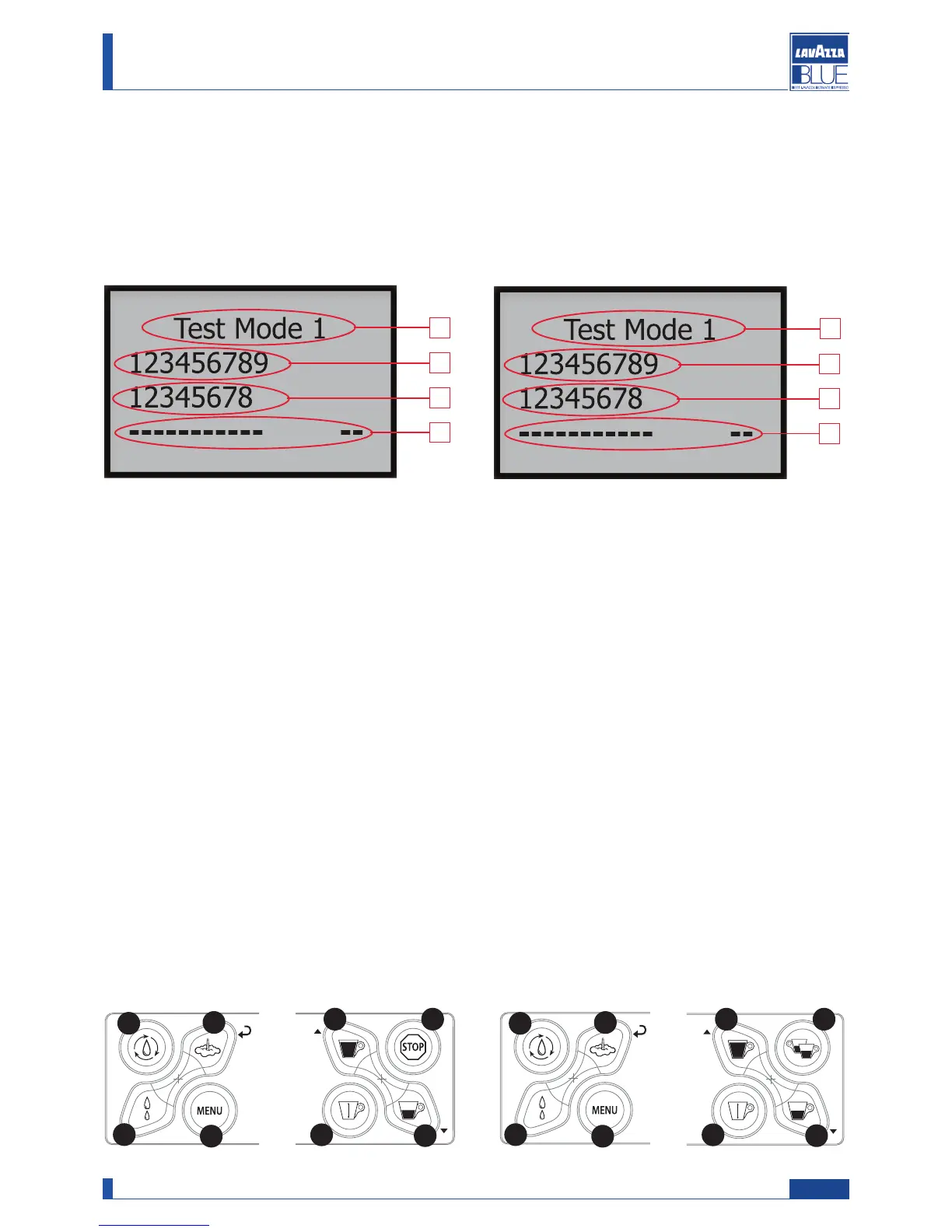

Line 1: Displays the test mode level
Line 2: Displays microswitches/sensors
Line 3: Displays the pressed button
Line 4: Displays the value of the machine component
*
*
1
4
3
2
Linea 1: Visualizzazione livello Test Mode
Linea 2: Visualizzazione Micro / Sensori
Linea 3: Visualizzazione Tasto premuto
Linea 4: Visualizzazione valore macchina
77
44
22
11
88
66
33
55
77
44
22
11
88
66
33
55
27
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
