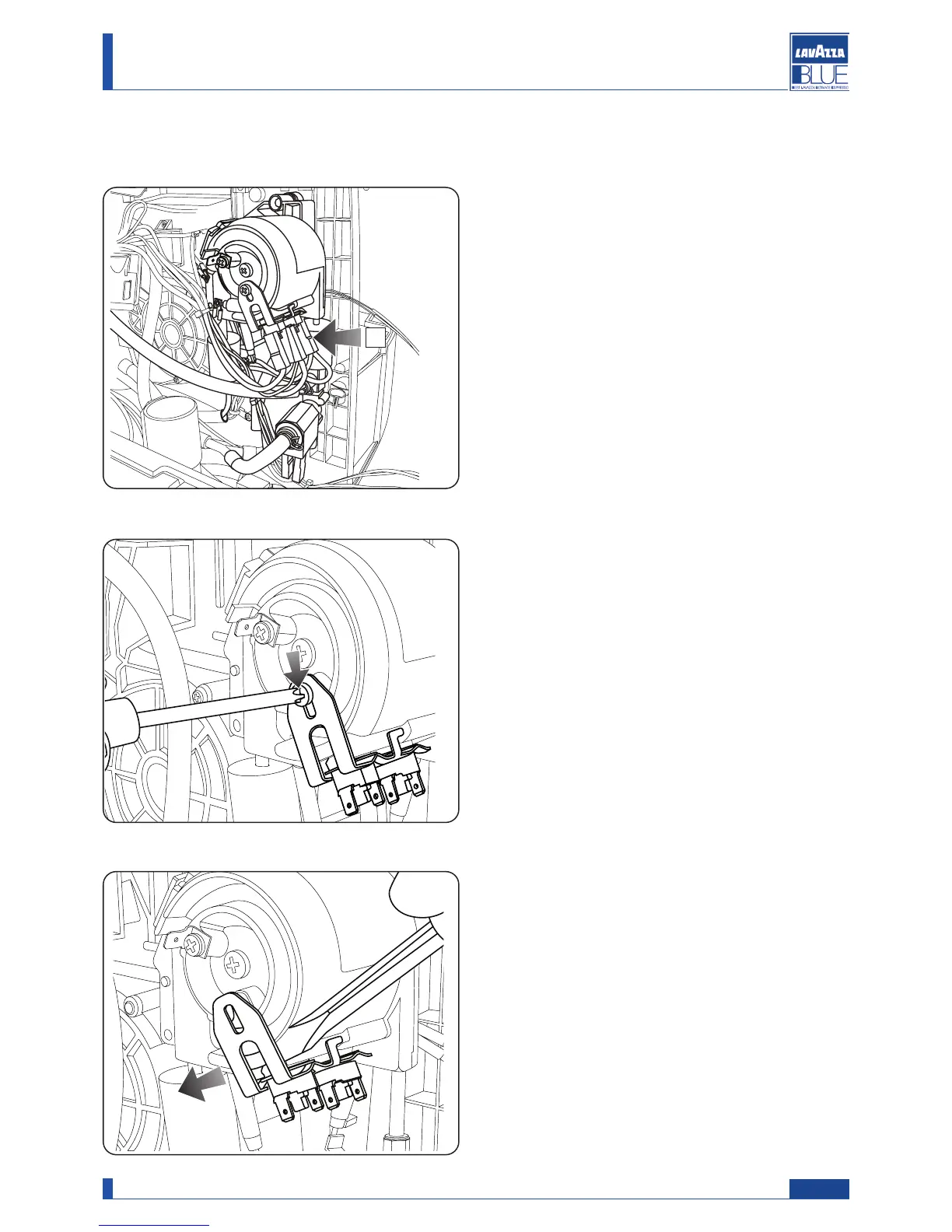

11.14. Coffee thermostat disassembly
Disconnect the electric connections of the thermostats
(A).
Loosen the indicated screw.
Lever with a screwdriver to disengage the retainer.
A
55
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
