11.4. Connector compartment

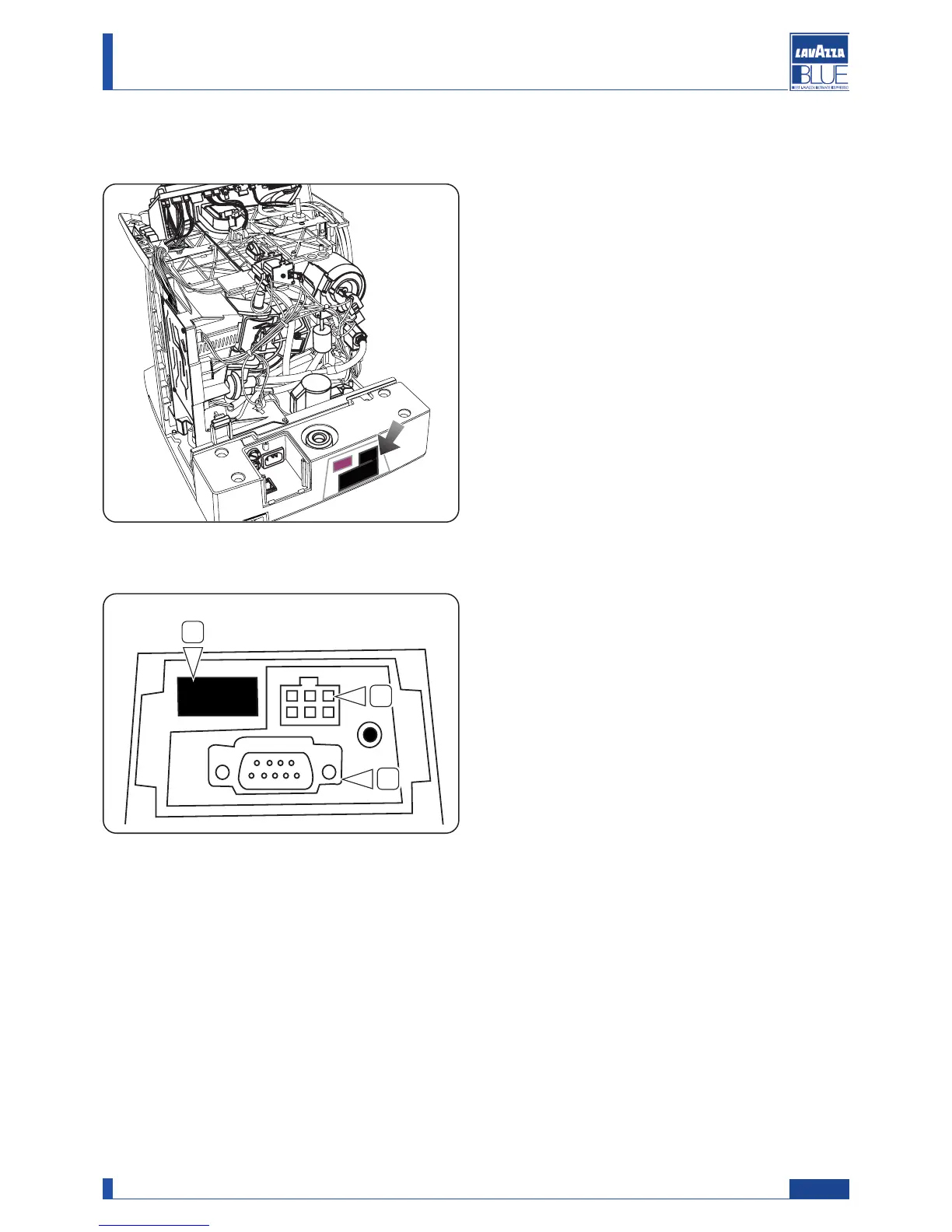

Remove the indicated screw and the black cover.
1) Infrared interface for diagnostic and reprogramming
of the machine parameters and software.
2) Connector for payment systems
3) Serial port for P.C. for reprogramming of the machine
parameters and software.
2
3
1
43
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
