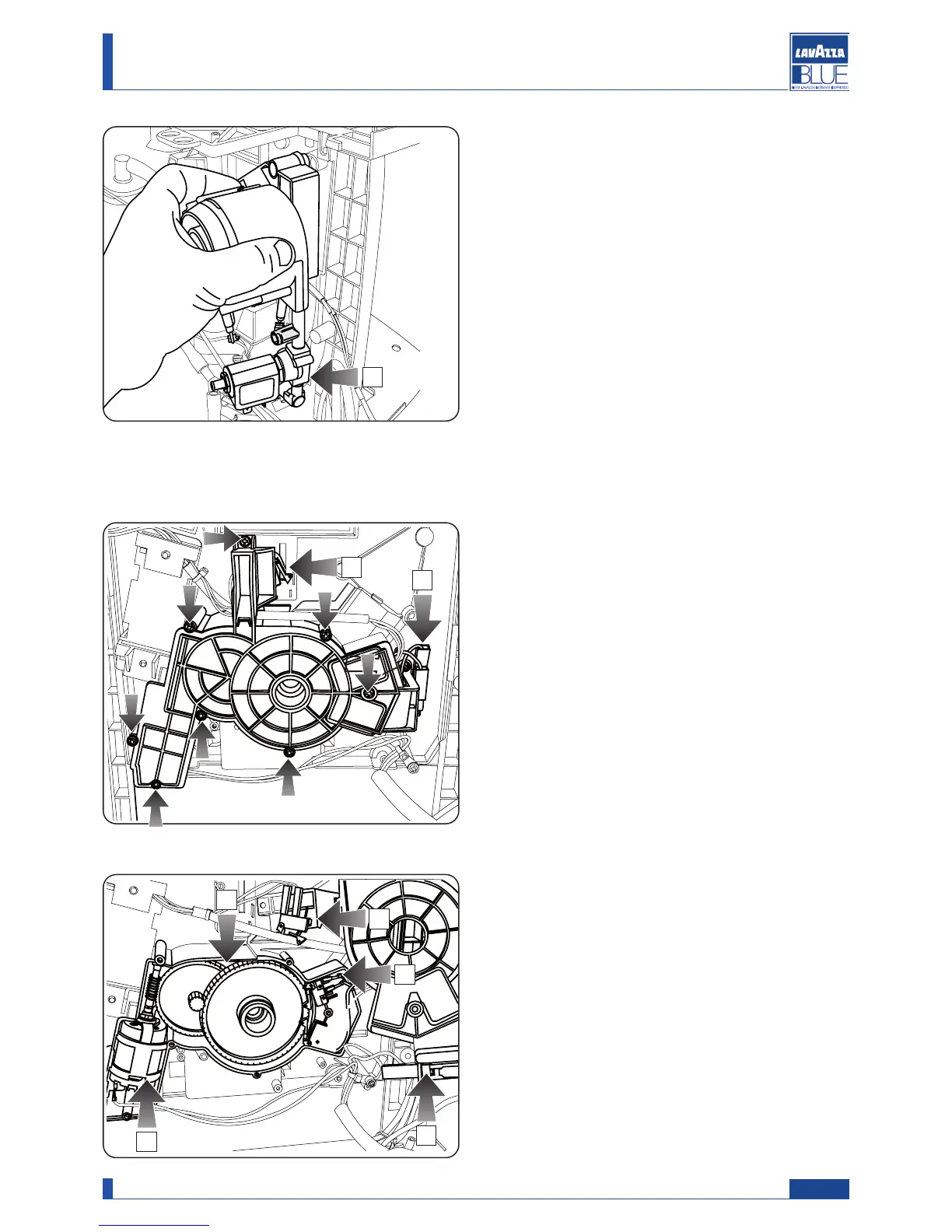

Remove the boiler and the pin from the plate.
After extracting the boiler, it is possible to disassemble
the solenoid valve (H).
H
11.16. Gear motor disassembly
It is possible to access the microswitch of the used
capsule drawer presence (X). To reach the micro-
switch of the brew unit presence (Y) the transparent
cover must be disassembled.
After loosening the screws, remove the cover; now
you can access:
1 the motor
2 the gears
3 the microswitch of the brew unit presence
4 the microswitch of the brew unit resting position
5 the microswitch of the used capsule drawer pre-
sence
Y
X
3
2
4
1
5
57
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
