LAVAZZA LB 2302 - Mounting and Disassembly of Machine Components; External Body and Tank Removal

11. MOUNTING AND DISASSEMBLY OF THE
MACHINE COMPONENTS
11.1. Upper body

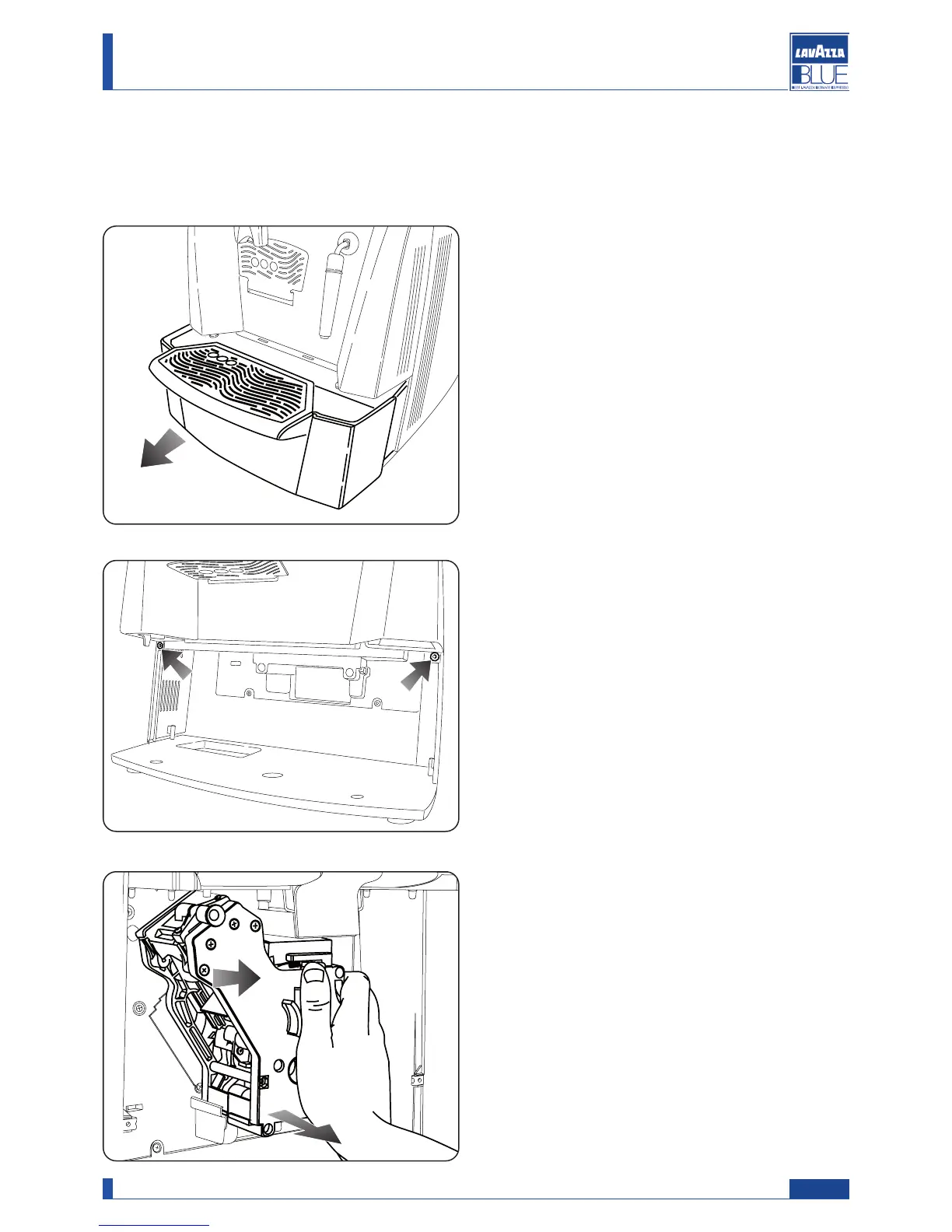

Remove the used capsule drawer; separate and
dispose of the used capsule; empty the waste water.
Loosen the indicated screws.
Press the “PUSH” button and remove the brewing unit
from its seat.
