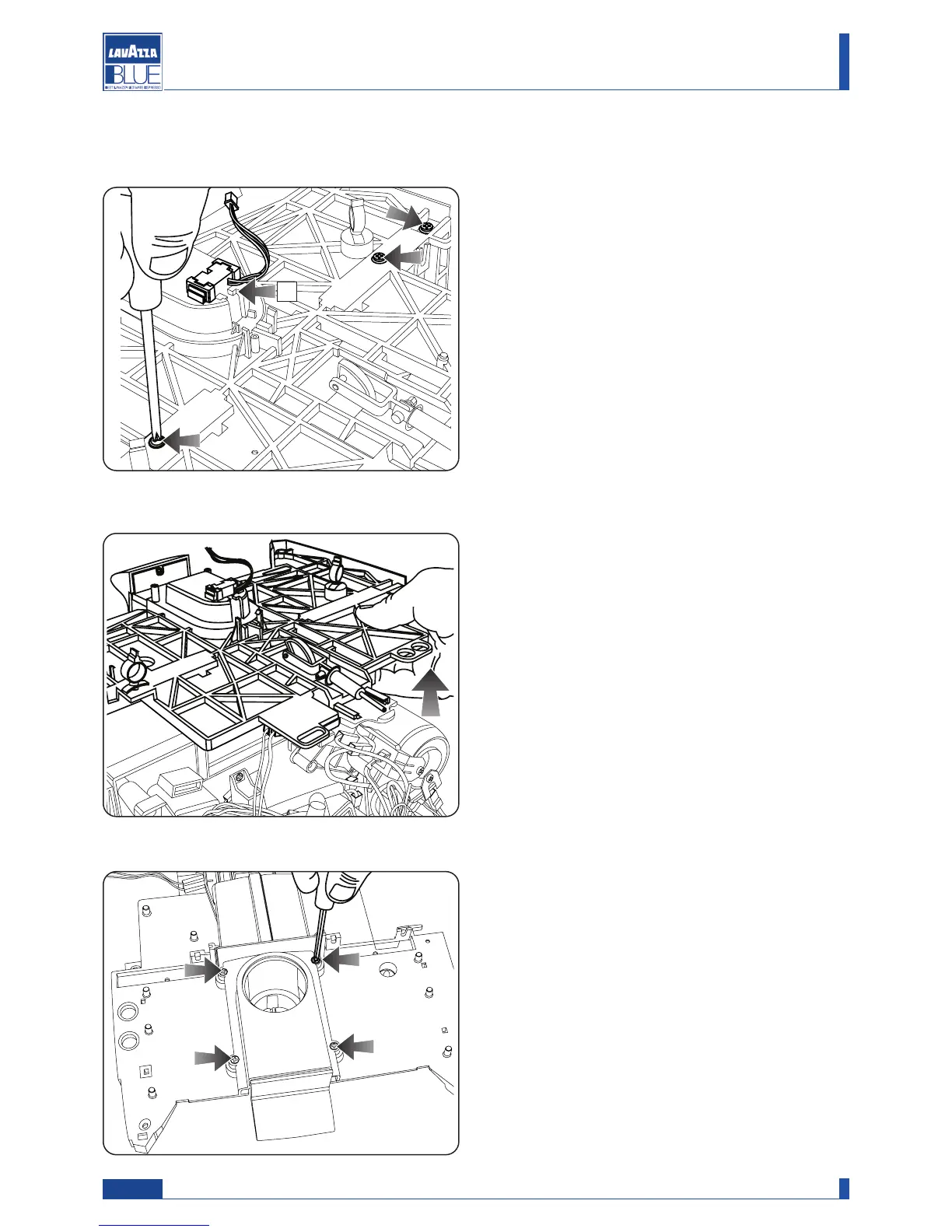

11.11. Capsule release unit disassembly
Loosen the indicated screws and remove the capsule
presence microswitch.
Remove the upper support from the base lifting it up.
Loosen the indicated screws to access the inside of
the unit.
