11.12. Capacitive sensor disassembly

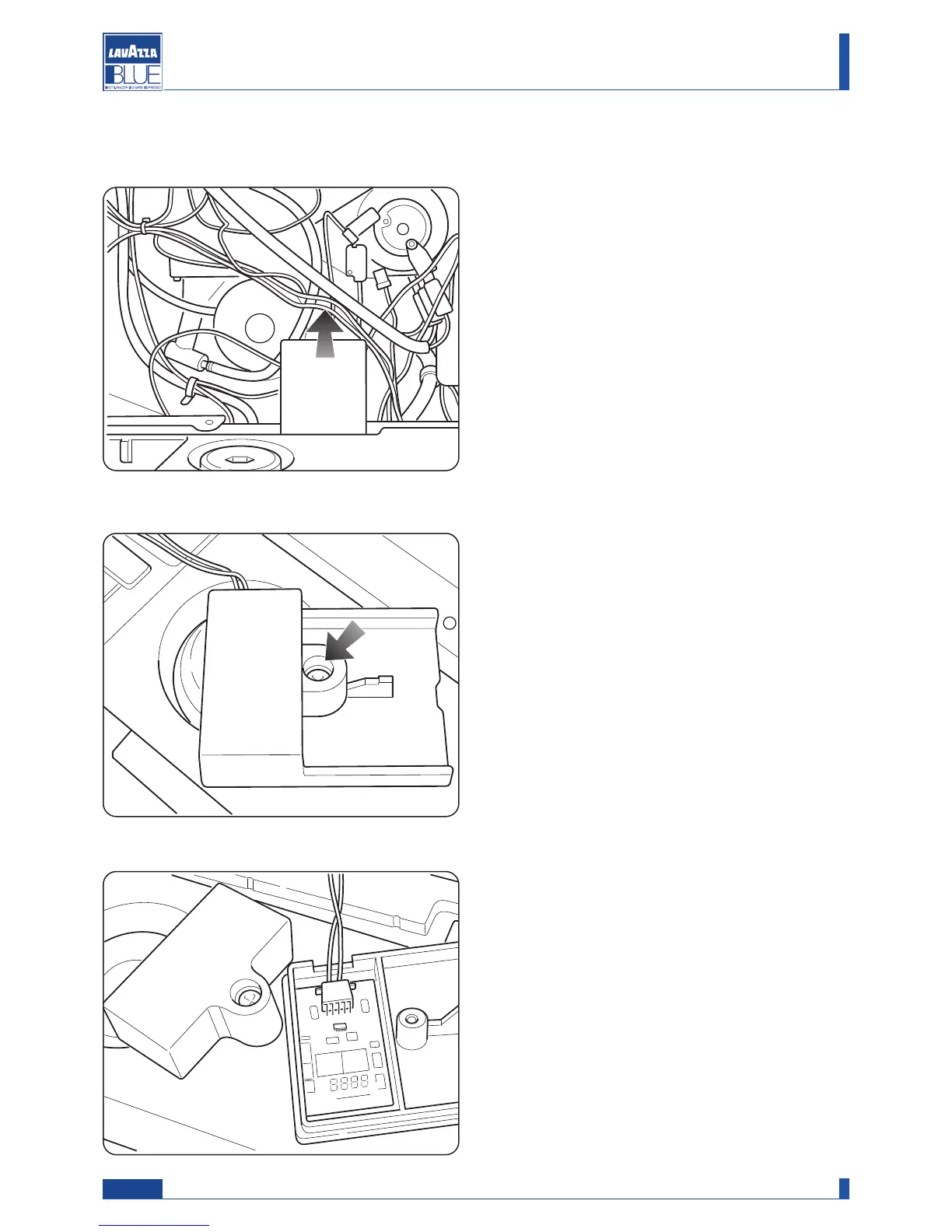

Remove the capacitive sensor from its seat.
Loosen the indicated screw to access the sensor.
The capacitive sensor is maintained in its seat by an
adhesive film.
52
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
