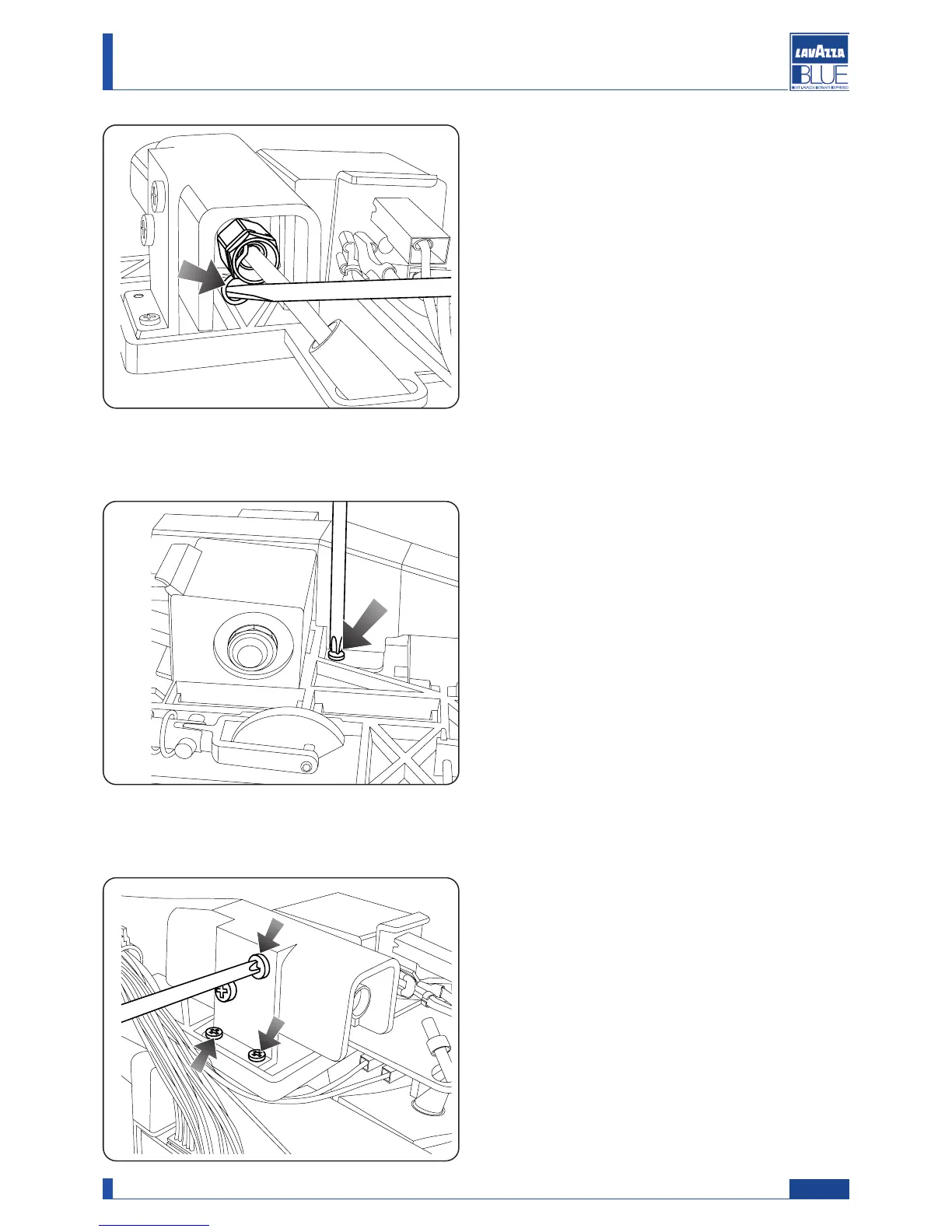

Remove the clip which fixes the pipe to the Teflon
p
iece by using a screwdriver.
Loosen the indicated screws.
Loosen the indicated screws.
45
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
