CS3E-E Series EtherCAT Closed Loop stepper drive User Manual
13

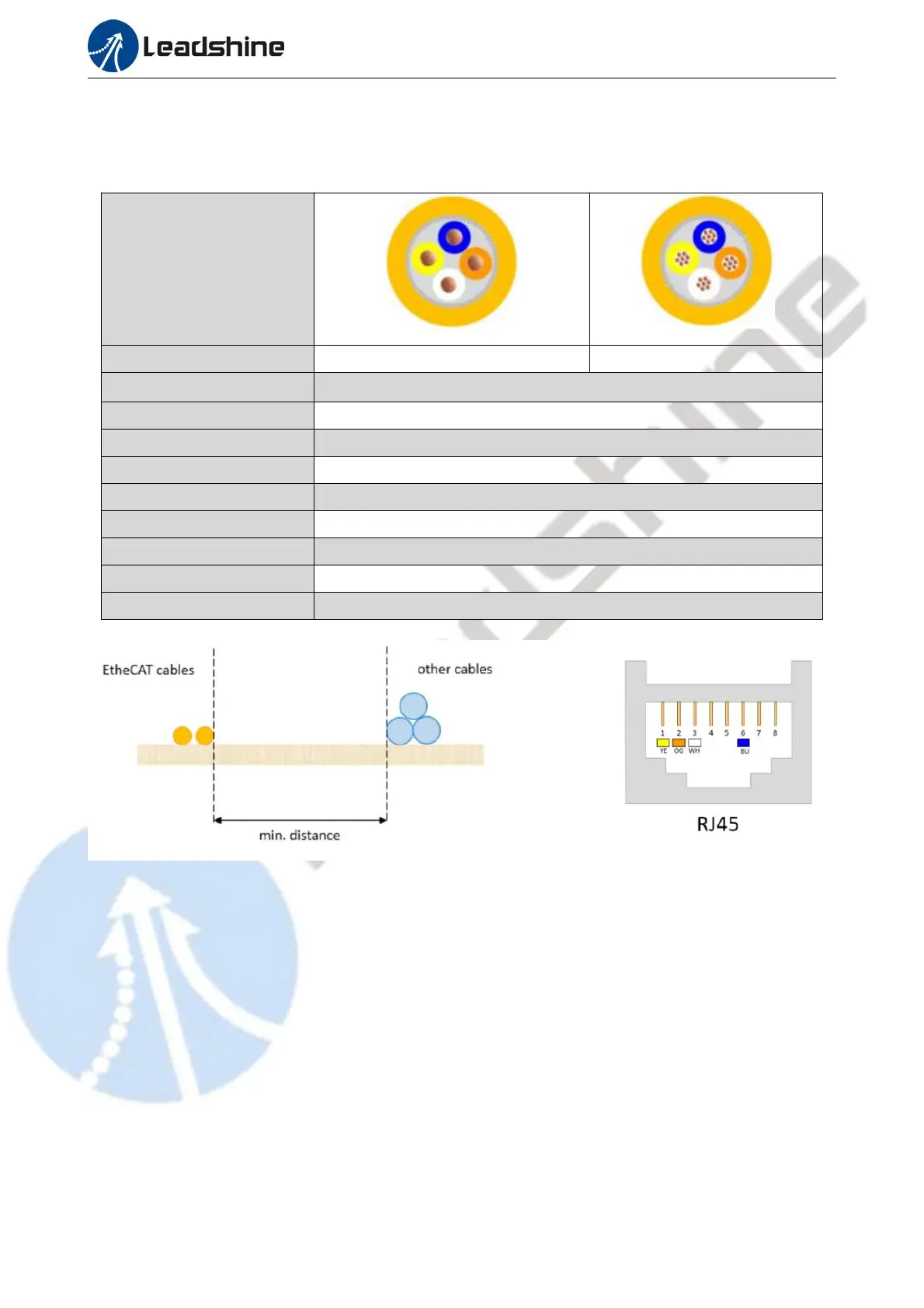

3.2.3 EtherCAT Communication Cable
Single-core cables can be used for fixed applications, while multi-core cables are recommended for flexible
applications
 Specifications
Item
Type A (Cable-fixed)
Type B (Cable Flexible)
Cross-sectional area
AWG 22/1(Single solid root)
AWG 22/7 (7x0.254mm)
Nominal/characteristic
impedance (tolerance)
100Ω (15Ω)(IEC61156-5)
Balanced or Unbalanced
Balanced
Loop resistance
≦115Ω/Km
Insulation resistance
≧500MΩ/Km
Transmission impedance
≦50mΩ/m(10MHZ)
Maximum time delay
≦550ns/100m
Time delay deviation
≦20ns/100m
Shielding
S/FTQ (Outer stranded shield/inner layer)
Temperature
≦60º
 Requirements:
(1) It is recommended to use a Category 5 Fast Ethernet cable with double shielding or better,
(2) The length between two nodes is recommended to not exceed 100 meters.
