3.3 Connectors Specifications
3.3.1 Connectors Definition

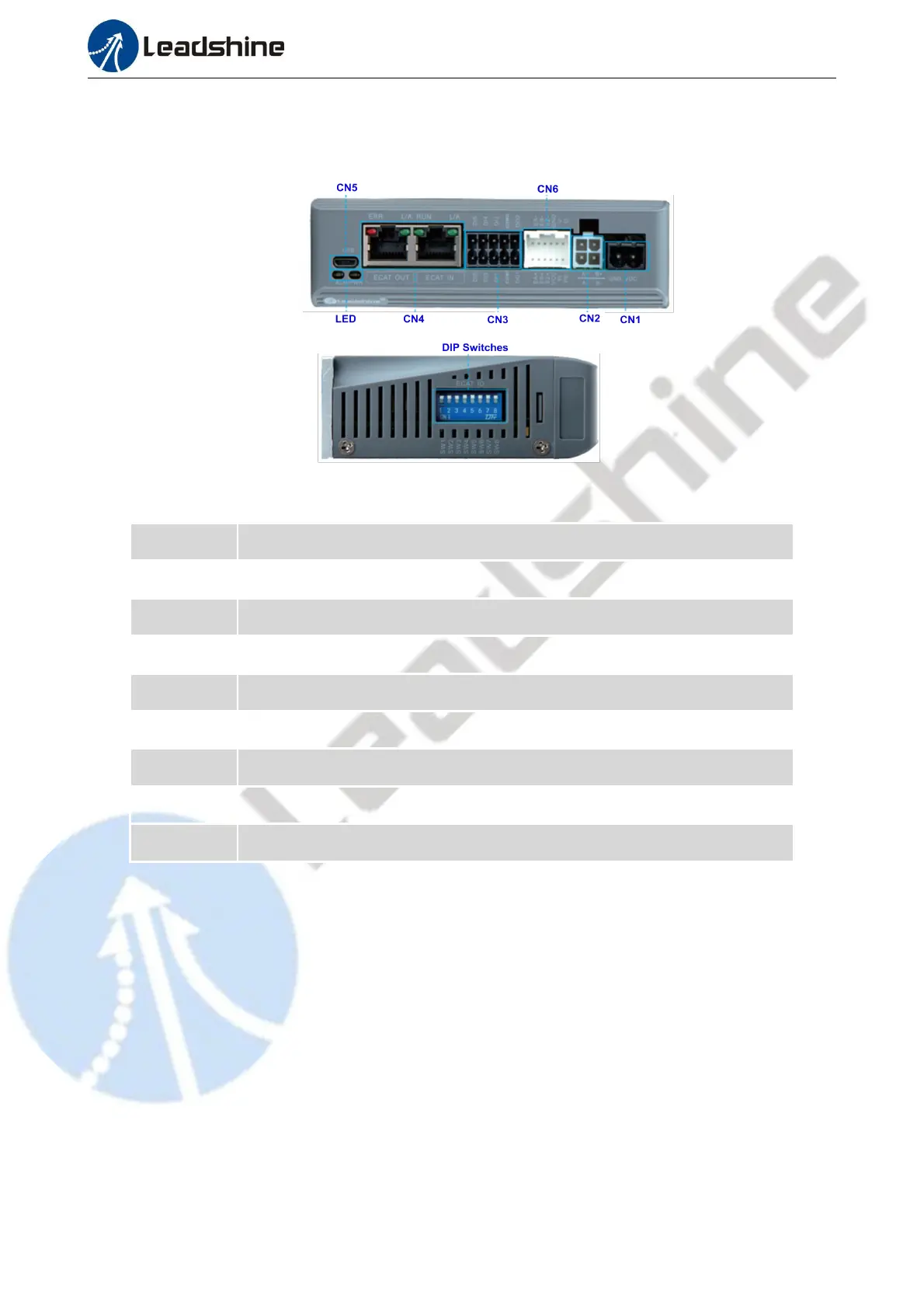

Figure 3.2: CS3E-E series connectors
Name
Description
CN1
Input power connector
CN2
Motor connector
CN3
I/O signals connector
CN4
EtherCAT communication connector
CN5
Micro-USB tuning connector
CN6
Encoder connector
LED
The LED for the drive's running status
DIP Switches
8-bits switches: SW1 - SW7 to set 0-127 Node ID,SW8 for self test
