CS3E-E Series EtherCAT Closed Loop stepper drive User Manual
55

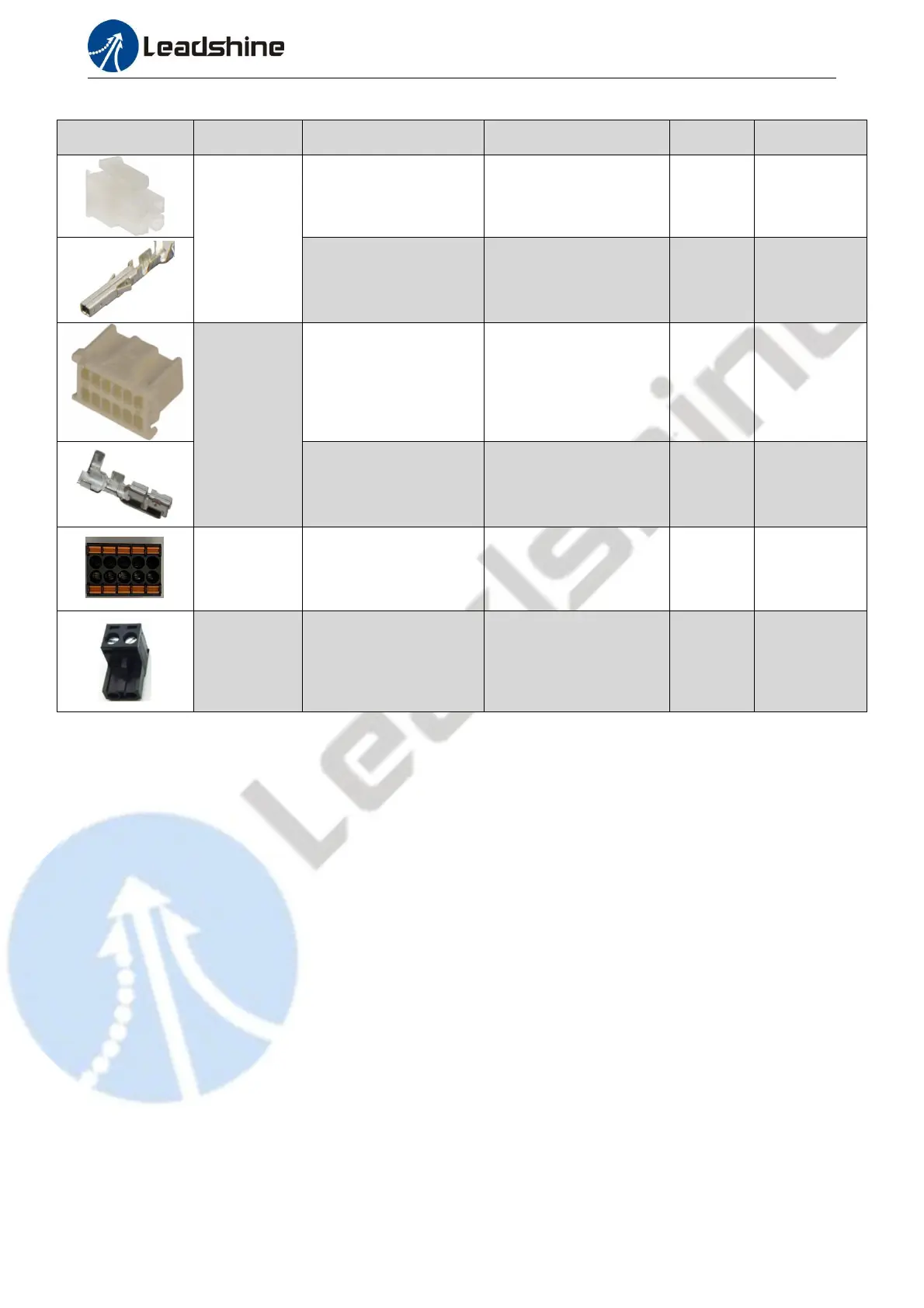

Appendix C: Connectors
Pic
Description
Brand&Specification
Model
Number
Package
Inside
Motor
Connector
MOLEX
4PIN,13A
39012040
1
No
MOLEX
39000038
4
No
Encoder
Connector
MOLEX
513531200
1
No
MOLEX
561349000
8
No
I/O
Connector
ANYTEK
2*5PIN,3.5mm
NL10100200G0G
1
Yes
Power
Connector
DEGSON
2PIN,5.0mm
2EDGK-5.0-02P-13-1000
AH
1
Yes
Note: For CS3E Series drives,motor connector and encoder connector are on the extension cable
