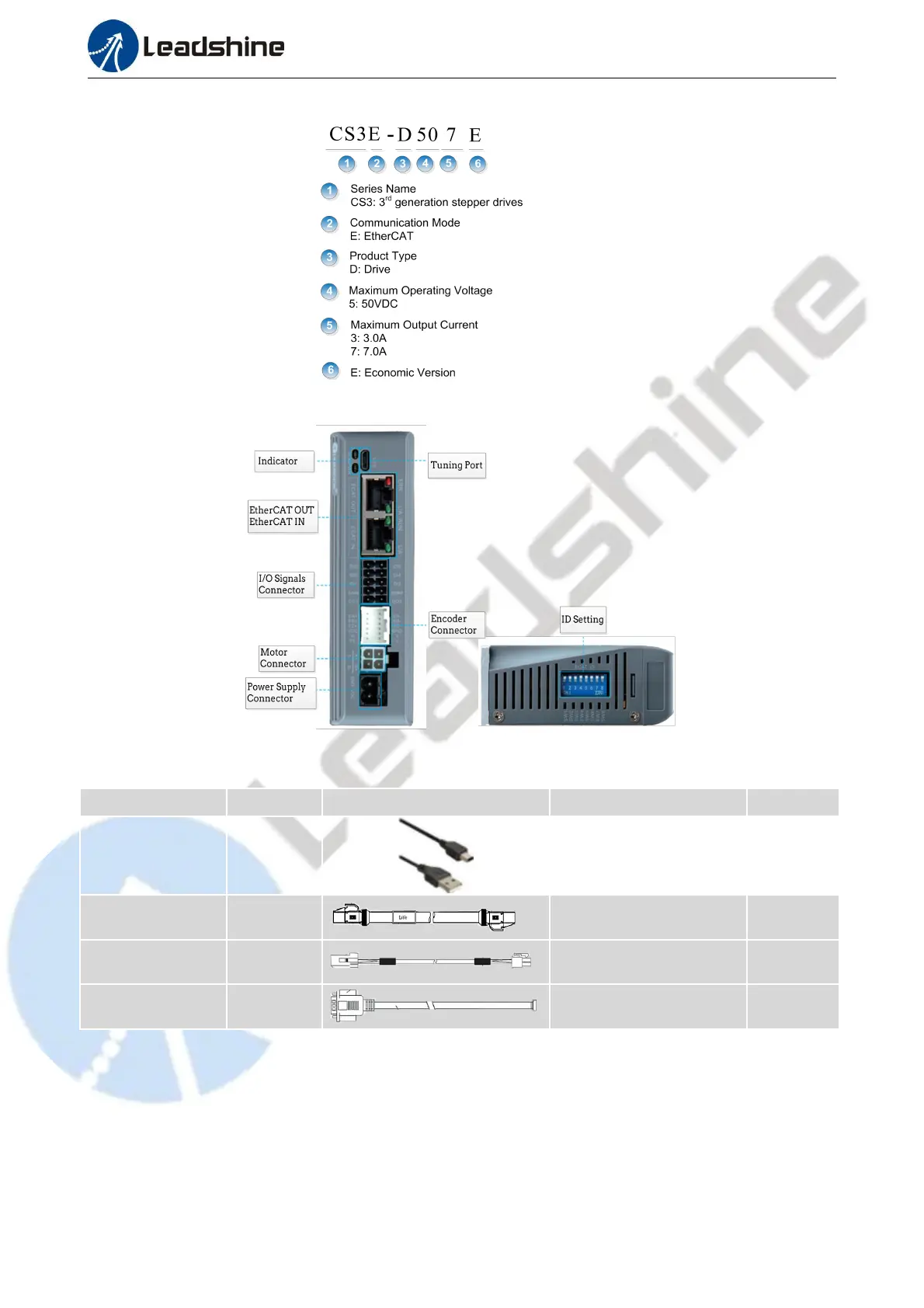

1.3.3 Part number
1.3.4 Parts description
1.3.5 Accessory Cables
Name
Necessary
Description
Model
Tuning cable
No
Micro-USB cable
CABLE-MUS
B1M5
Network cable
Yes
Optional length: 0.1m, 0.2m,
0.3m, 0.4m, 1m, 1.5m, 2m,
3m,5m,7m, 10m,15m, 20m
CABLE-TX*
M*-BUS
Motor extension cable
Yes
Option length: 1.5m ,2.2m, 3.0m,
4.0m, 5.0m, 6.0m, 7.0m, 8.0m,
10m
CABLEM-RZ
*M*
Encoder extension
cable
Yes
Optional length: 1.5m ,2.2m,
3.0m, 4.0m, 5.0m, 6.0m, 7.0m,
8.0m, 10m
CABLEM-B
M*M*
Note:
 Micro-USB cable is not necessary, it can also modify parameters by master station PC software.
 Network cable is necessary,but you can also buy shielded network cable through 3
rd
party.
 Encoder extension cable is also available with Z signal(or index signal) CABLEM- BM*M * Z , but then
the motor encoder signal must also with Z signal(or index signal)
