SMC6000 Series Motion Controller Hardware Installation Manual
20
HWMN-SMC6-R20120417
OUT1(OUT2~16)
EGND
Filter
Expansion I/O Terminal
Board ACC37-7480
ULN2803
60mA@40V

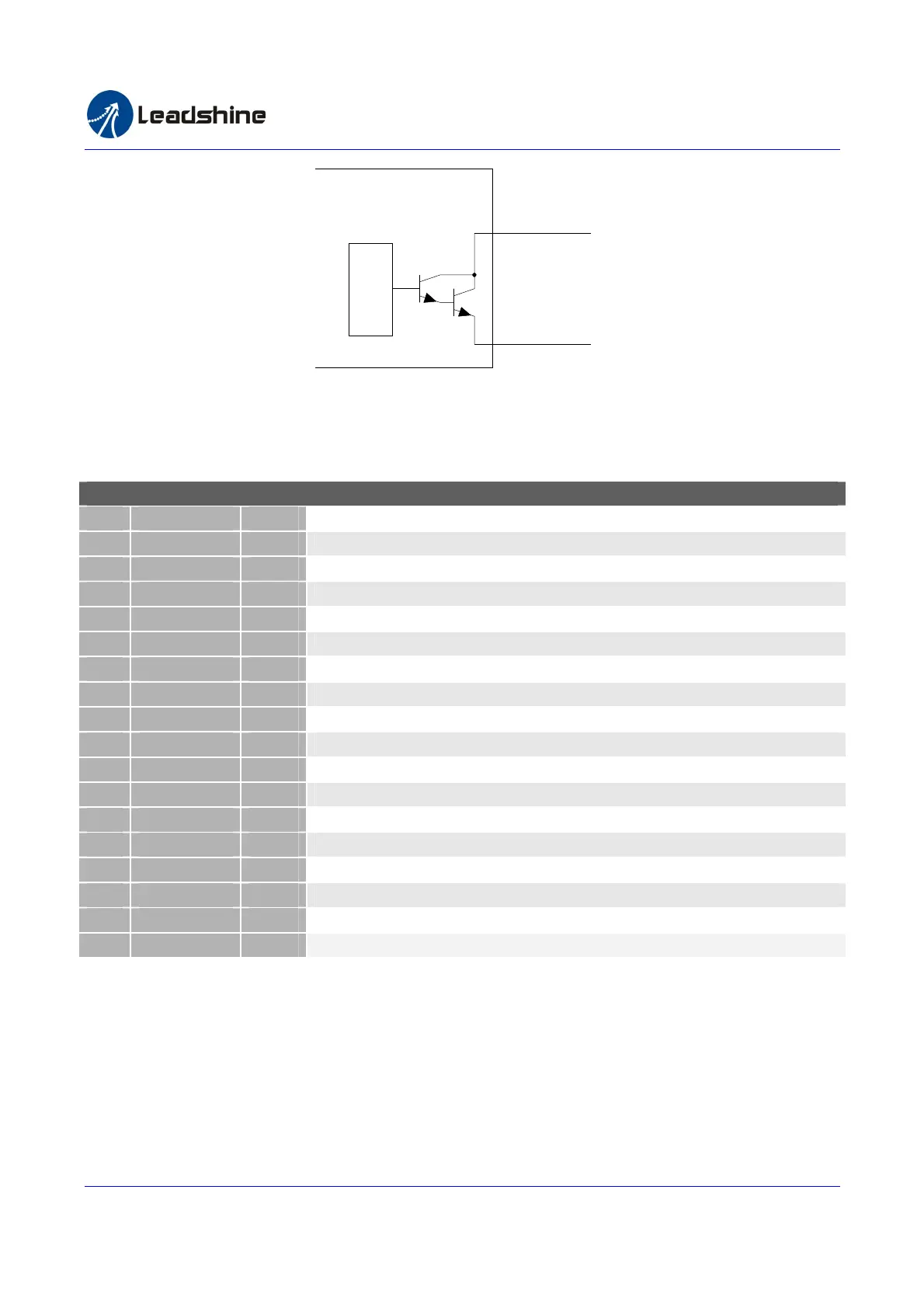

Figure 3-16: Interface circuit of OUT9-OUT24 in terminal board ACC37-7480
Table 3-2 Terminal Board ACC37-7480 General Purpose Outputs Connector J2 Pin Assignment
Pin Assignment of Connector J3 in Terminal Board ACC37-7480
1
OUT1 O Expansion General-purpose Digital Output 9
2
OUT2 O Expansion General-purpose Digital Output 10
3
OUT3 O Expansion General-purpose Digital Output 11
4
OUT4 O Expansion General-purpose Digital Output 12
5
OUT5 O Expansion General-purpose Digital Output 13
6
OUT6 O Expansion General-purpose Digital Output 14
7
OUT7 O Expansion General-purpose Digital Output 15
8
OUT8 O Expansion General-purpose Digital Output 16
9
OUT9 O Expansion General-purpose Digital Output 17
10
OUT10 O Expansion General-purpose Digital Output 18
11
OUT11 O Expansion General-purpose Digital Output 19
12
OUT12 GND Expansion General-purpose Digital Output 20
13 OUT13 GND Expansion General-purpose Digital Output 21
14
OUT14 GND Expansion General-purpose Digital Output 22
15
OUT15 GND Expansion General-purpose Digital Output 23
16
OUT16 GND Expansion General-purpose Digital Output 24
17
EGND GND External Power Ground
18
EGND GND External Power Ground
