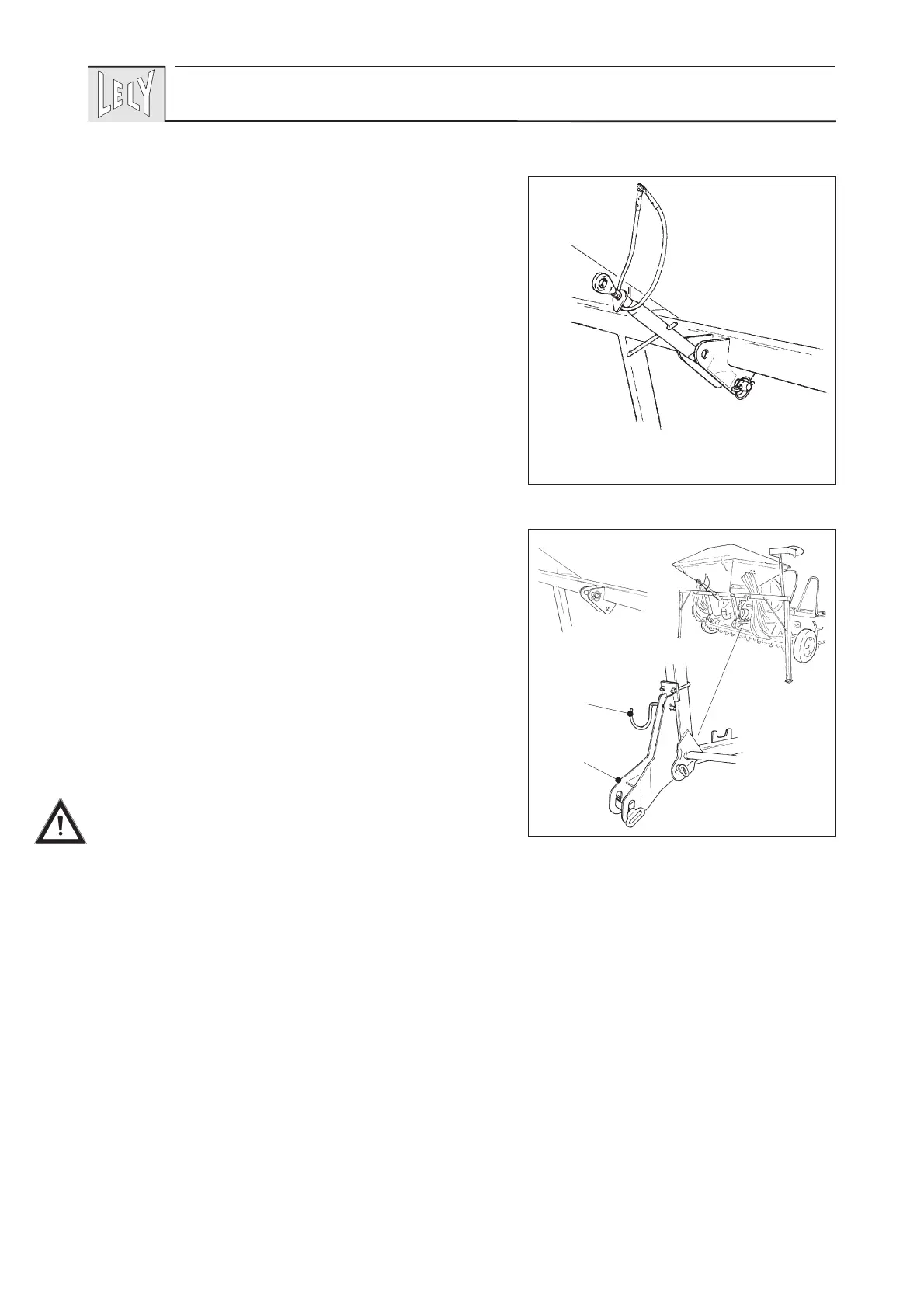

- Fit the top link by means of a top link pin in the bottom
hole (fig. C.4) of the top link plates. Place the securing
plate A on the free side.
- Place the top link in the noose attached to the hopper.
C.2
Mounting behind the tractor
For individual operations of the POLYMAT, a special solo
hitch has to be fitted.
- Remove the top link and (short) PTO shaft of the
POLYMAT (if available).
- Mount the coupling components A (fig. C.5).
- Fit the PTO shaft holder B on the LH coupling component
by means of two roll pins ø6x30.
- Mount the PTO shaft and place it on the holder.
- Fix the safety chain of the guard tube to a rigid part of the
POLYMAT.
64
C.5
C.4
A
B
Supplement C
