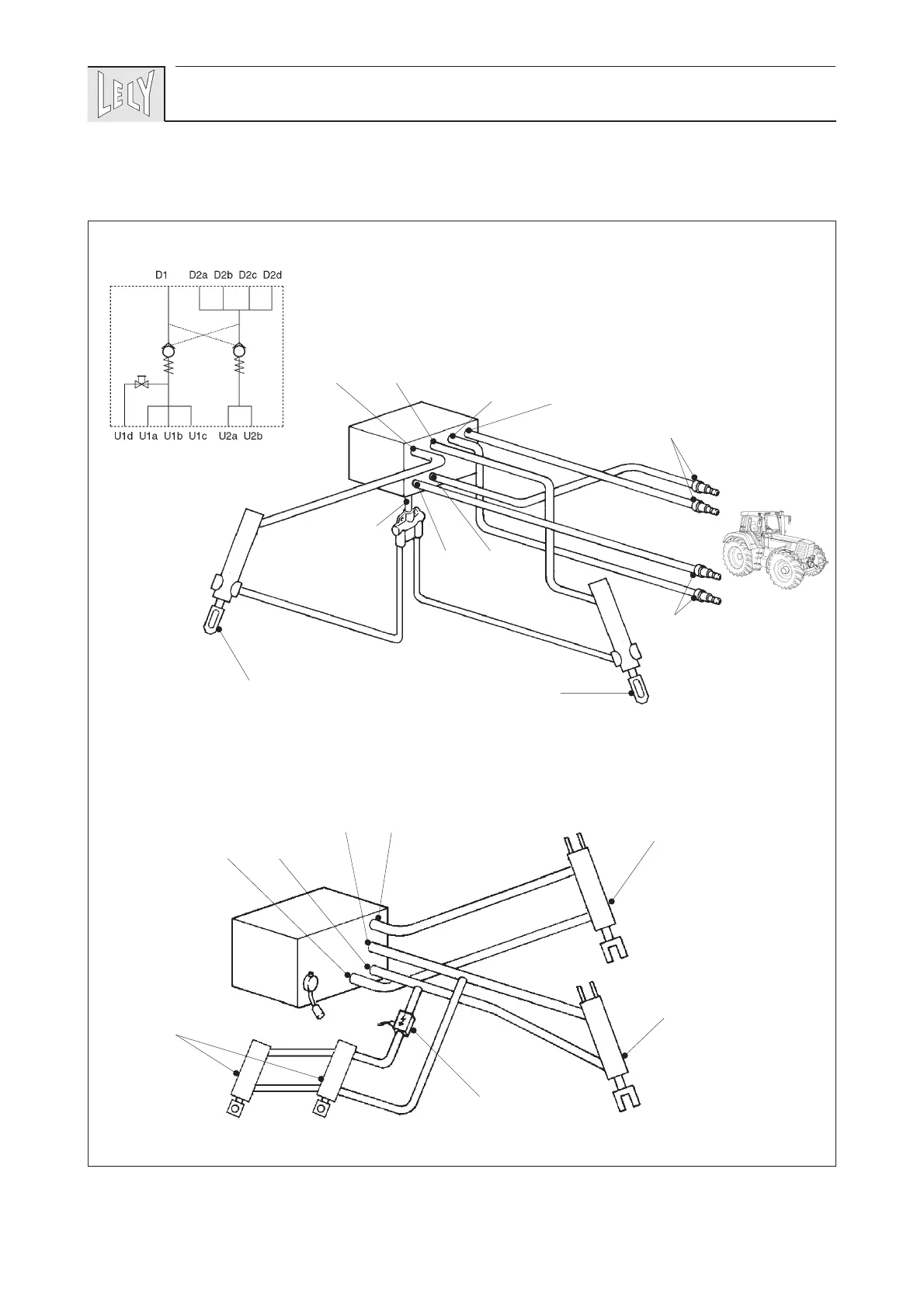

D HYDRAULIC DIAGRAM
65
D2d D2c D2b
(blue)
D2a
(white)
U1d
U1c
(blue)
D1
(white)
linker markeur
rechter markeur
U1b U1a
U2a U2b
pre-emerge marker
electric valve
POLYMAT 400
coulter beam (RH)
POLYMAT 300 / 400
coulter beam (LH)
white
blue
Supplement D
