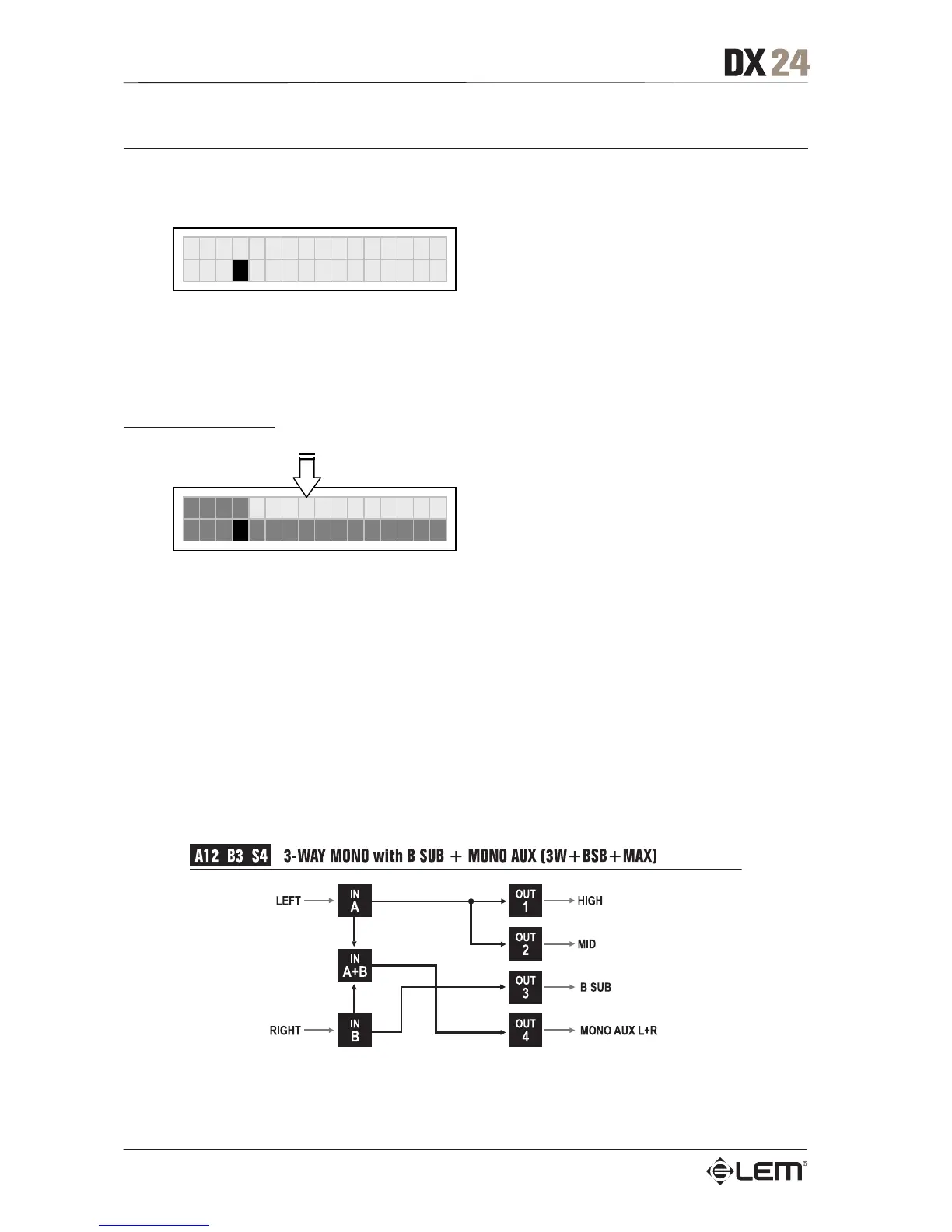

Display information in default conditions
In default conditions, i.e. when none of the menu LED’s is lit, so no type of editing is enabled, the
display shows the main information on the PRESET currently stored in the memory:
A13 B24
2U 2x2W
There are various information areas:
System configuration
A12B3S4
4U 3W+BSB+MAX
System configuration
The bold letters indicate the inputs:
A = Input A
B = Input B
S = SUM (sum of inputs A and B)
Numbers 1, 2, 3 and 4 indicate the respective outputs.
In the example:
The signal connected to Input A is assigned to outputs 1 and 2.
The signal connected to Input B is assigned to output 3.
The Sum of the signal on inputs A and B is assigned to output 4.
The system is therefore configured as shown in the following diagram.
