LEM DX 24 - Connection Examples and Wiring; Balanced XLR Input Wiring; Balanced XLR Output Wiring; MIDI Cable Connection

49
Connections

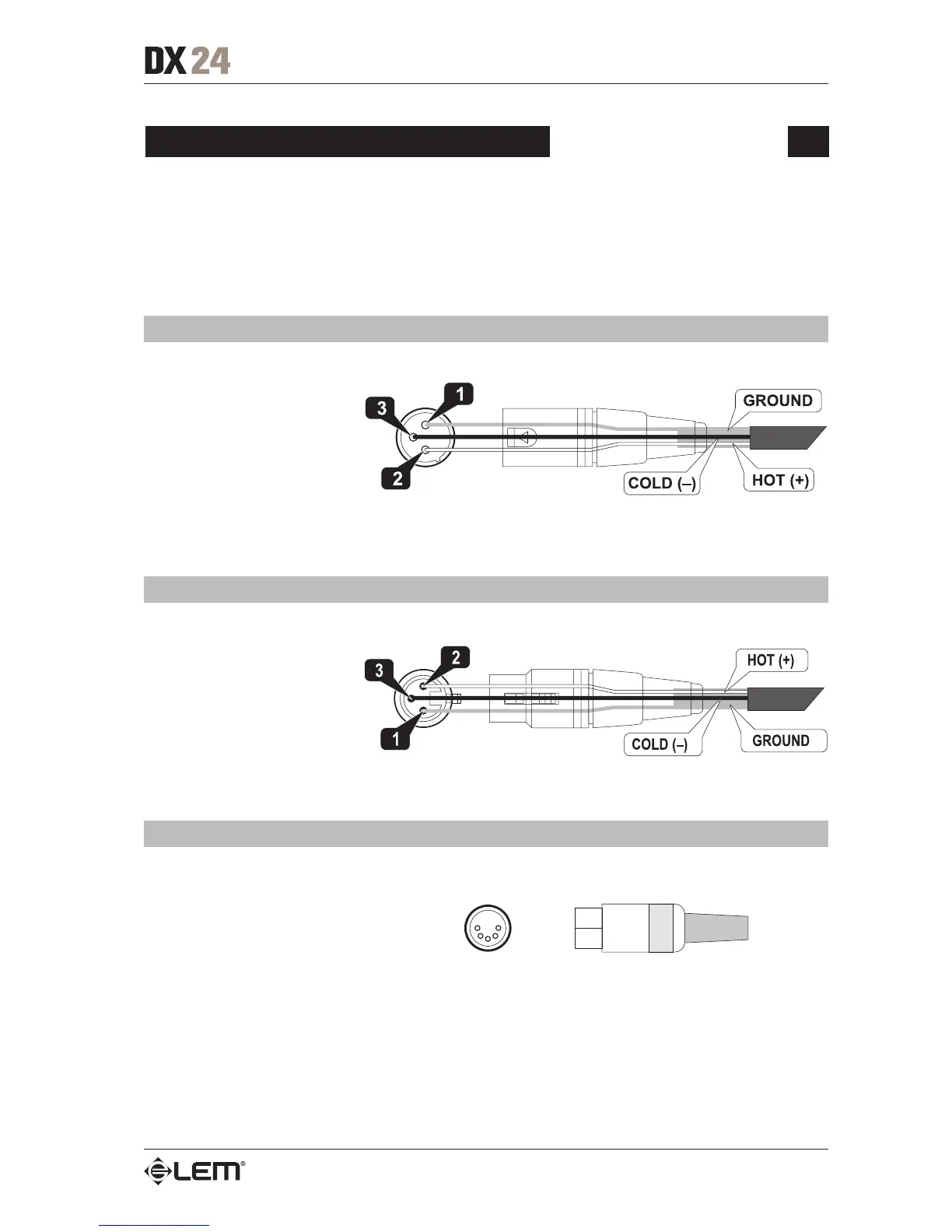

The following diagrams show the schemes of the recommended cables and some connection examples
referred to various system configurations.
A & B Inputs
BALANCED XLR-M
1÷4 Outputs
BALANCED XLR-F
MIDI IN / OUT / THRU
MIDI standard cable
