Coupling and uncoupling
41

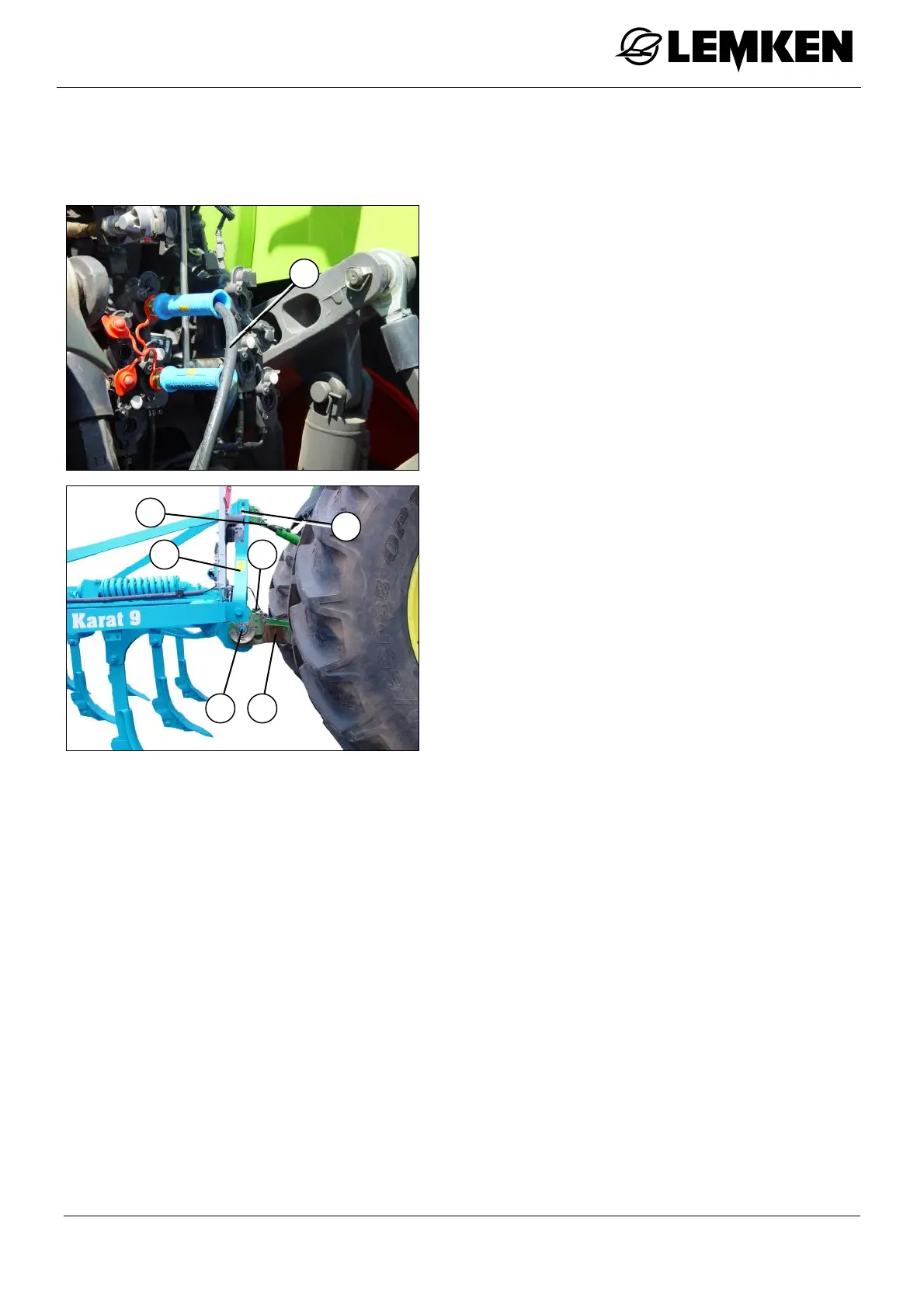

7.2 Uncoupling
Lower the implement before uncoupling.
To depressurise the hydraulic hoses,
move the actuation levers for the control
units to the "float position".
Actuate the hydraulic system of the trac-
tor until the top link pin (7) is relieved.
Release the top link pin (7) and remove
it.
Remove the top link (5) from the three-
point tower (6) and position it in the des-
ignated holder on the tractor.
Release the safety equipment (4) and
remove the lower links (2) from the pint-
les of the draw rail (3).
(See also operating instructions from tractor manufacturer).
Drive approx. 20-30 cm away from the device and secure the tractor to prevent
it from rolling away.
Detach the electric cables.
Disconnect the hydraulic hoses (1) and push on the protective caps.
Carefully drive the tractor away from the implement.
