9.6 Share position
The share position and the pitch angle of
the tines (1) can be altered. A “flat” share
position in conjunction with wing shares
ensures a flat tillage horizon (share tip and
wing shares work at almost the same
depth) and reduces traction requirement,
even in heavy soils.
A “steep” share position ensures that the
tines (1) penetrate well even in hard and
dry soils.

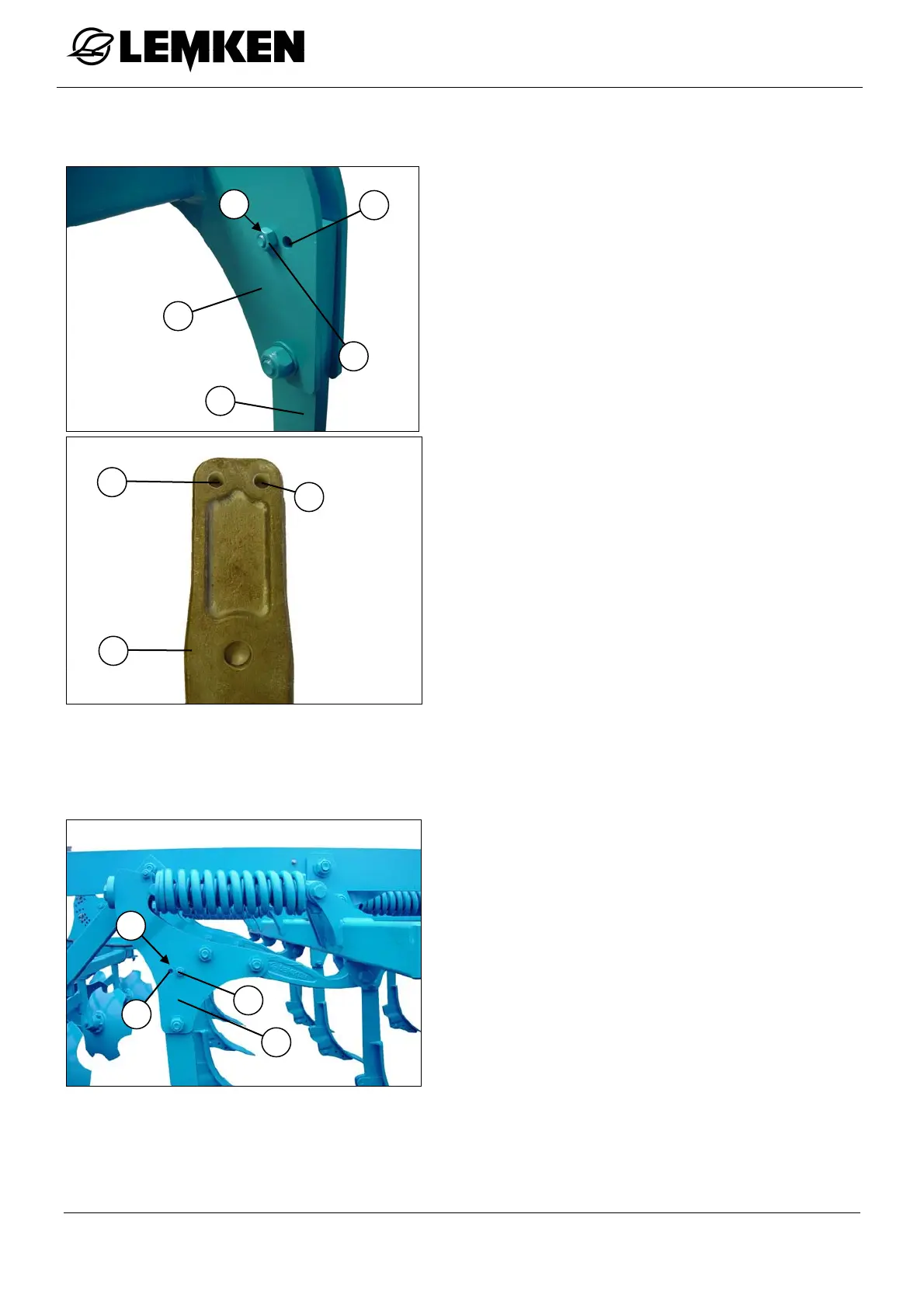

The share position is altered by inserting
the shear bolt (2) in a different position.
Flat share position = insert shear bolt
through the bore (4) of the tine pocket (3)
and the bore (5) of the tine (1).
Steep share position = insert shear bolt through the bore (6) of the tine pocket (3)
and the bore (7) of the tine (1).
 Lift out the mounted device by several centimetres.
 Loosen and remove nut from the shear
bolt (2). Press out the shear bolt with a
suitable tool.
 Swivel the tine into the required position.
 Insert the shear bolt as required into
bore A or B of the tine pocket (3).
 Screw the nut on.
 Tighten the nut.
